The T80II runs an 8" driver and 1" tweeter housed in a closed-back cabinet. This feature-rich amplifier is equipped with two channels, one for guitar and one for microphones. A full four-band EQ on both inputs affords extensive tonal flexibility along with the added enhancement of a Reverb control on each channel. The guitar channel is equipped with on-board chorus, and the effects are controllable via an optional footswitch. An auxiliary input serves as a valuable feature for practice situations, and a balanced XLR line out makes the T80II the ideal on-stage performance partner.
- 80W @4Ω
- 1" Dome Tweeter, 8" Woofer
- Instrument Channel:Bass, Low-Mid, High-Mid, Treble, Volume Microphone Channel:Bass, Low-Mid, High-Mid, Treble, Volume Footswitchable FXs:Instrument Chorus Speed with On/Off Switch,Instrument Reverb and Microphone Reverb with On/Off Switch Aux:Volume Master:Volume, Phase Switch
- 1/4" Instrument Input, XLR Microphone Input, FX Loop for Each Channel, Aux Input, Line Out, D.I. Out
- Closed Back
- size (mm)
- 287mm(W) x 295mm(D) x 391mm(H)
The instrument EQ controls are located upper half of the control panel. From left to right they are; bass, low mids, high mids, treble, volume, reverb, chorus, and master volume. The Microphone EQ controls are located lower half of the control panel. From left to right they are; bass, low mids, high mids, treble, volume and reverb. Next to these knobs are the chorus, reverb and phase switches. There is an auxiliary input jack with an input volume knob to the right of these switches. At the far right of the control panel is the power indicator LED.

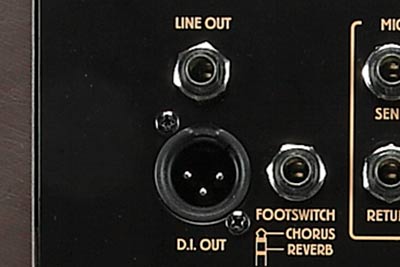

1/4" Line out (topside) and XLR D.I out (bottom side)

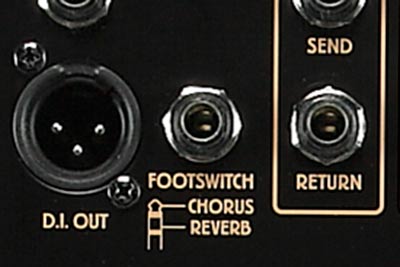

Instrument Chorus on/off, Instrument and Microphone Reverb on/off

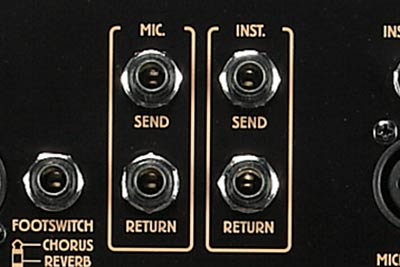

Each channel of Microphone (left) and Instrument (right) has independent Send (topside) and Return jack (bottom side) for FX loop.

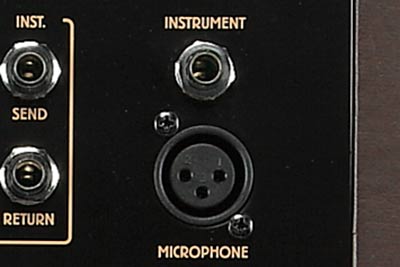

1/4" Instrument input (topside) and XLR Microphone input (bottom side).
