- neck type
- SRSC6 5pc Maple/PurpleheartNeck-through
- Poplar Burl topOkoume wing body
- Purpleheart fretboardAvalon oval inlay
- Medium frets
- number of frets
- MR5 bridge
- string space
- neck pickup
- Bartolini® BH2 neck pickupPassive
- bridge pickup
- Bartolini® BH2 bridge pickupPassive
- Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
- factory tuning
- D'Addario® EXL170-5 + 0.32
- string gauge
- hardware color
- Scale :
- a : Width
- 54mm at NUT
- b : Width
- 89mm at 24F
- c : Thickness
- 20.5mm at 1F
- d : Thickness
- 22.5mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 800Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.
- Recommended Case

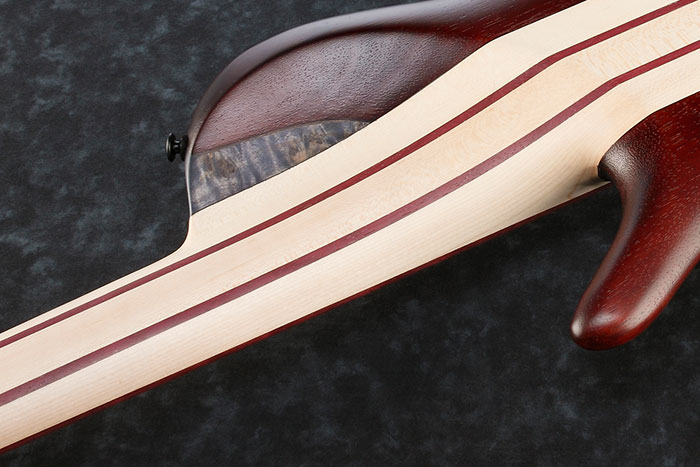

5pc Maple/Purpleheart Neck-Through Design
The combination of Maple/Purpleheart is as musical and it is durable. These two extremely dense materials offer the foundation of great sustain.
Sculpted for comfort and easy access to the upper frets, the smooth graceful contour allows the palm of the left hand to move quickly and easily as it transitions up and down the neck.
Purpleheart fretboard w/Abalone oval inlay
Purpleheart produces a rich mid range with a crisp high end.
Bartolini® BH2 pickups
The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.
The Mono-Rail V is the ultimate bridge for bass string isolation. Each bridge is independently and securely locked down to the body for maximum vibration transfer without interference.
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.
