M8M

SPEC

  • SPEC

    • neck type
    • M8M 5pc Maple/JatobaNeck-through
    • top/back/body
    • Alder wing body
    • fretboard
    • Rosewood fretboard
    • fret
    • Jumbo fretsPrestige fret edge treatment
    • number of frets
    • 24
    • bridge
    • FX Edge III-8 bridge
    • string space
    • 10.8mm
    • bridge pickup
    • Lundgren Model M8 (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1D#,2A#,3F#,4C#,5G#,6D#,7A#,8F
    • string gauge
    • .009/.011/.016/.026/.036/.046/.052/.070
    • hardware color
    • Black
  • NECK DIMENSIONS

      • Scale :
      • 747mm/29.4"
      • a : Width
      • 55mm at NUT
      • b : Width
      • 80mm at 24F
      • c : Thickness
      • 19.5mm at 1F
      • d : Thickness
      • 21.5mm at 12F
      • Radius :
      • 400mmR
  • CONTROLS

  • OTHERS

    • Sperzel machine heads
    • Hardshell case included

Features

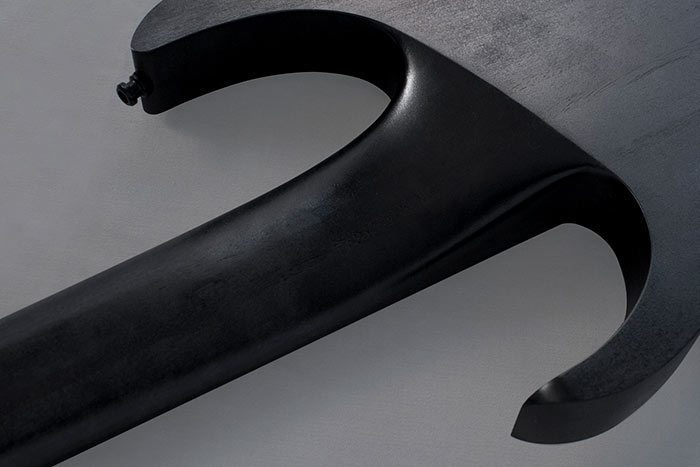

M8M 5pc Maple/Jatoba neck-through

Coupling Maple with Jatoba produces a strong and stable neck which features a quick response.
Alder wing neck though body enhances defined tone even in down tuning with great accessibility to high position.

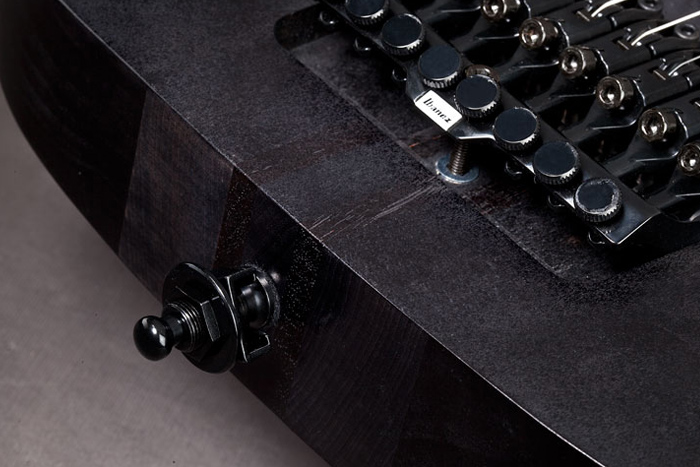

Schaller Security Locks

Indestructible Schaller Security Locks, even under the toughest conditions on stage.

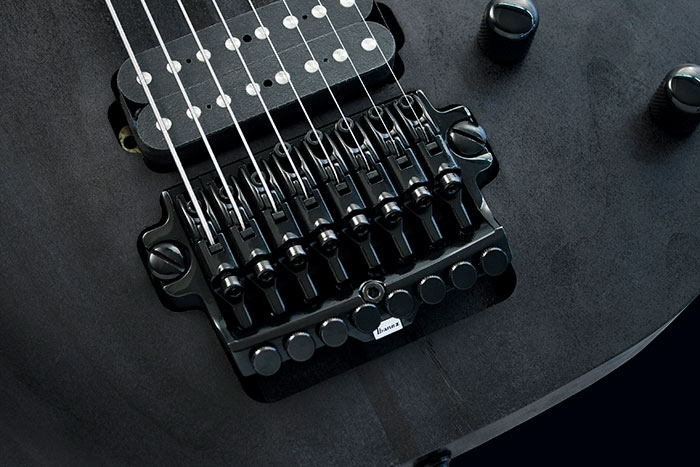

FX Edge III-8 Bridge

The FX Edge III-8 bridge combines fixed bridge sustain and double-locking tuning stability.

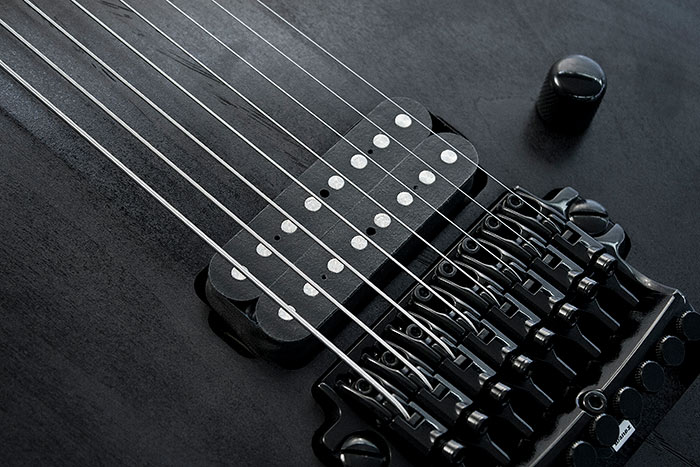

Lundgren Model M8 Pickup

Lundgren Model M8 delivers a well defined tone even in playing with high gain setting amplifier.

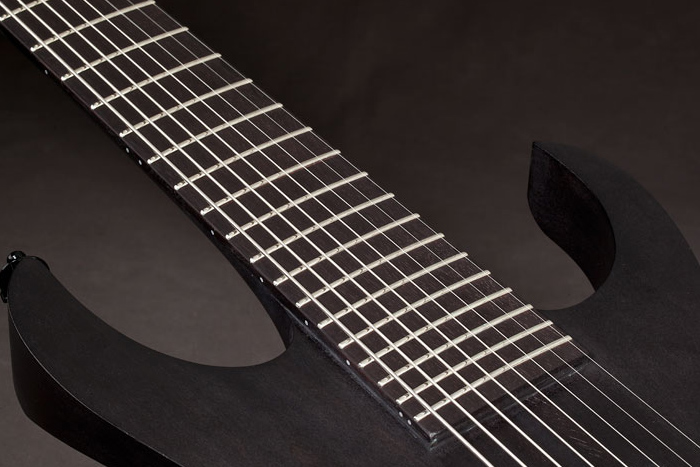

Extra Long Scale Neck (29.4 -inch)

29.4-inch extra long scale neck with pre-set down tuning emits a tight sound all the way down to the lowest note without ever losing playability.
