LGB30-NT
LGB30-VYS
  • NT : Natural
  • VYS : Vintage Yellow Sunburst
  • COLOR VARIATION:
SHARE:
GB

SPEC

  • SPECS

    • neck type
    • LGB303pc Nyatoh/Mapleset-in neck
    • top/back/side
    • Spruce top Flamed Maple backFlamed Maple sides
    • fretboard
    • Bound Ebony fretboardAcrylic & Abalone block inlay
    • fret
    • Medium fretsArtstar fret edge treatment
    • number of frets
    • 20
    • bridge
    • Gibraltar Artist bridge
    • string space
    • 10.5mm
    • tailpiece
    • LGB30 tailpiece
    • neck pickup
    • Super 58 (H) neck pickupPassive/Alnico
    • bridge pickup
    • Super 58 (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • string gauge
    • .011/.015/.022w/.030/.040/.050
    • nut
    • Bone nut
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 628mm/24.7"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 56.3mm at 20F
      • c : Thickness
      • 20mm at 1F
      • d : Thickness
      • 22mm at 9F
      • Radius :
      • 305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
      • 19 1/2"
      • b : Width
      • 15 3/4"
      • c : Max Depth
      • 3 5/8"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • SWITCHING SYSTEM

    LGB30's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    LGB30's control diagram

    DESCRIPTION

    There are two knobs located along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob. The pickup selector is located above the neck pickup.

  • OTHER FEATURES

    • Hardshell case included

Features

Gibraltar Artist bridge

Gibraltar Artist bridge

The Gibraltar Artist bridge, made of a light weight Aluminum bridge frame and Zinc saddles, provides natural tone, rich sustain and tuning stability. The low positioned saddles promise comfortable playability.

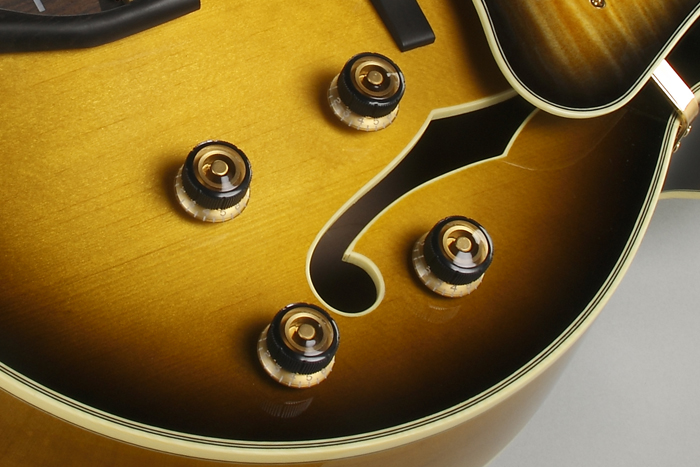

Sure Grip Knobs

Sure Grip Knobs

The Sure Grip III knobs are designed for precise control with nonslip functionality, along with smooth and classic looks.

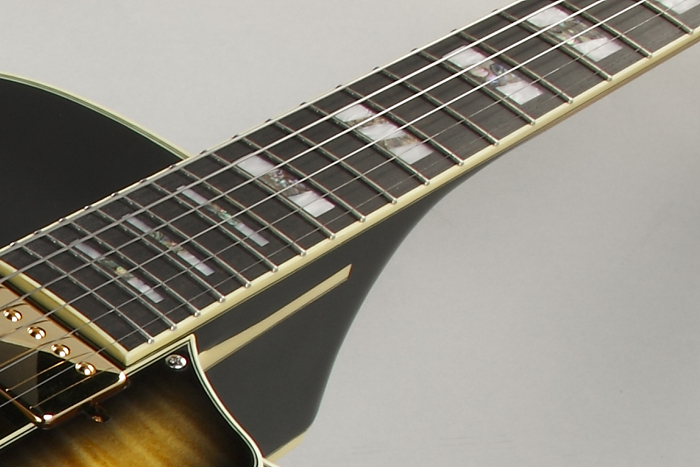

Ebony Fretboard w/ Artstar Fret Edge Treatment

Ebony Fretboard w/Artstar Fret Edge Treatment

Ebony produces a tight low end and mid-range with a defined high end attack. It also delivers quick response and rich sustain.

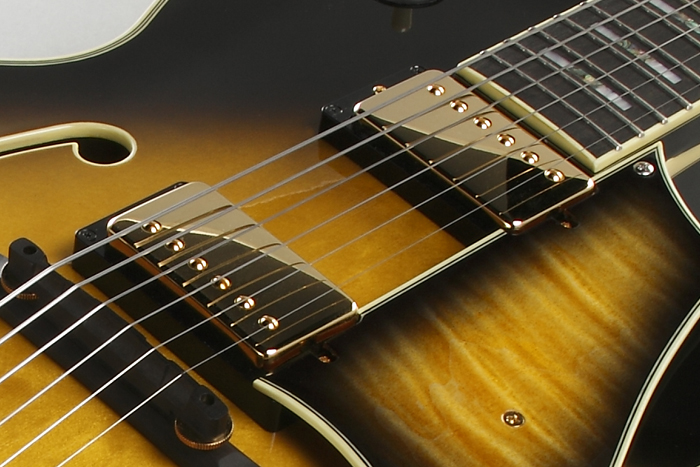

Super 58 Pickups

Super 58 Pickups

The Super 58 pickups deliver smooth, nuanced tones along with a crisp, biting growl.
