LGB300-VYS
  • VYS : Vintage Yellow Sunburst
  • COLOR VARIATION:
SHARE:
GB

SPEC

  • SPECS

    • neck type
      LGB3pc Mapleset-in neck
    • top/back/side
      Spruce top Maple backMaple sides
    • fretboard
      Bound EbonyAcrylic & Abalone block inlay
    • fret
      Medium fretsPrestige fret edge treatment
    • number of frets
      22
    • bridge
      Ebony bridge
    • string space
      10.4mm

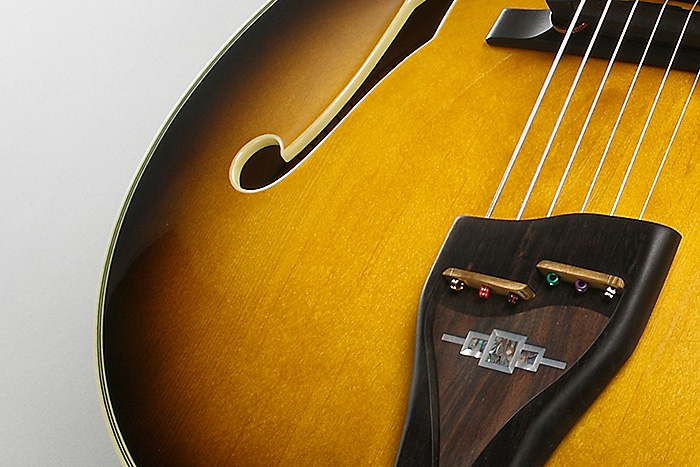

    • tailpiece
      LGB300 tailpiece
    • neck pickup
      Super 58 (H) neck pickupPassive/Alnico
    • bridge pickup
      Super 58 (H) bridge pickupPassive/Alnico
    • factory tuning
      1E, 2B, 3G, 4D, 5A, 6E
    • string gauge
      .011/.015/.022w/.030/.040/.050
    • nut
      Bone nut
    • hardware color
      Gold
  • NECK DIMENSIONS

      • Scale :
        628mm/24.7"
      • a : Width
        45mm at NUT
      • b : Width
        58mm at 22F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        22mm at 9F
      • Radius :
        305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        20 "
      • b : Width
        16 1/2"
      • c : Max Depth
        4 1/4"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • SWITCHING SYSTEM

    LGB300's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    LGB300's control diagram

    DESCRIPTION

    There are two knobs located along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob. The pickup selector is located above the neck pickup.

  • OTHER FEATURES

    • Hardshell case included

Features

Gotoh machine heads

Gotoh® machine heads

Gotoh SG510 machine heads provide super precision, an ultra smooth feel, and
minimal back lush.

Super 58 Pickups

Super 58 Pickups (LGB300)

The Super 58 pickups deliver smooth, nuanced tones along with a crisp, biting growl.

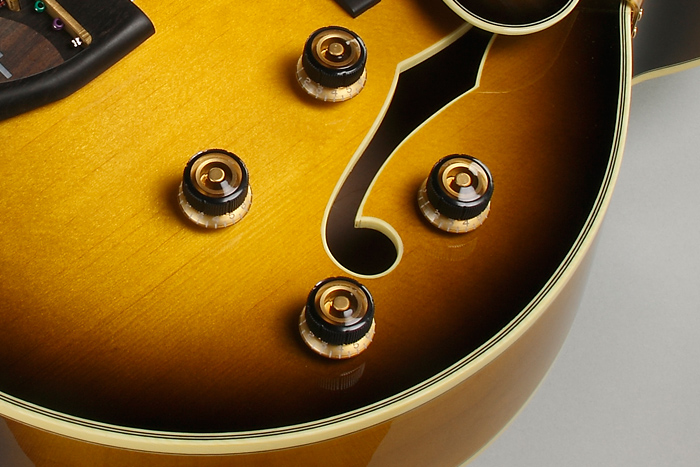

Sure Grip Knobs

Sure Grip Knobs

The Sure Grip III knobs are designed for precise control with nonslip functionality, along with smooth and classic looks.

LGB Body

LGB Body

Spruce top and Maple sides and back, with beautiful high gloss sunburst finish.

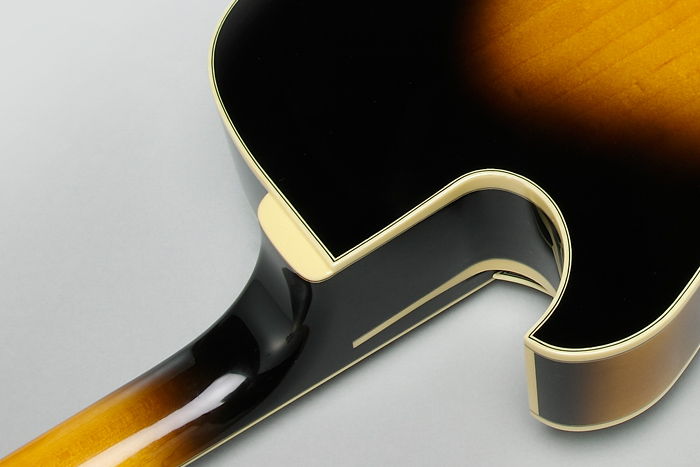

LGB Neck Joint

LGB Neck Joint

3pc Maple LGB300 set-in neck features slim, fast & maximum playing comfort.
