JGM5-BSN
  • BSN : Black Satin Top, Natural High Gloss Back and Sides
  • COLOR VARIATION:
SHARE:
JGM

SPEC

  • SPECS

    • body shape
      Asymmetrical Jumbo body
    • bracing
      Thermo Aged™ Spruce Modified X-M Bracing
    • top
      Thermo Aged™ Solid Sitka Spruce top
    • back & sides
      Pau Ferro back & Pau Ferro sides
    • neck
      JGMAfrican Mahogany/Pau Ferro 5pc neck
    • fretboard
      Macassar Ebony fretboard
    • bridge
      Macassar Ebony top loading bridge
    • body binding
      Macassar Ebony body binding with rounded body edge
    • top board purfling
      Wooden
    • soundhole rosette
      Specially Designed Wooden
    • tuning machine
      Chrome Die-cast tuners(18:1 gear ratio)
    • nut material
      Bone
    • number of frets
      20
    • saddle material
      Compensated Bone
    • strings
      D'Addario® XTAPB1256
    • string gauge
      .012/.016/.025/.035/.045/.056
    • string space
      11.4mm
    • factory tuning
      1D,2A,3G,4D,5G,6C
    • pickup
      Fishman® Rare Earth Mic Blend Active Soundhole, Tap
    • preamp
      Fishman® PowerTap Earth Blend preamp
    • output jack
      Dual Outputs (2 endpin jacks - 1 stereo/mono output capability built in (with strap button) - 1 mono flush mount)
  • NECK DIMENSIONS

      • Scale :
        655mm/25 3/4"
      • a : Width
        45mm at NUT
      • b : Width
        60mm at 14F
      • c : Thickness
        20.5mm at 1F
      • d : Thickness
        22mm at 7F
      • Radius :
        400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        20 7/8"
      • b : Width
        17 "
      • c : Max Depth
        4 7/8"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    JGM5's preamp diagram

    DESCRIPTION

    With the guitar held in the playing position, there is a knob affixed to the pickup assembly, which controls the output balance between the microphone and magnetic pickup. When turned fully counterclockwise, the output is coming the pickup only, in the middle position, the output is an equal blend of the pickup and microphone. When turned clockwise, the output is coming from the microphone only. Slightly below the pickup is a switch that controls the low frequencies of the microphone. When the switch is the up position, the low frequency range of the microphone is cut. When the switch is the down position, the low frequency range of the microphone output is neutral.

  • OTHER FEATURES

    • Gig bag included
    • Luminlay side dots

Features

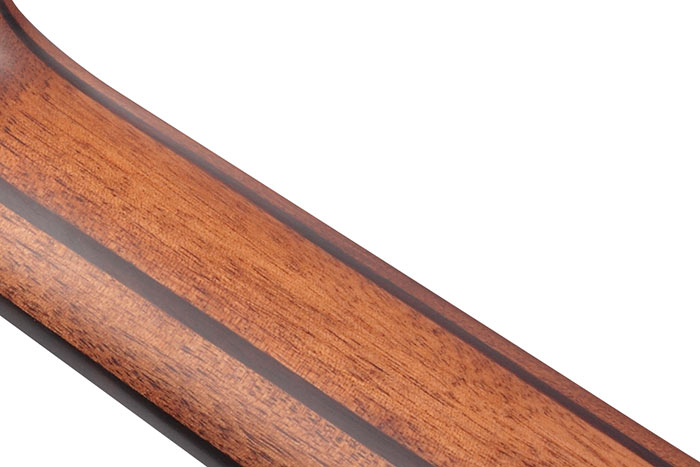

5pc African Mahogany/Pau Ferro neck

5pc African Mahogany/Pau Ferro neck

The African Mahogany and Pau Ferro 5pc neck has enhanced durability.

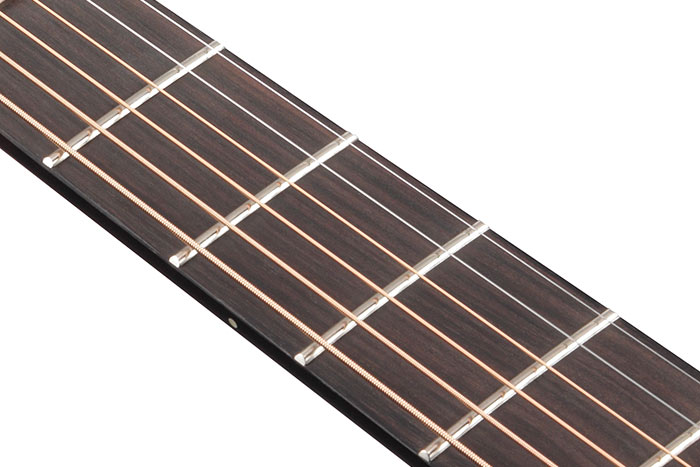

Macassar Ebony fretboard

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

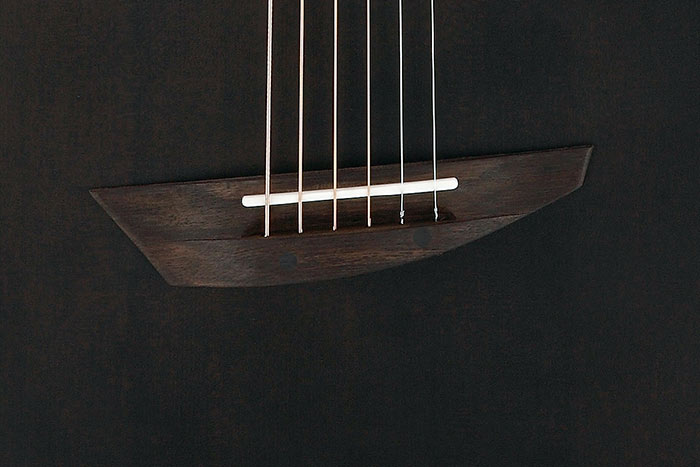

Macassar Ebony top loading bridge

Macassar Ebony top loading bridge

For a better percussive sound, the Macassar Ebony bridge features a top loading system without a bridgepin. It also offers a fast and easy method for string changes.

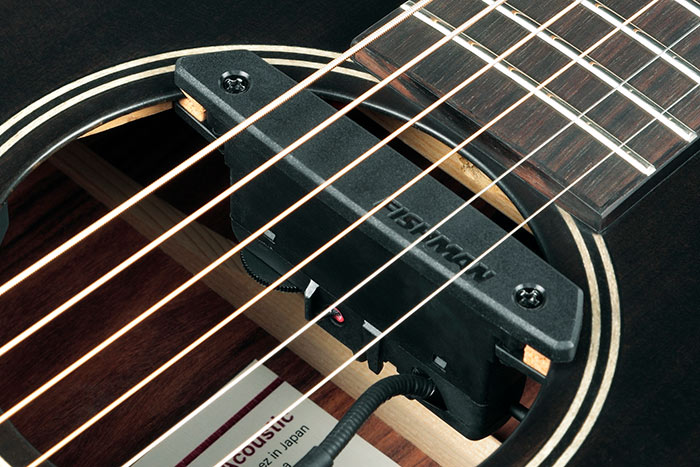

Rare Earth Mic Blend Active Soundhole pickup, Tap pickup

Rare Earth Mic Blend Active Soundhole pickup, Tap pickup

The combination of Fishman Rare Earth Mic Blend Active Soundhole pickup and Tap pickup offers a warmer, more natural acoustic tone with clarity of sounds.

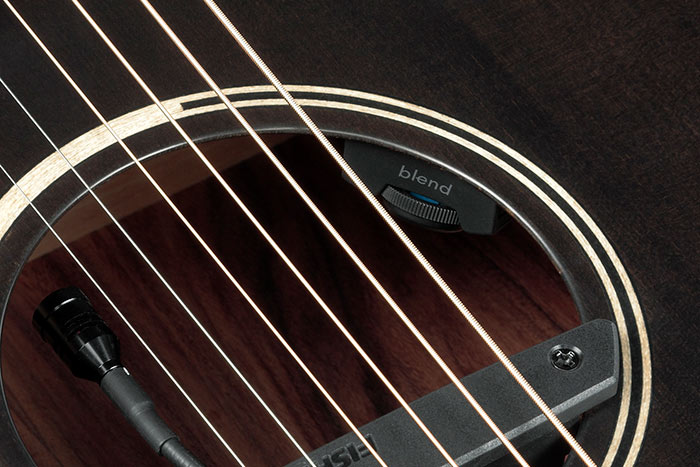

PowerTap Earth Blend

PowerTap Earth Blend

Blending the Rare Earth Mic Blend Active Soundhole pickup with Tap pickup, Fishman PowerTap Earth Blend system allows the guitar to capture the string vibration through the whole body and neck, which provides a rich acoustic tone and a dynamic percussive sound from the body and neck.

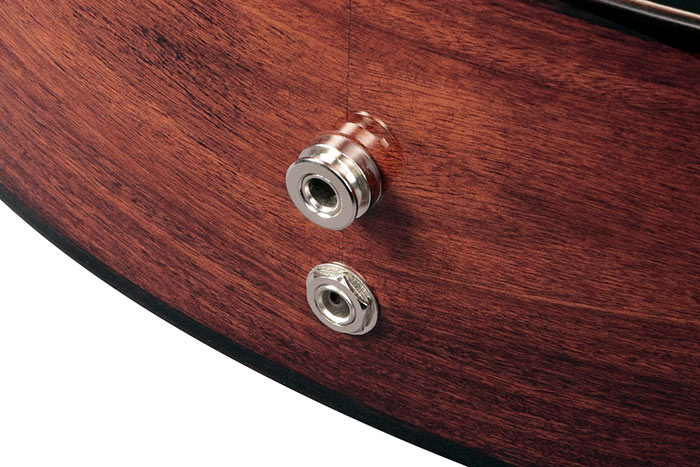

Dual Outputs (Magnetic pickup/Contact pickup/Microphone outputs)

Dual Outputs (Magnetic pickup/Contact pickup/Microphone outputs)

Plugged into the endpin jack only: Magnetic pickup + Contact pickup + Microphone with mixed output
Plugged into both the endpin jack and the mono flush mount endpin jack: Magnetic pickup, Contact pickup and Microphone running independently. (a TRS to TRS cable or a TRS to stereo ”Y” cable should be used). Endpin Jack = Magnetic pickup, Microphone output, Mono flush mount endpin jack = Contact pickup output

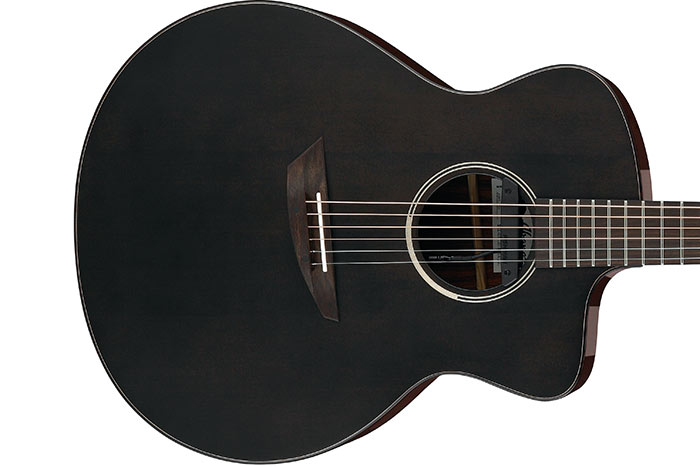

Asymmetric jumbo body

Asymmetric jumbo body

Developed for modern fingerstyle players, the asymmetric jumbo body features a low-end focused sound and tapping friendly shape

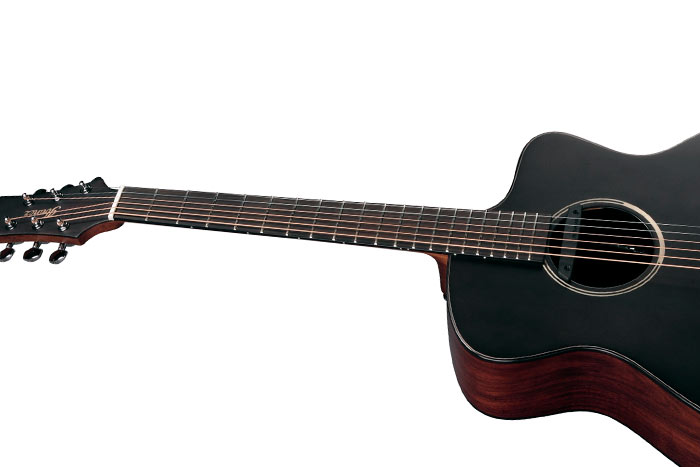

25 3/4 inch scale

25 3/4 inch scale

A 25 3/4 inch scale helps to maintain proper tension and pitch even while down tuning, a technique modern finger players often utilize. This scale-length also delivers improved sustain.

Gig bag included

Gig bag included

Ibanez Gig bags are made out of durable materials.

Luminescent Side Dot Inlays

Luminescent Side Dot Inlays

Luminescent side dot inlays line the side of the neck for more easily navigating the fretboard in low light environments.
