  • RBB : Regal Brown Burst
  • COLOR VARIATION:
SHARE:
AZ

SPEC

  • SPEC

    • neck type
    • AZ Oval C S-TECH WOOD®1pc Roasted Flamed Maple neck
    • top/back/body
    • AAA Flamed Maple (4mm) top/Alder body
    • fretboard
    • S-TECH WOOD® Roasted Flamed Maple fretboardAbalone dot inlay
    • fret
    • Jumbo Stainless Steel fretsPrestige fret edge treatment
    • bridge
    • Gotoh® T1802 tremolo bridge
    • neck pickup
    • Seymour Duncan® Hyperion™ (H) neck pickupPassive/Alnico
    • bridge pickup
    • Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico
    • string gauge
    • .010/.013/.017/.026/.036/.046
    • nut
    • Bone nut
    • hardware color
    • Chrome
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 42mm at NUT
      • b : Width
      • 57mm at 24F
      • c : Thickness
      • 20.5mm at 1F
      • d : Thickness
      • 22.5mm at 12F
      • Radius :
      • 305mmR
  • SWITCHING SYSTEM

  • CONTROLS

  • OTHERS

    • dyna-MIX10 switching system w/Alter Switch
    • Luminlay side dot inlay
    • Gotoh® MAGNUM LOCK machine heads w/H.A.P.
    • Hardshel l case included

Features

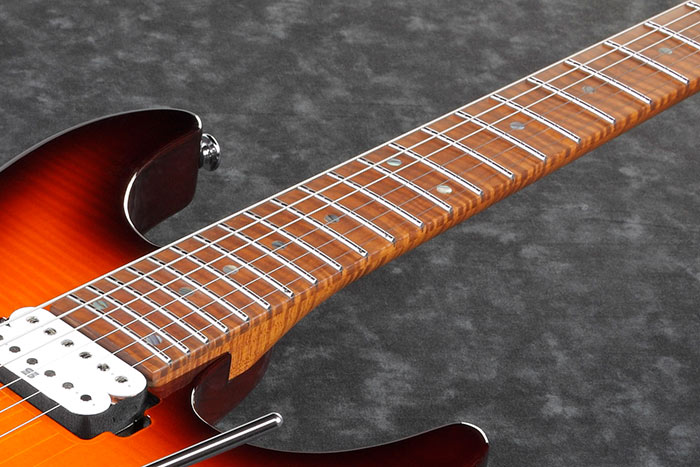

AZ Oval C S-TECH WOOD Roasted Flamed Maple neck

S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

Gotoh® T1802 tremolo bridge

T1802 tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs.
The 10.5mm string spacing allows for easy picking across strings. Its snap-in construction makes it easy to load a tremolo arm.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

dyna-MIX 10 switching system w/Alter switch

dyna-MIX 10 offers ten sound variations, and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

An ergonomic body back contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Luminlay side dot inlay

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Super All Access Neck Joint

The Super All Access Neck Joint offers superior playability with its 8mm concave curve from the body top to the spherical surface of the joint area. By maximizing the joint area between the body and the neck, sustain and resonance are increased as well.
