QX54QM-BSM
  • BSM : Blue Sphere Burst Matte
  • COLOR VARIATION:
SHARE:
Q

SPEC

  • SPECS

    • neck type
    • Parallel Wizard3pc Roasted Maple/Bubinga neck
    • top/back/body
    • Quilted Maple topNyatoh body
    • fretboard
    • Roasted Birdseye Maple fretboardMother of Pearl Step off-set dot inlay
    • fret
    • Jumbo Jescar EVOgold™ frets
    • number of frets
    • 24
    • bridge
    • Ibanez Mono-Tune bridge
    • string space
    • 10.8mm
    • neck pickup
    • R1 (S) neck pickupPassive/Ceramic
    • middle pickup
    • R1 (S) middle pickupPassive/Ceramic
    • bridge pickup
    • Q58 (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL110
    • string gauge
    • .010/.013/.017/.026/.036/.046
    • hardware color
    • Cosmo black
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 42mm at NUT
      • b : Width
      • 57mm at 24F
      • c : Thickness
      • 19mm at 1F
      • d : Thickness
      • 19mm at 12F
      • Radius :
      • 508mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    QX54QM's Switching system diagram

    DESCRIPTION

    When the alter switch is in neck position, two hum tap mode is on. When the alter switch is in bridge position, two hum tap mode is off. Two hum tap mode means the neck and middle pickups are wired in series and functioning as a humbucker. When two hum tap mode is off and the pickup selector switch is in neck position, neck pickup is selected. When the switch is in between neck and center position, neck and center pickups are selected. When the switch is in center position, center position is selected. When the switch is in between center and bridge position, center pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected. When two hum tap mode is on and the pickup selector switch is in neck position, the neck and center pickups are selected and they are in series. When the switch is in between neck and center position the neck pickup and bridge side of the bridge pickup are selected. When the switch is in center position, neck, center, and bridge pickups are selected; the neck and center pickups are in series mode. When the switch is in between center and bridge position, the neck side of the bridge pickup is selected. When the switch is in bridge position, the bridge pickup is selected.

  • CONTROLS

    QX54QM's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.

  • OTHER FEATURES

    • Gig bag included
    • dyna-MIX9 switching system w/Alter Switch
    • Ibanez Custom String Lock
    • Luminescent side dot inlay

Features

Parallel Wizard 3pc Roasted Maple/Bubinga neck

Parallel Wizard 3pc Roasted Maple/Bubinga neck

The Parallel Wizard neck is 19mm thick all the way through the entire length. It provides an amazing fretting-hand experience for the players who prefer their instrument held in a higher playing position. The 3pc Roasted Maple/Bubinga construction also offers excellent stability and long-term durability.

Quilted Maple top / Nyatoh body

Quilted Maple top / Nyatoh body

The Quilted Maple top sonically enriches the response for picking. Nyatoh used as body wood provides a rich mid-low end.

R1 / Q58 S-S-H pickups

R1 / Q58 S-S-H pickups

The R1 / Q58 pickup combo is designed specifically for use in headless guitars. They provide a clearly defined sound, facilitating excellent tonal balance through all frequencies. The lows are powerful without being muddy, and the highs are bright and clear, but never harsh. As a result, every single note within the chord structure is well defined, and clearly audible. These pickups, with their tonal balance, and extremely low noise performance, work extremely well with both digital and analog effects.

Custom string lock

Custom string lock

This custom string lock is one-piece unit that features very simple construction. This means the hardware requires less maintenance, is highly durable, and allows for very easy string changes. Additionally, no proprietary string is required, so you can continue to use your favorite gauge and brand.

Mono-Tune bridges

Mono-Tune bridges

The Mono-Tune bridges offer a wide intonation range so that you can easily set the instrument up for tuning down a whole step or even further. The string height is also easily adjustable, and each saddle generally has less material, which leads to more natural and organic tone.

dyna-MIX9 switching system with Alter Switch

dyna-MIX9 switching system with Alter Switch

The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.

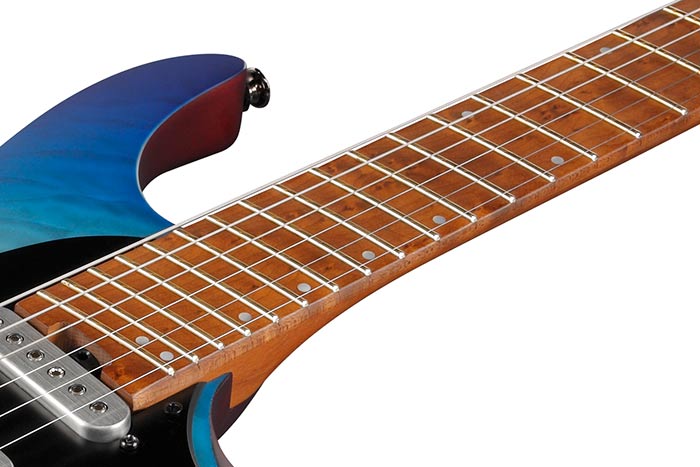

Slanted frets

Slanted frets

All of the frets are equally slanted at an 8-degree angle. Many contemporary players tend to favor a much higher playing positon to execute more effectively, highly technical and intricate techniques like tapping, finger style, and even occasional bass-inspired slap riff. This higher position results in the four fretting fingers naturally tilting slightly inwards. This 8-degree inward tilt of the frets perfectly accommodates this and offers a more natural feeling and comfortably playing guitar.

Roasted Birdseye Maple fretboard

Roasted Birdseye Maple fretboard

The beautiful Birdseye Maple fretboard imbues this model with an exotic appearance . The fretboard is heat-treated for a balanced attack and rich sustain.

Jescar EVOgold™ frets

Jescar EVOgold™ frets

Jescar EVOgold™ frets are known for their bright tone, gorgeous appearance, and excellent features such as long-lasting durability and smooth note bending.

Ergonomic body design

Ergonomic body design

The body features a number of strategically placed curves on both the top and back of the instrument. This complex, yet sophisticated design provides maximum playing comfort.

Compact and light-weight, yet resonant body

Compact and light-weight, yet resonant body

While it is really compact and light-weight, its non-chambered, solid body provides great sound with rich woody tones.
