LGB300
SPEC
-
SPECS
- neck type
- LGB3pc Mapleset-in neck
- top/back/side
- Spruce top Maple backMaple sides
- fretboard
- Bound EbonyAcrylic & Abalone block inlay
- fret
- Medium fretsPrestige fret edge treatment
- number of frets
- 22
- bridge
- Ebony bridge
- string space
- 10.4mm

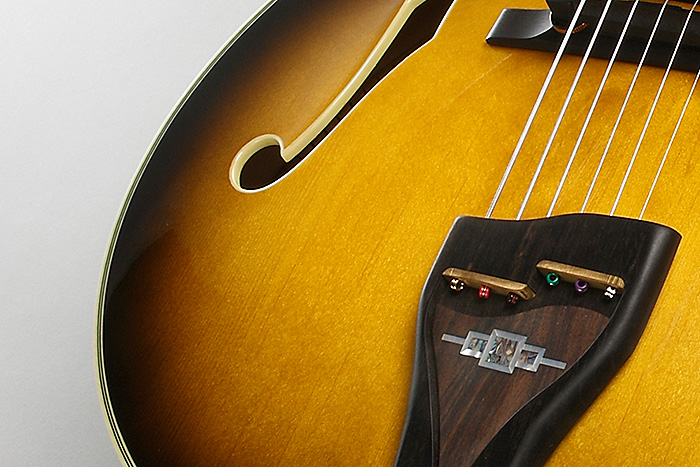

- tailpiece
- LGB300 tailpiece
- neck pickup
- Super 58 (H) neck pickupPassive/Alnico
- bridge pickup
- Super 58 (H) bridge pickupPassive/Alnico
- factory tuning
- 1E, 2B, 3G, 4D, 5A, 6E
- string gauge
- .011/.015/.022w/.030/.040/.050
- nut
- Bone nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.7"
- a : Width
- 45mm at NUT
- b : Width
- 58mm at 22F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22mm at 9F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 "
- b : Width
- 16 1/2"
- c : Max Depth
- 4 1/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
There are two knobs located along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob. The pickup selector is located above the neck pickup.
-
OTHER FEATURES
- Recommended Bag
-
IAB724-BK

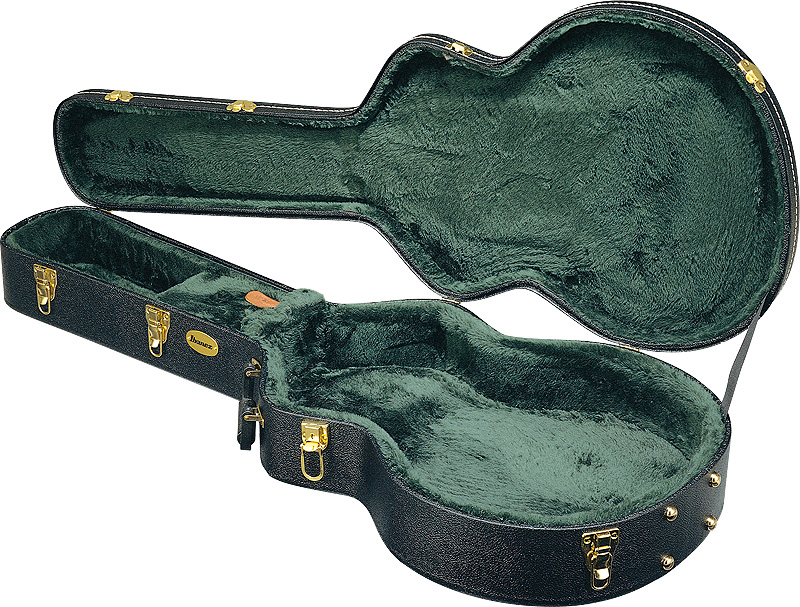

- Hardshell case included
Features

Gotoh® machine heads
Gotoh SG510 machine heads provide super precision, an ultra smooth feel, and
minimal back lush.

Super 58 Pickups (LGB300)
The Super 58 pickups deliver smooth, nuanced tones along with a crisp, biting growl.

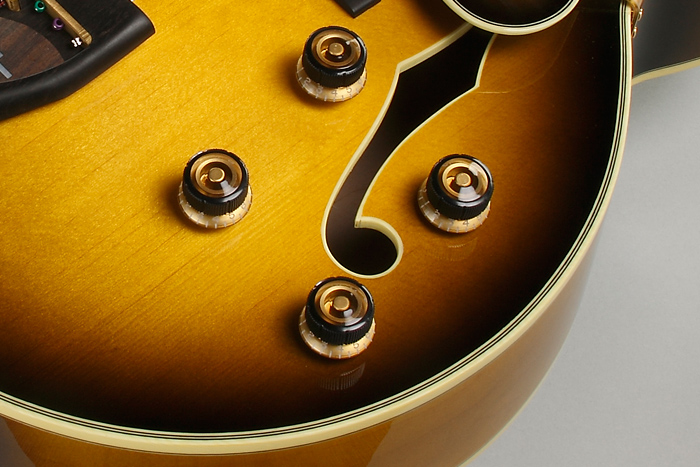

Sure Grip Knobs
The Sure Grip III knobs are designed for precise control with nonslip functionality, along with smooth and classic looks.

LGB Body
Spruce top and Maple sides and back, with beautiful high gloss sunburst finish.

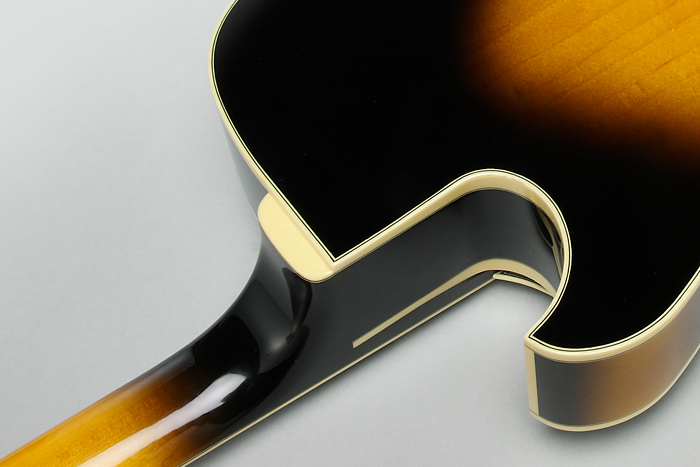

LGB Neck Joint
3pc Maple LGB300 set-in neck features slim, fast & maximum playing comfort.
