FRM300
SPEC
-
SPECS
- neck type
- FRM3pc Okoume/MapleSet-in neck
- top/back/body
- Okoume body
- fretboard
- Bound Ebony fretboardWhite dot inlay
- fret
- Narrow & Tall frets
- number of frets
- 22
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm
- tailpiece
- Quik Change III tailpiece
- neck pickup
- DiMarzio® PG-13™ (H) neck pickupPassive/Ceramic
- middle pickup
- DiMarzio® PG-13™ (H) middle pickupPassive/Alnico & Neodymium
- bridge pickup
- DiMarzio® PG-13™ (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech® nut
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.75"
- a : Width
- 43mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 22mm at 1F
- d : Thickness
- 24mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is active. When the switch is between neck and center position, the neck and center pickups are active. When the switch is in center position, the center pickup is active. When the switch is between the center and bridge position, the center pickup and bridge pickup are active. When the switch is in bridge position, the bridge pickup is active.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a five-way pickup selector switch near the knee cutout on the lower part of the body. From the direction of the selector towards the lower bout, there is tone knob and then a volume knob.
-
OTHER FEATURES
- Gig bag included
Features

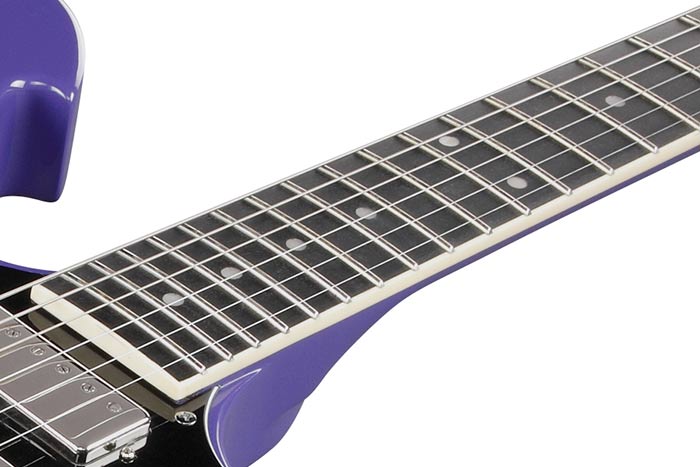

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

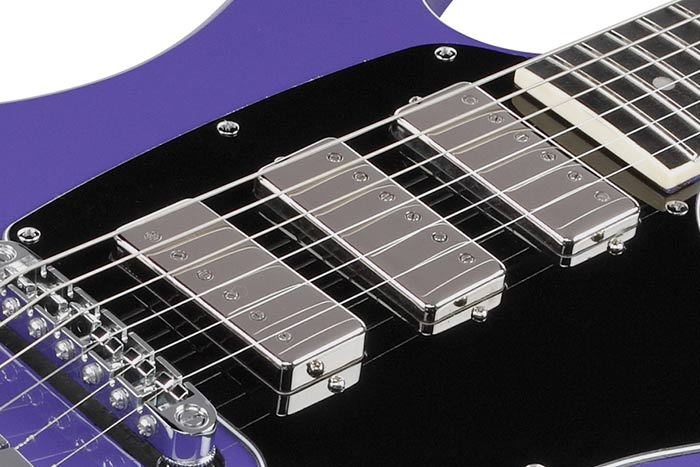

DiMarzio® PG-13™ H-S-H pickups
DiMarzio® PG-13™ pickups, specially wound for Paul Gilbert, offer extra clarity without losing the bite. These mini humbuckers have unique characteristics of both normal humbuckers and single coils.

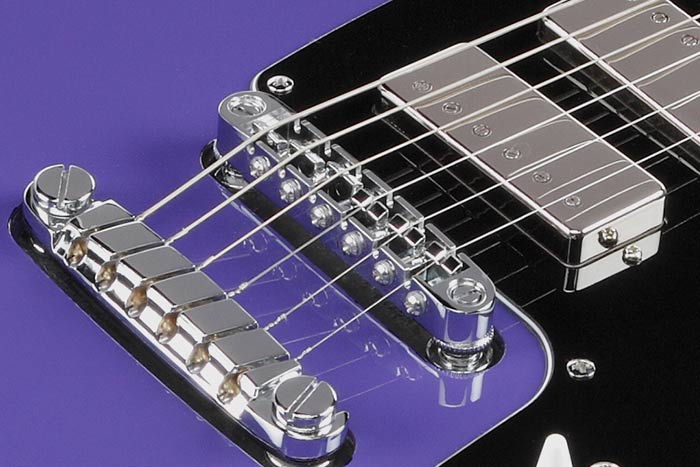

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

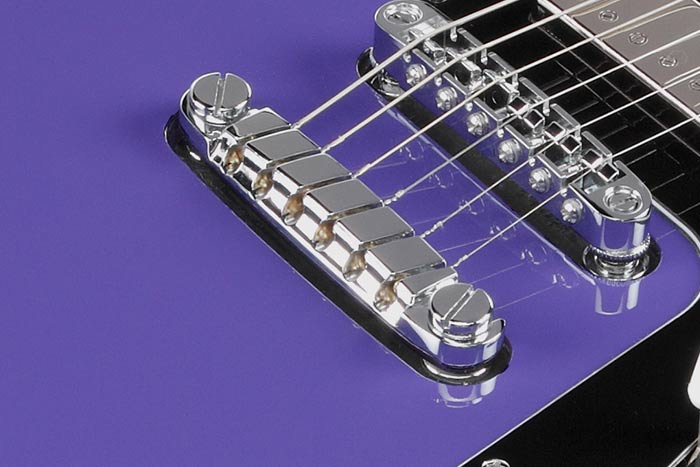

Quik Change III tailpiece
The Quik Change III tailpiece enables faster and easier string changing.
