FRH10N-BSF
FRH10N-NTF
  • BSF : Brown Sunburst Flat
  • NTF : Natural Flat
  • COLOR VARIATION:
SHARE:
FRH

SPEC

  • SPECS

    • body shape
    • FRH body
    • bracing
    • Fan Bracing for FRH
    • top
    • Solid Sitka Spruce top
    • back & sides
    • Sapele back & Sapele sides
    • neck
    • C ShapeNyatohSet-in neck
    • fretboard
    • Walnut fretboard
    • bridge
    • Walnut bridge
    • inlay
    • White dot inlay
    • tuning machine
    • Gold Classical tuners
    • nut material
    • Bone
    • number of frets
    • 22
    • saddle material
    • Bone
    • strings
    • D'Addario® XTC45
    • string gauge
    • .028/.032/.040/.028W/.035W/.044W
    • string space
    • 11.6mm
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • pickup
    • Ibanez T-bar Undersaddle
    • preamp
    • Ibanez Custom Electronics
    • output jack
    • 1/4" Endpin Jack
    • battery
    • CR2032 x2
  • NECK DIMENSIONS

      • Scale :
      • 648mm
      • a : Width
      • 46mm at NUT
      • b : Width
      • 58mm at 14F
      • c : Thickness
      • 21mm at 1F
      • d : Thickness
      • 22mm at 7F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
      • 17 5/16"
      • b : Width
      • 14 3/16"
      • c : Max Depth
      • 1 15/16"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    FRH10N's preamp diagram

    DESCRIPTION

    This is a photo of the Ibanez T-bar under saddle pickup, end pin with preamp, and battery box. There is a button on the battery box which allows muting of the output signal or checking the remaining battery life.

  • OTHER FEATURES

    • 400mmR fretboard radius

Features

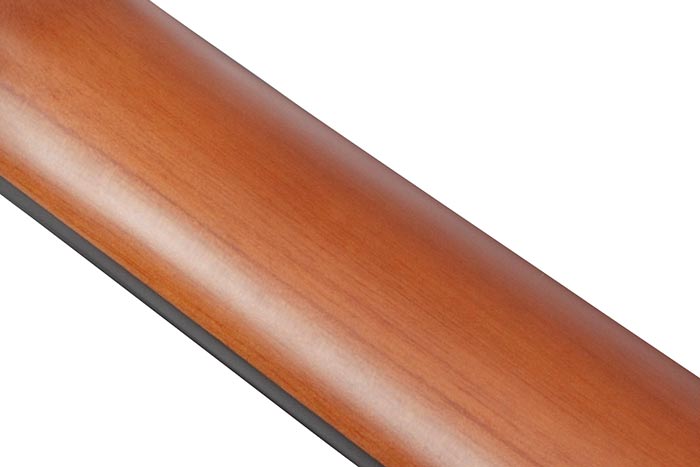

Nyatoh neck

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Walnut fretboard

Walnut fretboard

A Walnut fretboard features a well-balanced tonal character from low to high end.

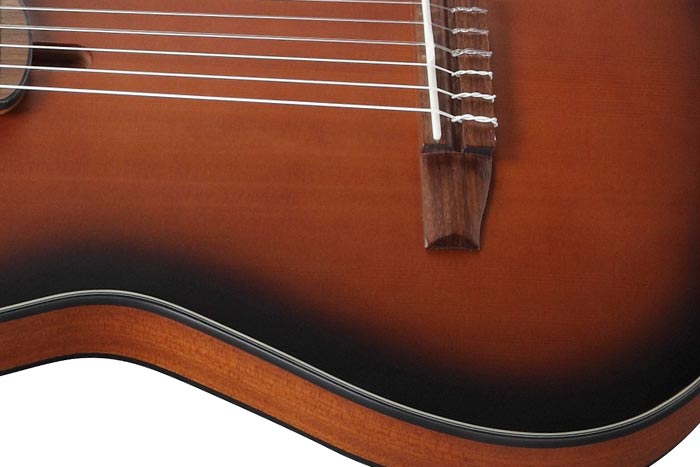

Solid Sitka Spruce top

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

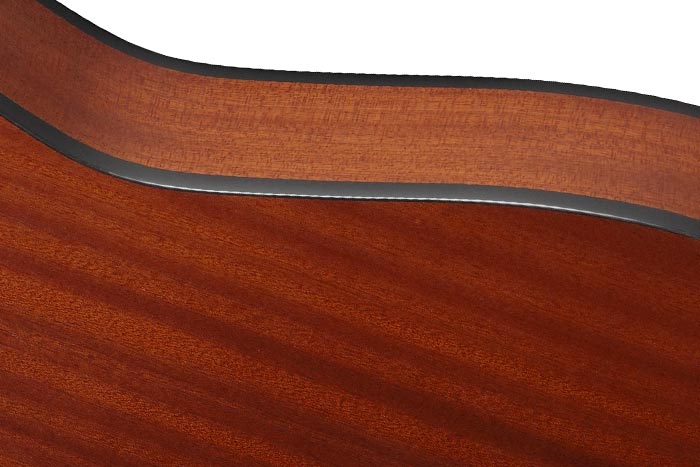

Sapele back and sides

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

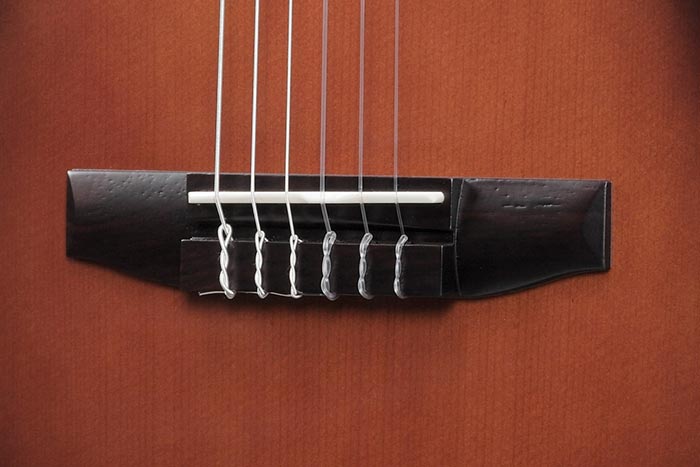

Walnut bridge

Walnut bridge

The Walnut bridge transfers string vibration directly to the body, delivering a natural and warm tone.

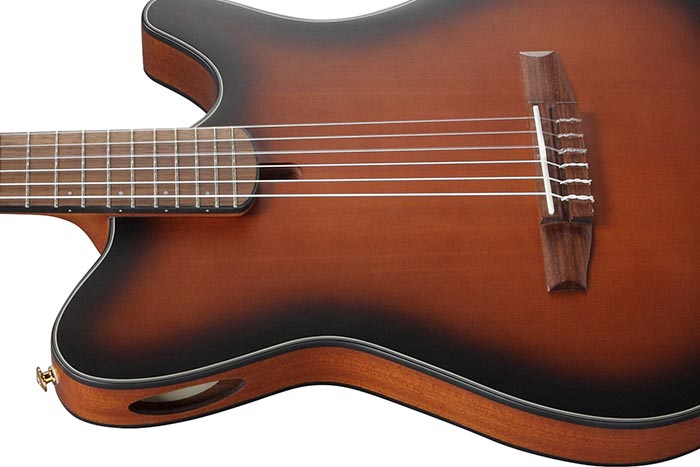

Modified FR hollow body w/ Fan bracing

Modified FR hollow body w/ Fan bracing

Its thin, compact body and superior high fret access contribute to the superb playability of this guitar.
It has less feedback as there’s no sound hole on the body top. Fan bracing, which is commonly used for classical guitars, allows this guitar to have a warm and natural nylon string sound.

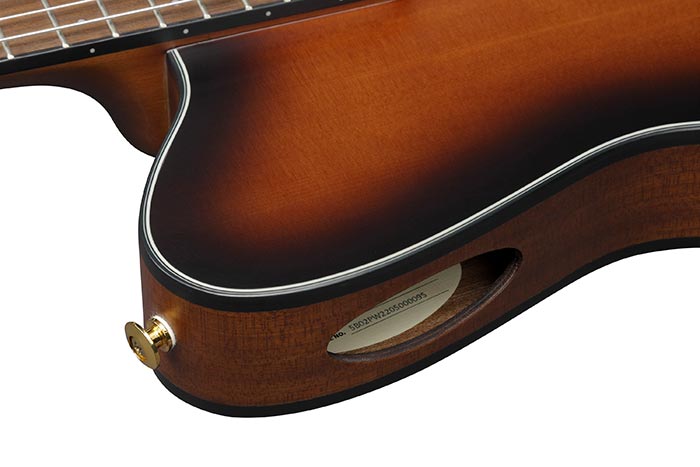

Side Sound Port

Side Sound Port

The sound port on the body side allows you to feel and hear the pure acoustic tone of this guitar more clearly and directly.

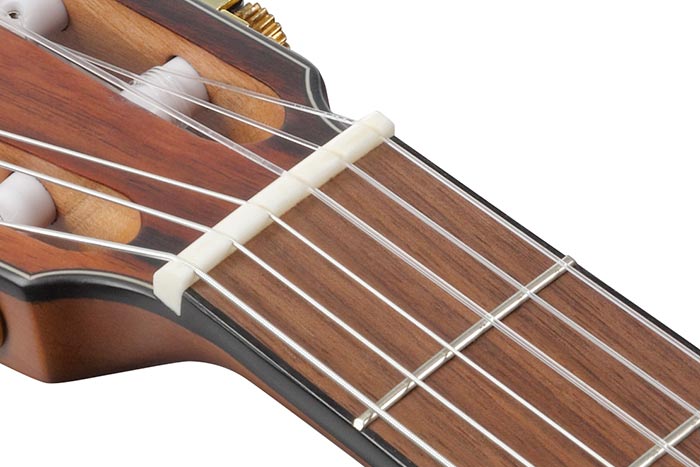

46mm width nut / 400R fretboad radius

46mm width nut / 400R fretboad radius

The combination of a narrow 46mm width nut and 400R fretboard radius offers easy fingering.

Ibanez T-bar Undersaddle pickup

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
