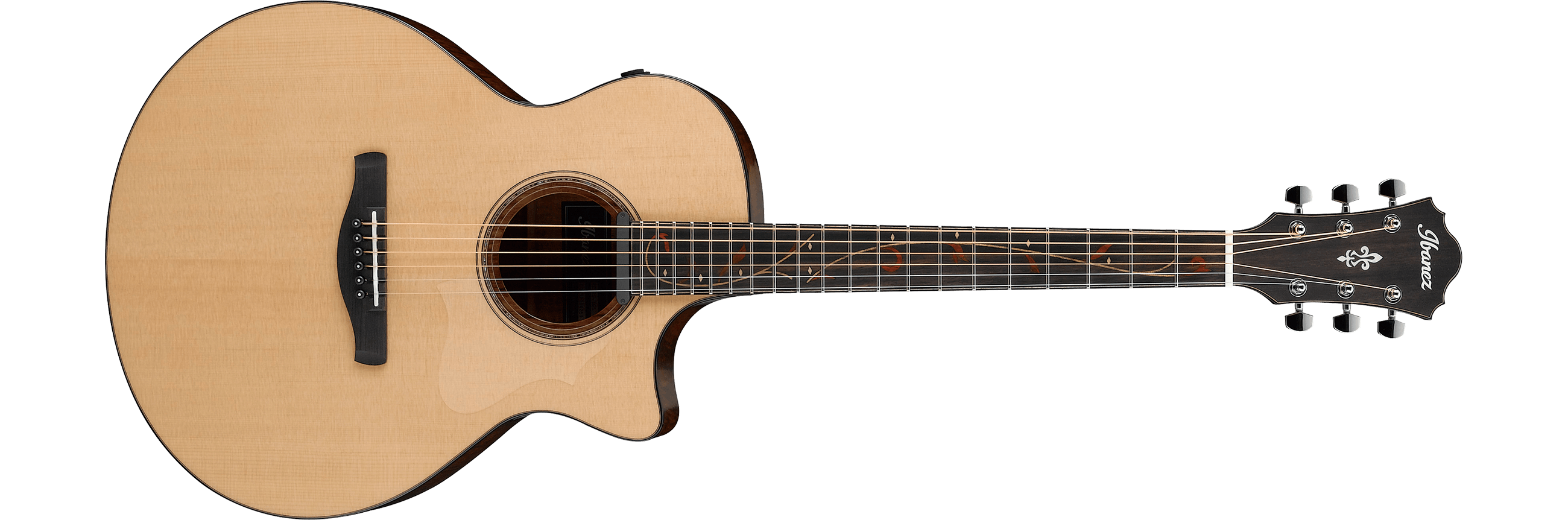

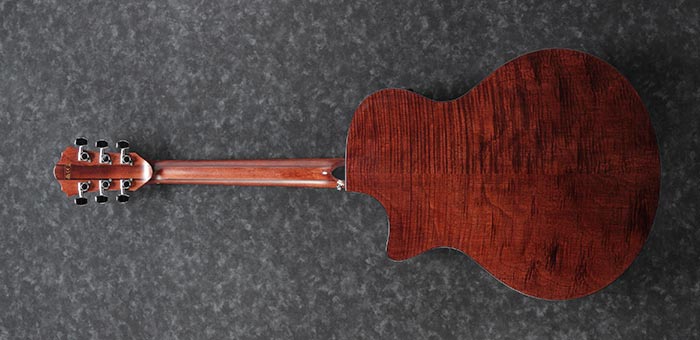

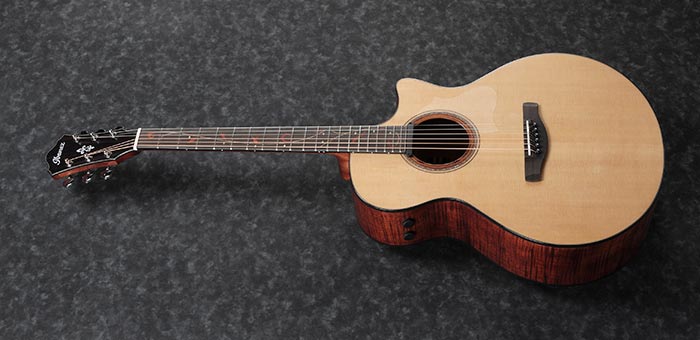

AE325
- LGS : Natural Low Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AE body
- bracing
- X-M Bracing
- top
- Solid Sitka Spruce top
- back & sides
- Flamed Okoume back & Flamed Okoume sides
- neck
- Comfort Grip with Rounded Fretboard EdgeAfrican Mahogany/Pau Ferro 5pc neck
- fretboard
- Macassar Ebony fretboard
- bridge
- Macassar Ebony scalloped bridge
- top board purfling
- Wooden purfling
- inlay
- Specially designed Wooden Vine inlay
- soundhole rosette
- Abalone and Wooden rosette with Soundhole binding
- tuning machine
- Chrome Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone saddle
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1152
- string gauge
- .011/.015/.022/.032/.042/.052
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez AP11 Magnetic & T-bar Undersaddle
- preamp
- Ibanez Custom Electronics w/ Magnetic Pickup Volume and Undersaddle Pickup Volume
- output jack
- Dual Outputs (Mono Out / Stereo Out)
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 44mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 4 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
There are two knobs; the one closest to the player is the volume control for the magnetic pickup and the other furthest from the player is the volume control for the under-saddle-pickup.
-
OTHER FEATURES
Features
Macassar Ebony Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.
X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.
AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Ibanez AP11 Magnetic Pickup
The newly designed AP11 pickup is small, lightweight, and positioned so it won’t inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar’s natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others.

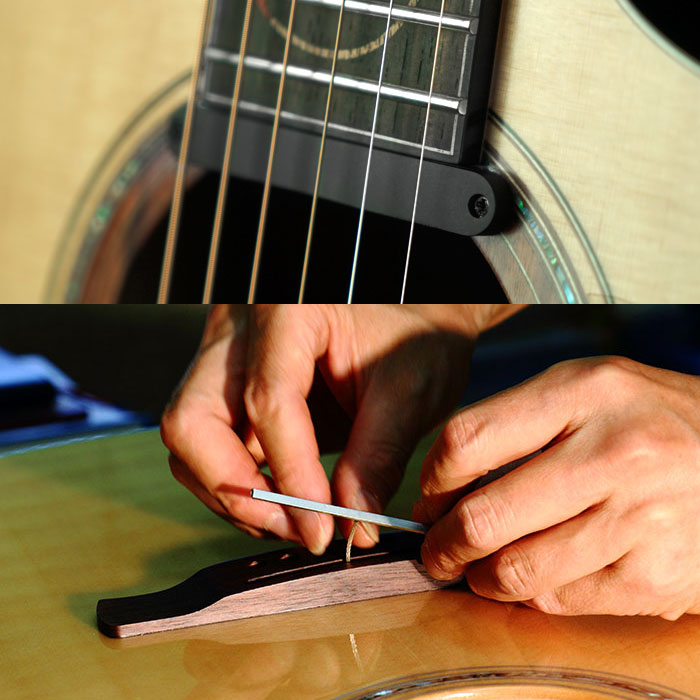

Dual Pickup system with AP11 magnetic pickup and T-bar undersaddle pickup
AE325 also features versatile Dual Pickup system with AP11 magnetic pickup and T-bar undersaddle pickup. Blending undersaddle pickup on magnetic pickup, you can get more punchy and articulate tone which fits to lead play or adds the presence in the band ensemble.

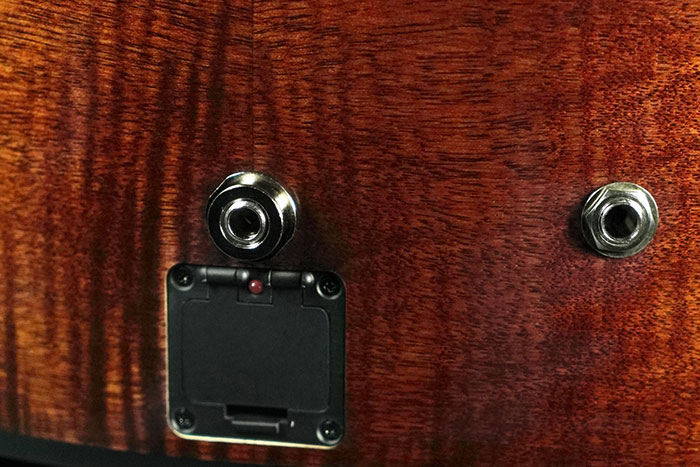

Dual Outputs
•Plugged into the endpin jack only: Magnetic pickup + Undersaddle pickup with Mixed output
•Plugged into both the endpin jack and the open jack: Magnetic pickup and Undesrsaddle pickup running independently.
Endpin Jack : Magnetic pickup Output
Open Jack : Undersaddle Pickup Output
Luminescent Side Dot Inlays
Luminescent side dot inlays line the side of the neck for more easily navigating the fretboard in low light environments.
Comfort Grip w/Rounded Fingerboard Edge
In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.
Jumbo Frets
The jumbo frets support easy fingering.

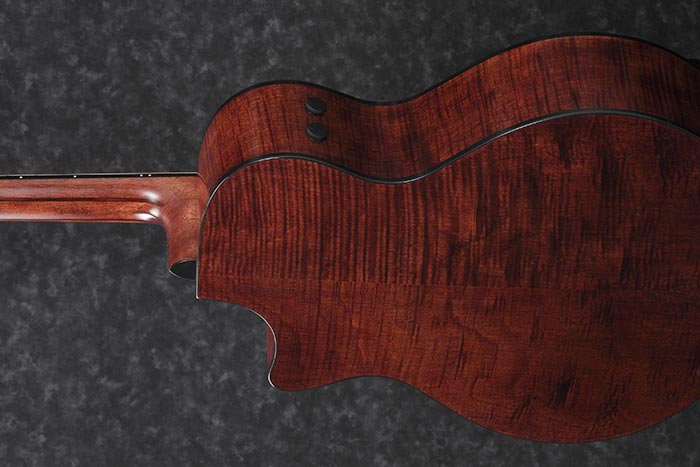

Flamed Okoume Back & Sides
The attractive, Flamed Okoume back and sides offer present and rich midrange tones.
African Mahogany/Pau Ferro 5pc neck
5pc neck construction boasts increased stability.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
