AE240JR-MHS
  • MHS : Mahogany Sunburst High Gloss
  • COLOR VARIATION:
AE

SPEC

  • SPECS

    • body shape
    • AE Junior body
    • bracing
    • Ibanez Original Scalloped X bracing / Tone Projection Back Bracing
    • top
    • Solid Okoume top
    • back & sides
    • Okoume back & Okoume sides
    • neck
    • AENyatoh neck
    • fretboard
    • Ovangkol fretboard
    • bridge
    • Ovangkol bridge
    • inlay
    • White dot inlay
    • soundhole rosette
    • Abalone and Maple
    • tuning machine
    • Chrome Open Gear tuners (18:1 gear ratio)
    • nut material
    • Bone
    • number of frets
    • 20
    • saddle material
    • Compensated Bone
    • bridge pins
    • Ibanez Advantage™
    • strings
    • D'Addario® XTAPB1152
    • string gauge
    • .011/.015/.022/.032/.042/.052
    • string space
    • 11mm
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • pickup
    • Ibanez T-bar Undersaddle
    • preamp
    • Ibanez Custom Electronics
    • output jack
    • 1/4" Endpin Jack
    • battery
    • CR2032 x2
  • NECK DIMENSIONS

      • Scale :
      • 607mm/23.9"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 55mm at 14F
      • c : Thickness
      • 20mm at 1F
      • d : Thickness
      • 21mm at 7F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
      • 18 3/8"
      • b : Width
      • 14 3/4"
      • c : Max Depth
      • 4 3/8"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    AE240JR's preamp diagram

    DESCRIPTION

    This is a photo of the Ibanez T-bar under saddle pickup, end pin with preamp, and battery box. There is a button on the battery box which allows muting of the output signal or checking the remaining battery life.

  • OTHER FEATURES

    • Gig bag included

Features

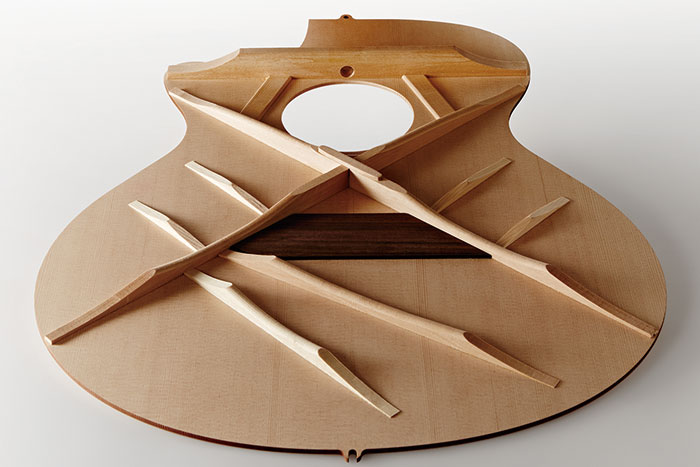

Scalloped X bracing

Scalloped X bracing

Scalloped X bracing on the top provides responsive and balanced tone.

Nyatoh neck

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Ovangkol fretboard

Ovangkol fretboard

The Ovangkol fretboard provides greater playing comfort.

Okoume back and sides

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ovangkol bridge

Ovangkol bridge

The Ovangkol bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez T-bar Undersaddle pickup

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage bridge pins

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
