TCB1006-ALM
  • ALM : Autumn Leaf Burst Matte
  • COLOR VARIATION:
SHARE:
TCB

SPEC

  • SPECS

    • neck type
    • TCB5pc Maple/Purpleheartset-in neck
    • top/back/body
    • Quilted Maple topCurly Maple backCurly Maple body
    • fretboard
    • Bound RosewoodAcrylic block inlay
    • fret
    • Jumbo fretsPrestige fret edge treatment
    • number of frets
    • 24
    • bridge
    • Hipshot A-style bridge w/Graph Tech Ghost® Saddle pickup
    • string space
    • 19mm
    • neck pickup
    • EMG® 45HZ neck pickupPassive
    • bridge pickup
    • EMG® 45HZ bridge pickupPassive
    • equaliser
    • Graph Tech Ghost® modular pickup system
    • factory tuning
    • 1C, 2G, 3D, 4A, 5E, 6B
    • strings
    • La Bella Deep Talkin' Flatwound
    • string gauge
    • .029/.049/.069/.089/.109/.128
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 864mm/34"
      • a : Width
      • 58mm at NUT
      • b : Width
      • 98mm at 24F
      • c : Thickness
      • 20mm at 1F
      • d : Thickness
      • 23mm at 12F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • CONTROLS

    TCB1006's control diagram

    DESCRIPTION

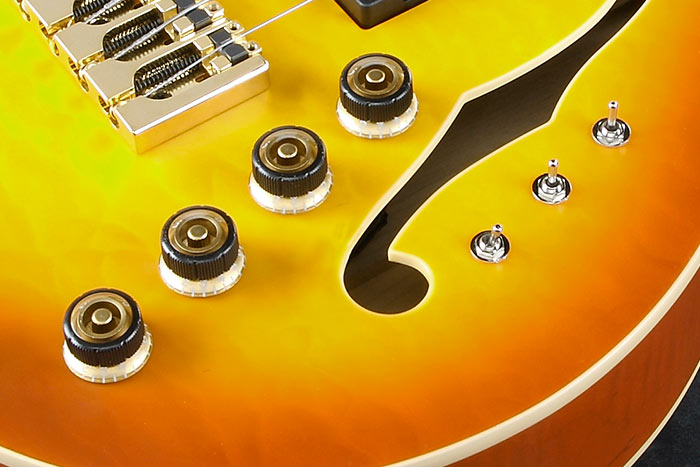

    With the bass held in the playing position, there are four knobs above the lower f-hole. Directionally, from the lower bout towards the neck the controls are; MIDI volume knob, piezo volume knob, magnetic tone knob, and magnetic volume knob. There are three switches along the lower edge of the body. From the lower bout towards the neck they are; mid/dark mode EQ selector switch, MIDI program up/down switch, and MIDI mix/magnetic & piezo pickup selector switch. MIDI program up/down switch and MIDI mix/magnetic & piezo pickup selector switch that is operational only when 13-pin output jack is connected. The pickup selector switch is near the upper bout of the bass. When the switch is in neck position, the neck pickup is selected. When the switch is in center position, both pickups are selected. When the switch is in bridge position, the bridge pickup is selected.

  • OTHER FEATURES

    • Hipshot Ultralite™ tuner
    • Hardshell case included

Features

Hipshot Ultralite tuner

Hipshot Ultralite™ tuner

To avoid neck-dive, the TCB1006 features lightweight machine-heads, Hipshot Ultralite™ Tuners. These tuners reduce the weight and provide the model with the same balance of a hollow body and neck.

Hipshot A-style bridge w/Graph Tech Ghost Saddle pickup

Hipshot A-style bridge w/Graph Tech Ghost® Saddle pickup

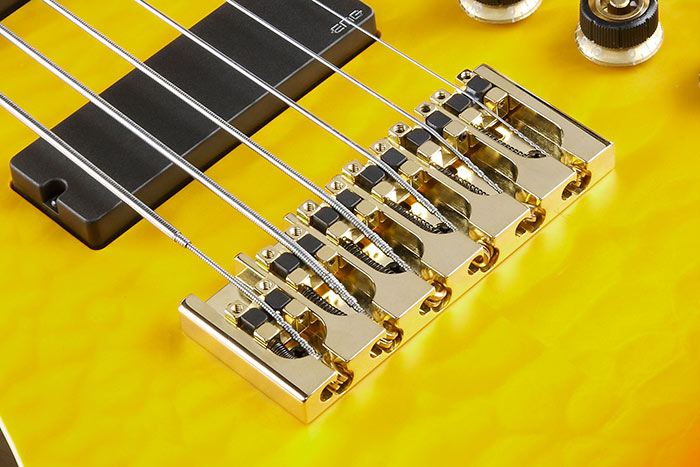

The Graph Tech Ghost® Saddle pickup offers wide range of tonal variation along with the magnetic pickups.

Graph Tech Ghost modular pickup system

Graph Tech Ghost® modular pickup system

The Graph Tech Ghost® modular pickup system offers Piezo and MIDI output options to the player in addition to the magnetic sound. Players can quickly and smoothly control various tones by two knobs and three toggle switches; MIDI/Mix/Magnetic&Piezo, MIDI program up/down, and Mid/Dark (natural Ghost® acoustic sound/mid-boost) switches.

EMG 45HZ pickups

EMG® 45HZ pickups

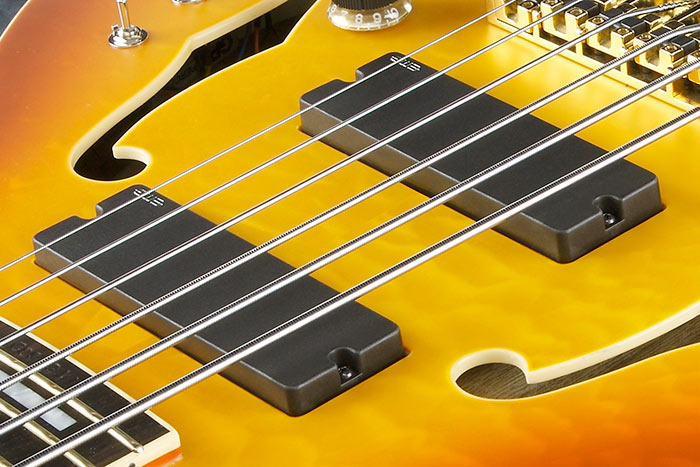

For the magnetic pickup, the TCB1006 features EMG 45HZ, a passive humbucking pickup which features low noise, plenty of output and warm tone.

TCB 5pc Maple/Purpleheart set-in neck

TCB 5pc Maple/Purpleheart set-in neck

The TCB 5pc Maple/Purpleheart neck provides tonal clarity and superior attack.
