- neck type
- SRMS5 Prestige5pc Wenge/Walnut neck
- Ash body

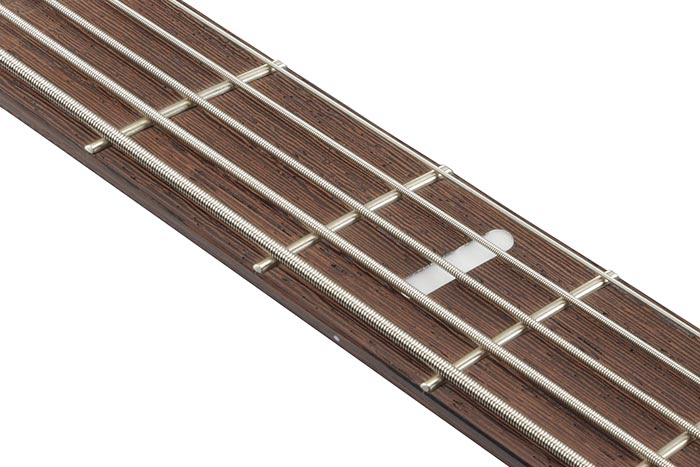

- Wenge fretboardAcrylic special inlay
- Medium frets
- number of frets
- MR5S bridge
- string space
- neck pickup
- Nordstrand™ Big Split Custom neck pickupPassive
- bridge pickup
- Nordstrand™ Big Split Custom bridge pickupPassive
- Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
- factory tuning
- D'Addario® EXL170-5SL
- string gauge
- Graph Tech® BLACK TUSQ XL®
- hardware color
- Scale :
- 901.7mm - 864mm
- a : Width
- 45mm at NUT
- b : Width
- 67mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 23mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard

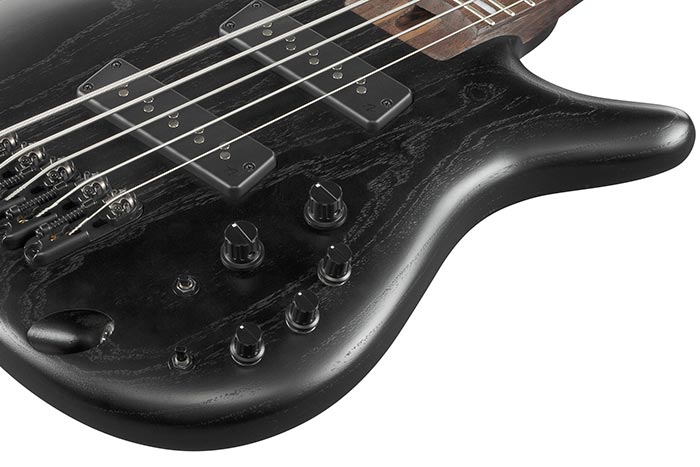

With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 800Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.
- Recommended Bag
- Hardshell case included

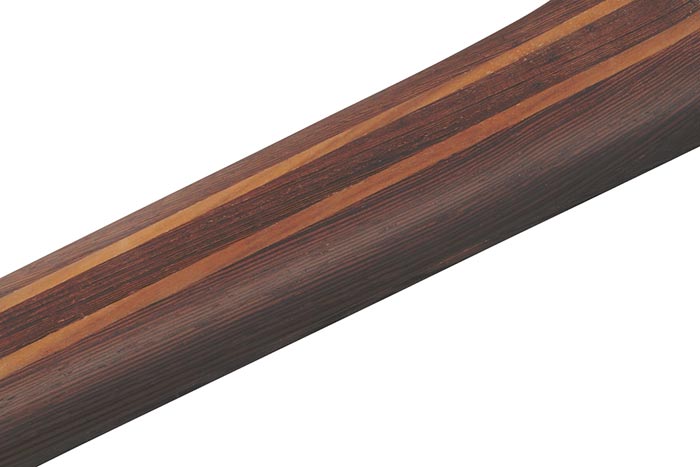

5pc Wenge/Walnut neck
The 5pc Wenge/Walnut neck provides tonal clarity and superior attack.

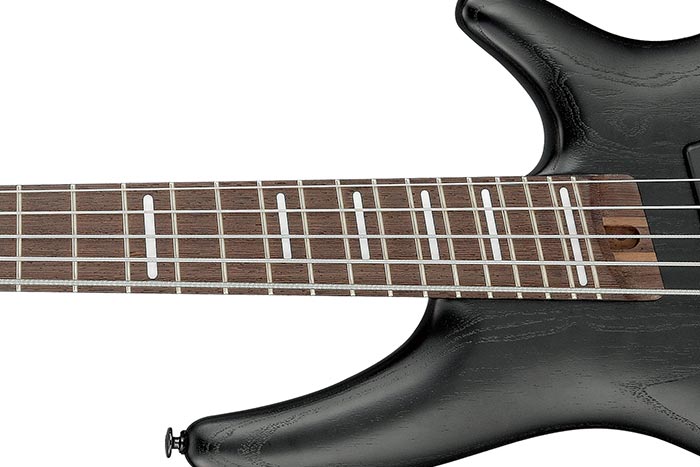

The multi scale construction equalizes tension of each string and it helps to create a more "alive", open tone. But the design also improves player comfort. The multi scale construction ergonomically coordinates with the way a player's hand angles as it moves up and down the neck, facilitating quick, comfortable playing action.
The Wenge has a strong presence of mid low range, and provides very tight and clear sound.
The Ash body delivers a pleasant brightness and rich sustain.

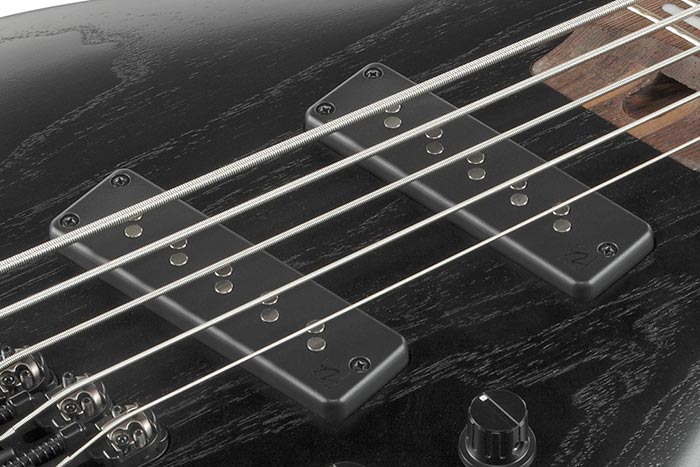

Nordstrand™ Big Split Custom pickups
The single-coil Nordstrand™ Big Split pickups feature split coils with hum cancelling construction for less noise. The tone character is a hybrid P/J style and provides a rich and strong, yet well-balanced tone, which fits well with various kinds of playing styles.
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist's specific string spacing needs.

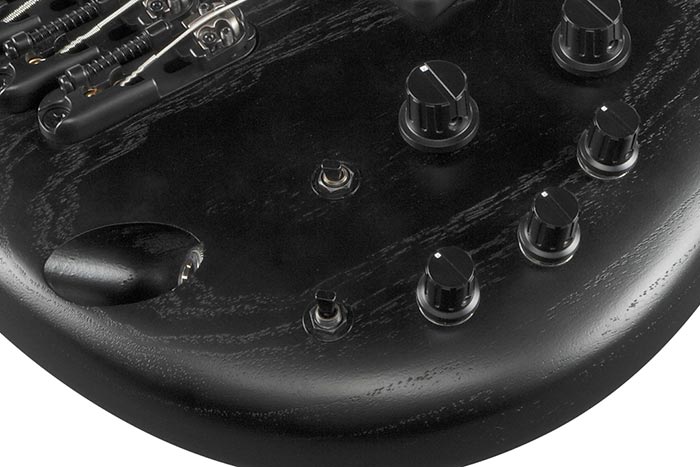

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch(passive tone control on treble pot) & 3-way Mid frequency switch
The Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
The EQ bypass control offers precision tonal adjustments, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.
The 3-way Mid frequency switch allow players to change the mid-tone between 250, 450, and 700 Hz.
