RG8570CST-NT
  • NT : Natural
  • COLOR VARIATION:
SHARE:
RG

SPEC

  • SPECS

    • neck type
    • RG j.custom Super Wizard 5pc Maple/Wenge neck
    • top/back/body
    • Exotic Maple topAfrican Mahogany body
    • fretboard
    • Bound Macassar Ebony fretboardAcrylic & Abalone block inlay
    • fret
    • Jumbo fretsj.custom fret edge treatment
    • number of frets
    • 24
    • bridge
    • Lo-Pro Edge bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
    • middle pickup
    • DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
    • bridge pickup
    • DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL120
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • nut
    • Locking nut
    • hardware color
    • Cosmo Black
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 17mm at 1F
      • d : Thickness
      • 19mm at 12F
      • Radius :
      • 430mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    RG8570CST's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

  • CONTROLS

    RG8570CST's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Gotoh® machine heads
    • Gotoh® Strap lock pins
    • Hardshell case included

Features

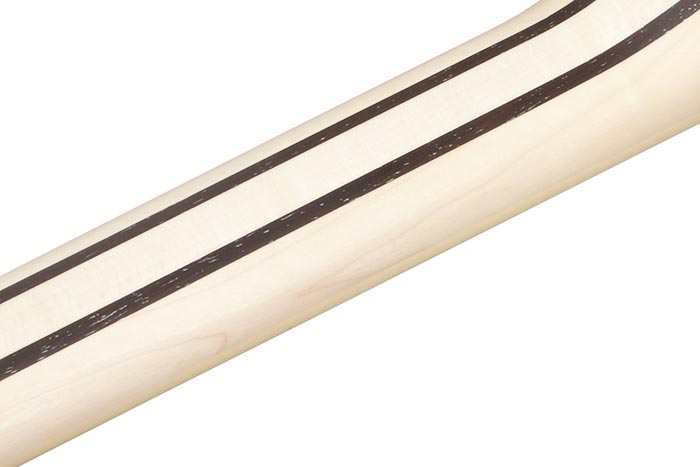

Super Wizard 5pc Maple/Wenge neck

Super Wizard 5pc Maple/Wenge neck

The Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.

Special j.custom Neck

Special j.custom neck

j.custom Super Wizard neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The ”Velvetouch” finish on the back of the neck ensures a ”just right” feel and easy playability.

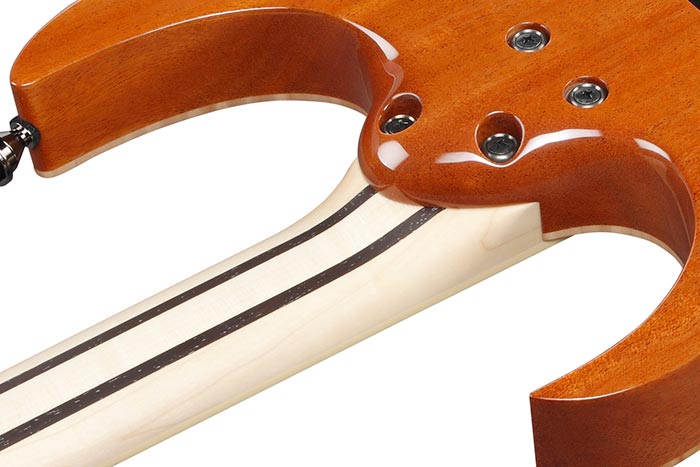

All Access Neck Joint

All Access Neck Joint

All Access Neck Joint offers superior playability at the high frets.

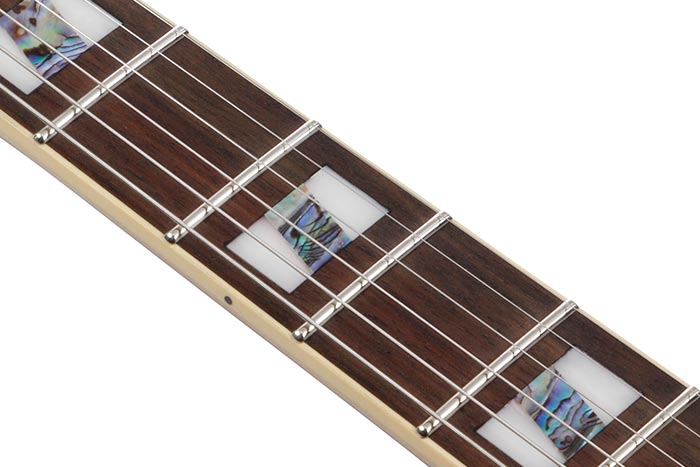

Macassar Ebony fretboard

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

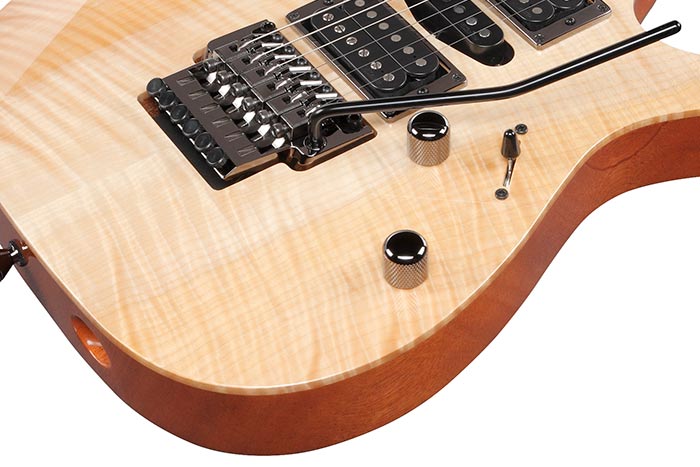

Exotic Maple top / African Mahogany body

Exotic Maple top / African Mahogany body

The stunning Exotic Maple top sonically enriches the response while picking. The African Mahogany body delivers a rich mid-low end.

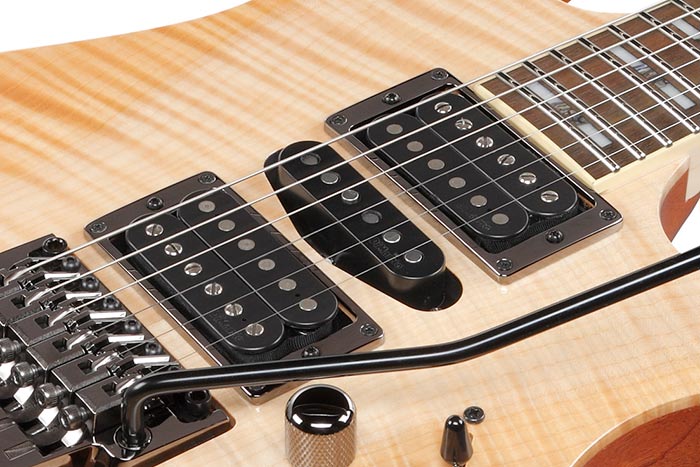

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

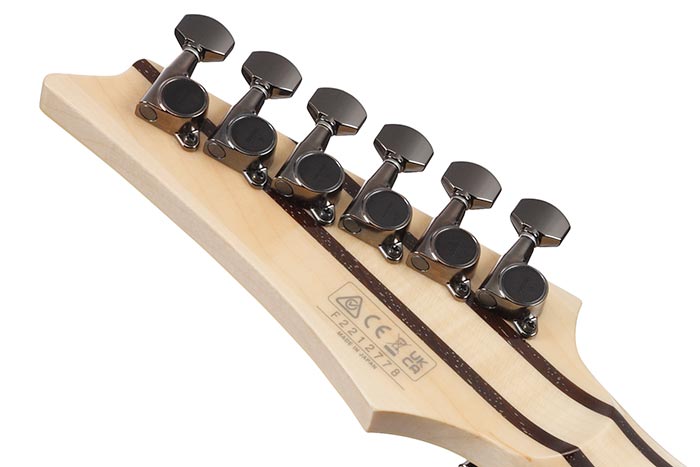

Gotoh® machine heads

Gotoh® machine heads

Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

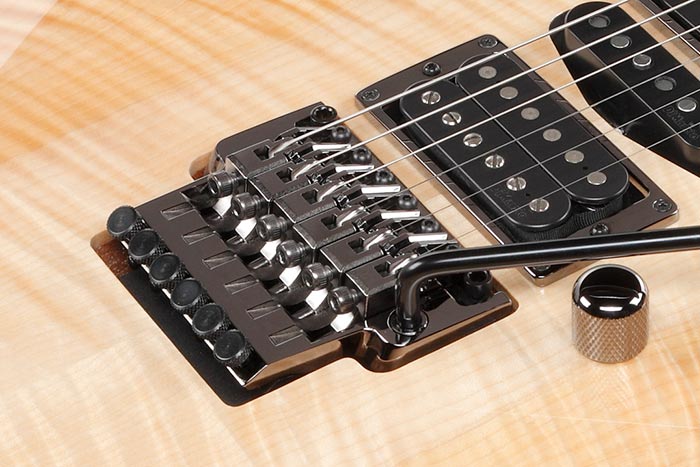

Lo-Pro Edge tremolo

Lo-Pro Edge tremolo

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

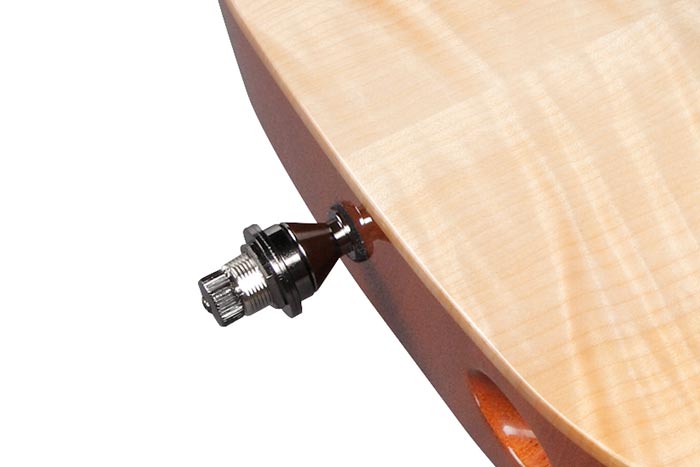

Gotoh® Strap lock pins

Gotoh® Strap lock pins

Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.
