PA300E-NSL
  • NSL : Natural Satin Top, Natural Low Gloss Back and Sides
  • COLOR VARIATION:
SHARE:
PA

SPEC

  • SPECS

    • body shape
    • Asymmetrical Jumbo body
    • bracing
    • Modified X-M Bracing
    • top
    • Solid German Spruce top
    • back & sides
    • Pau Ferro back & Pau Ferro sides
    • neck
    • PAAfrican Mahogany/Pau Ferro 5pc neck
    • fretboard
    • Macassar Ebony fretboard
    • bridge
    • Macassar Ebony top loading bridge
    • body binding
    • Flamed Maple body binding with rounded body edge
    • top board purfling
    • Wooden
    • soundhole rosette
    • Specially Designed Wooden
    • tuning machine
    • Chrome Die-cast tuners(18:1 gear ratio)
    • nut material
    • Unbleached Oil-impregnated Bone
    • number of frets
    • 20
    • saddle material
    • Unbleached Oil-impregnated Bone
    • strings
    • D'Addario® XTAPB1356
    • string gauge
    • .013/.017/.026/.035/.045/.056
    • string space
    • 11.4mm
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • pickup
    • Ibanez AP11 Magnetic, T-bar Undersaddle & Contact
    • preamp
    • Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume
    • output jack
    • Dual Outputs (Mono Out / Stereo Out)
  • NECK DIMENSIONS

      • Scale :
      • 655mm/25 3/4"
      • a : Width
      • 45mm at NUT
      • b : Width
      • 60mm at 14F
      • c : Thickness
      • 20.5mm at 1F
      • d : Thickness
      • 22mm at 7F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
      • 20 3/8"
      • b : Width
      • 17"
      • c : Max Depth
      • 4 7/8"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    PA300E's preamp diagram

    DESCRIPTION

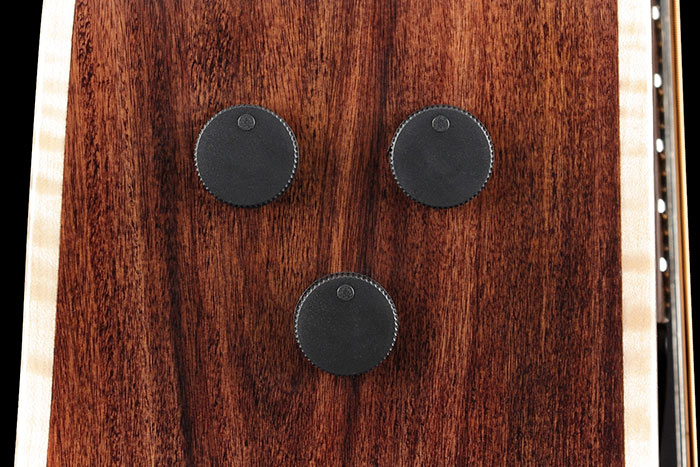

    Three knobs are located on the side of guitar in an inverted triangular configuration. When the controls are viewed with the guitar held vertically, the upper left-hand knob controls the magnetic pickup volume, the knob on the upper right-hand side controls the under-saddle pickup volume and the third knob at the bottom controls the contact pickup volume.

  • OTHER FEATURES

    • Gig bag included

Features

5pc African Mahogany/Pau Ferro neck

5pc African Mahogany/Pau Ferro neck

The African Mahogany and Pau Ferro 5pc neck has enhanced durability.

Macassar Ebony fretboard

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Macassar Ebony top loading bridge

Macassar Ebony top loading bridge

For a better percussive sound, the Macassar Ebony bridge features a top loading system without a bridgepin. It also offers a fast and easy method for string changes.

Asymmetric jumbo body

Asymmetric jumbo body

Developed for modern fingerstyle players, the asymmetric jumbo body features a low-end focused sound and tapping friendly shape

25 3/4 inch scale

25 3/4 inch scale

A 25 3/4 inch scale helps to maintain proper tension and pitch even while down tuning, a technique modern finger players often utilize. This scale-length also delivers improved sustain.

Modified X-M Bracing

With several years spent on research and development, Ibanez ultimately developed the exciting, new X-M bracing design. The carefully designed scalloped X-bracing, features strategically positioned tone and finger braces, which transmit string vibration more efficiently through the bridge to the body, greatly enhancing the quality and projection of the sound. This modified X-M Bracing design creates a highly responsive sound with a wide dynamic range, but it also emphasizes a focused low-end, which perfectly complements modern fingerstyle playing.

Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume

Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume

Ibanez Custom Electronics amplify the signal of each pickup naturally throughout the entire tonal spectrum. Blending the sound of the three pickups allows the player to create a variety of tones to suit their particular playing style or genre of music.

Ibanez AP11 Magnetic / T-bar Undersaddle / Contact pickups

Ibanez AP11 Magnetic / T-bar Undersaddle / Contact pickups

The AP11 pickup is small, lightweight, and positioned so it won’t inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar’s natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others. The T-bar under-saddle pickup reduces noise and provides wide range of natural piezo-style sound. It also captures palm hits and delivers a bass drum-like response. Since it’s placed on the neck block, the Ibanez Block contact pickup is resistant to feedback and evenly captures percussive sound from the body to the neck. It also adds air and brightness to the piezo-style sound by capturing acoustic tones from within the body. The Contact pickup consists of three transducers facilitating organic individual note clarity and naturally reproduces percussive body tapping techniques. This pickup also adds an airy depth of tone and brightness to the amplified sound.

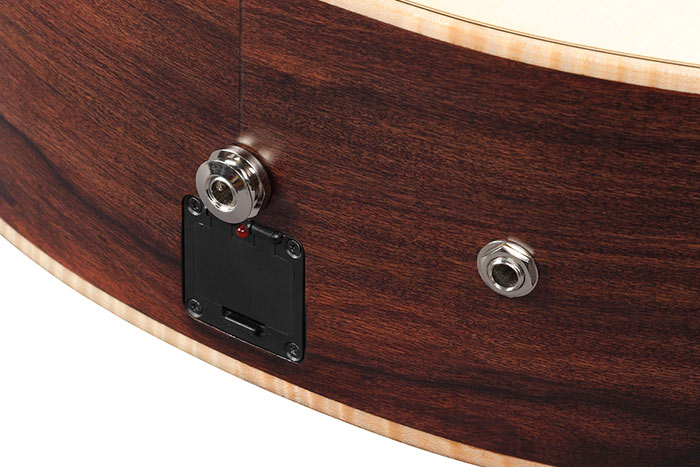

Dual Outputs (Magnetic/Undersaddle/Contact pickup outputs)

Dual Outputs (Magnetic/Undersaddle/Contact pickup outputs)

Plugged into the endpin jack only: Magnetic pickup + Undersaddle pickup + Contact pickup with mixed output
Plugged into both the endpin jack and the open jack: Endpin Jack = Magnetic pickup output, Open Jack = Undersaddle + Contact pickup with Mixed output

Gig bag included

Gig bag included

Ibanez Gig bags are made out of durable materials.
