JS2450-MCP
  • MCP : Muscle Car Purple
  • COLOR VARIATION:
SHARE:
JS

SPEC

  • SPECS

    • neck type
    • JS3pc Maple/Bubinga neck
    • top/back/body
    • Alder body
    • fretboard
    • RosewoodMother of Pearl dot inlay
    • fret
    • Medium fretsPrestige fret edge treatment
    • bridge
    • Edge tremolo bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® Satch Track™ (H) neck pickupPassive/Ceramic
    • bridge pickup
    • DiMarzio® Mo' Joe™ (H) bridge pickupPassive/Alnico
    • equaliser
    • Hi-pass filter on volume control (push/pull)
    • factory tuning
    • 1E, 2B, 3G, 4D, 5A, 6E
    • strings
    • D'Addario® EXL120
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • hardware color
    • Chrome
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 42.8mm at NUT
      • b : Width
      • 56.4mm at 21F
      • c : Thickness
      • 20mm at 1F
      • d : Thickness
      • 22.3mm at 12F
      • Radius :
      • 250mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    JS2450's Switching system diagram

    DESCRIPTION

    Coil tap is turned on by pulling up the tone knob. When coil tap is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in center position, the neck and bridge pickups are selected. When the switch is in bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch in in neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the neck side of the bridge pickup is selected.

  • CONTROLS

    JS2450's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there are two knobs near the lower bout of the guitar. The knob closest to the end of the body is the tone knob, and the knob closer to the neck is the volume knob. The tone knob also works as a coil tap switch, and the volume knob also works as a high pass filter switch. There is a three-way pickup selector switch between these two knobs.

  • OTHER FEATURES

    • Hardshell case included
    • Hi-pass filter on volume control (push/pull)
    • Coil-tap switch on tone control (push/pull)
    • Ultralite Tremolo Arm™ included

Features

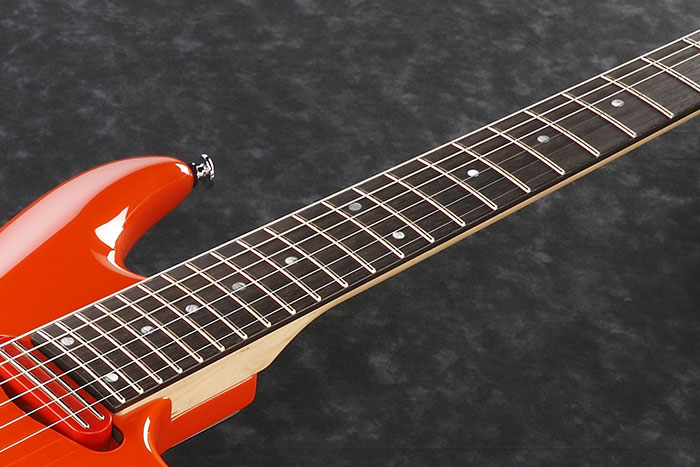

JS 3pc Maple/Bubinga neck

JS 3pc Maple/Bubinga neck

JS features Maple/Bubinga neck. The Bubinga stripe provides stability and longer sustain.

24 Frets

24 Frets

DiMarzio Pickups & 24 frets

DiMarzio® Pickups & 24 frets

The first 24-fret fingerboard JS model is Joe Satriani's newest adventure in guitars and includes his favorite DiMarzio® pickups.

High-pass Filter/Coil-tap Switch

High-pass Filter/Coil-tap Switch

A high pass filter on volume pots maintains highs at low volumes and a push/pull coil tap adds sound and tonal variations for both pickups.

JS/Edge Tremolo

JS/Edge Tremolo

The legendary, original Edge tremolo bridge is back, always Joe's favorite in feel and tone.

Hardshell case included

Hardshell case included
