JCRG2203
  • COLOR VARIATION:
SHARE:
RG

SPEC

  • SPECS

    • neck type
    • RG j.custom Wizard5pc Maple/Purpleheart neck
    • top/back/body
    • Burl Maple (4mm) topSwamp Ash body
    • fretboard
    • Birdseye Maple fretboardMatching color dot inlay
    • fret
    • Jumbo Jescar Stainless Steel fretsj.custom fret edge treatment
    • number of frets
    • 24
    • bridge
    • Lo-Pro Edge bridge
    • string space
    • 10.8mm
    • neck pickup
    • Seymour Duncan® JAZZ model™ (H) neck pickupPassive/Alnico
    • bridge pickup
    • Seymour Duncan® Custom 5™ (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL120
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • nut
    • Locking nut
    • hardware color
    • Chrome
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 18mm at 1F
      • d : Thickness
      • 20mm at 12F
      • Radius :
      • 430mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    JCRG2203's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

  • CONTROLS

    JCRG2203's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Gotoh® machine heads
    • Gotoh® Strap lock pins
    • Hardshell case included
    • Luminlay side dots

Features

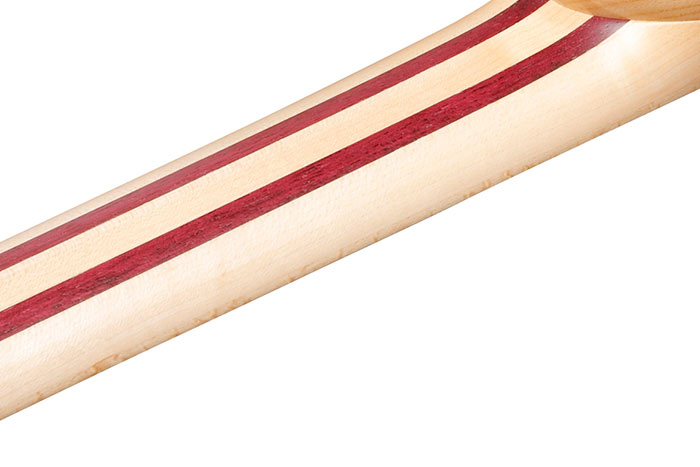

Wizard 5pc Maple/Purpleheart neck

Wizard 5pc Maple/Purpleheart neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

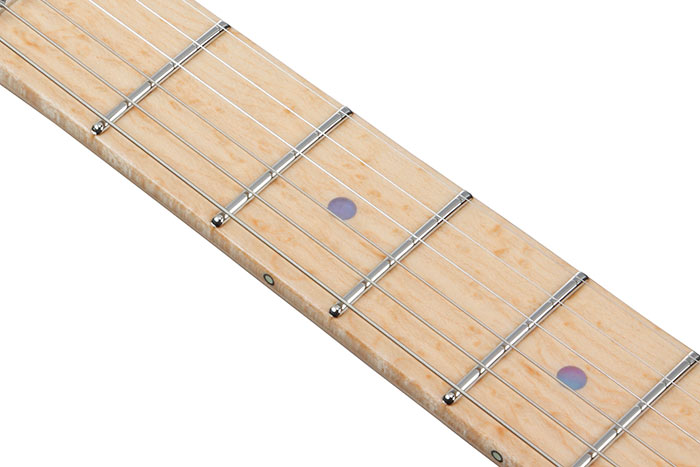

Birdseye Maple fretboard

Birdseye Maple fretboard

Birdseye Maple has a unique wood grain and features a well-balanced tonal character from low to high end.

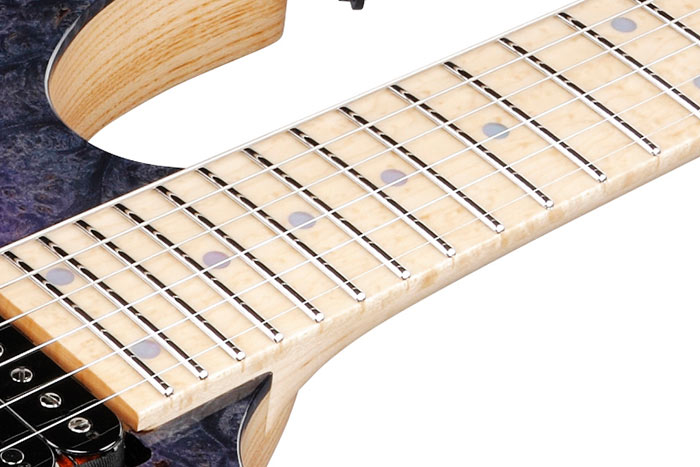

Jumbo Jescar Stainless Steel frets

Jumbo Jescar Stainless Steel frets

Jescar Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

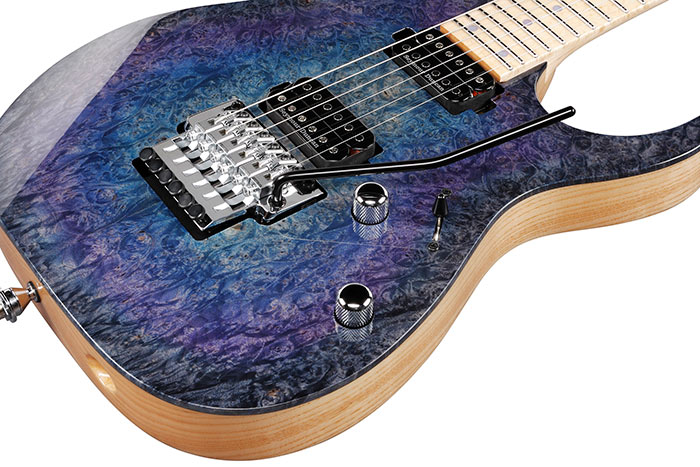

Burl Maple (4mm) top / Swamp Ash body

Burl Maple (4mm) top / Swamp Ash body

A stunning Maple Burl top on a Swamp Ash body produces sparkling highs and rich harmonics.

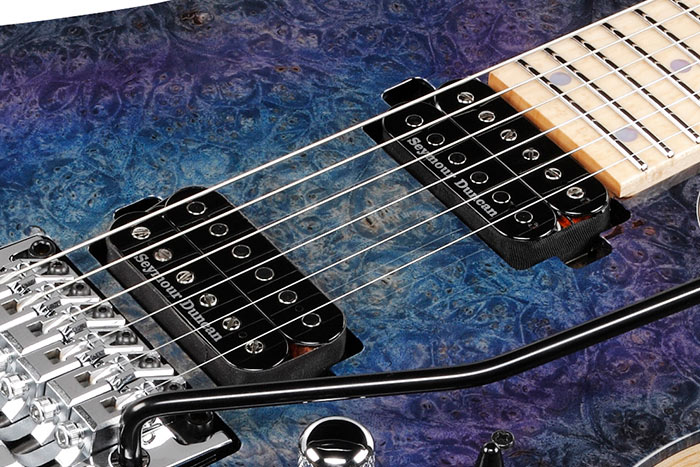

Seymour Duncan® JAZZ model™ / Custom 5™ pickups

Seymour Duncan® JAZZ model™ and Custom 5™ pickups provide a balanced and warm tone.

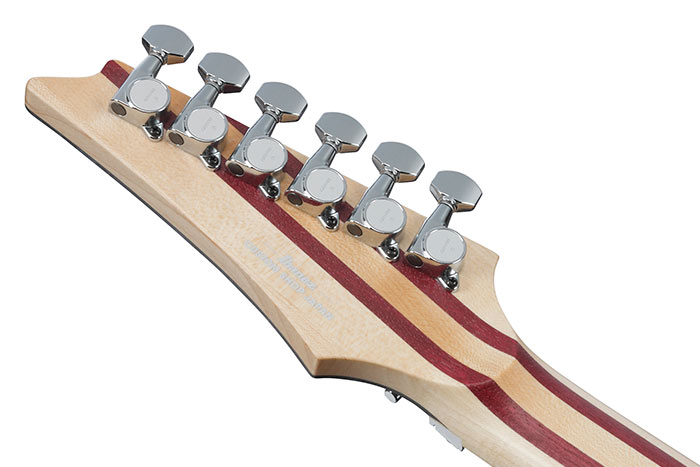

Gotoh® machine heads

Gotoh® machine heads

Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

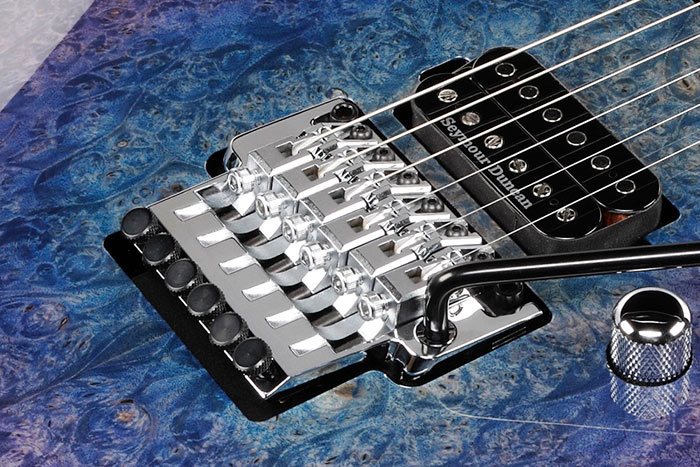

Lo-Pro Edge tremolo

Lo-Pro Edge tremolo

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

Gotoh® Strap lock pins

Gotoh® Strap lock pins

Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.

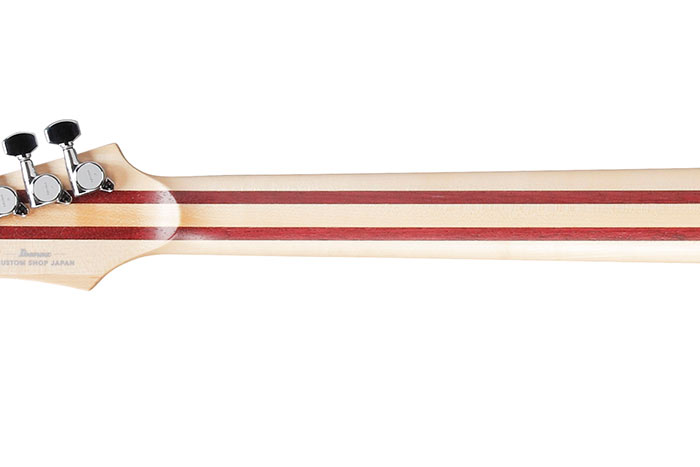

Special j.custom Neck

Special j.custom Neck

j.custom Super Wizard neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The "Velvetouch" finish on the back of the neck ensures a "just right" feel and easy playability.

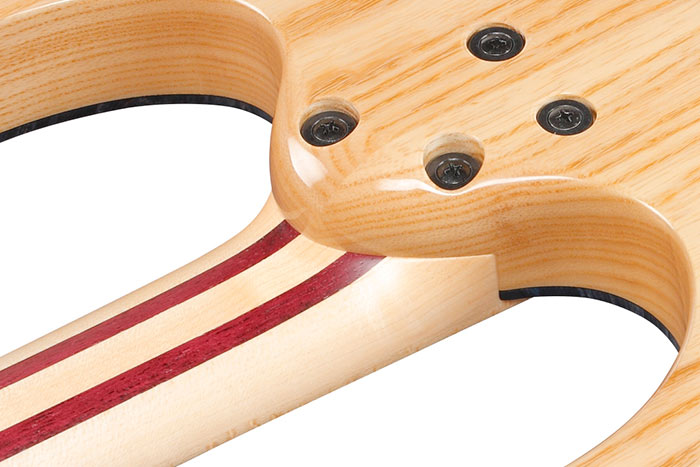

All Access Neck Joint

All Access Neck Joint

All Access Neck Joint offers superior playability at the high frets.
