JCRG2201
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- RG j.custom Wizard3pc Wenge/Purpleheart neck
- top/back/body
- Figured Japanese Persimmon topBlack Limba body
- fretboard
- Ebony fretboardMother of Pearl dot inlay
- fret
- Jumbo Stainless Steel fretsj.custom fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
- middle pickup
- DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Satin Gold
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 18mm at 1F
- d : Thickness
- 20mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Gotoh® machine heads
- Gotoh® Strap lock pins
- Hardshell case included
- Luminlay side dots
Features

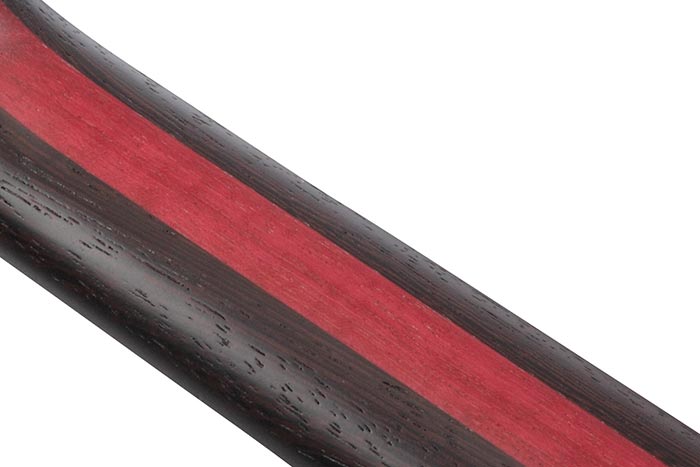

Wizard 3pc Wenge/Purpleheart neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

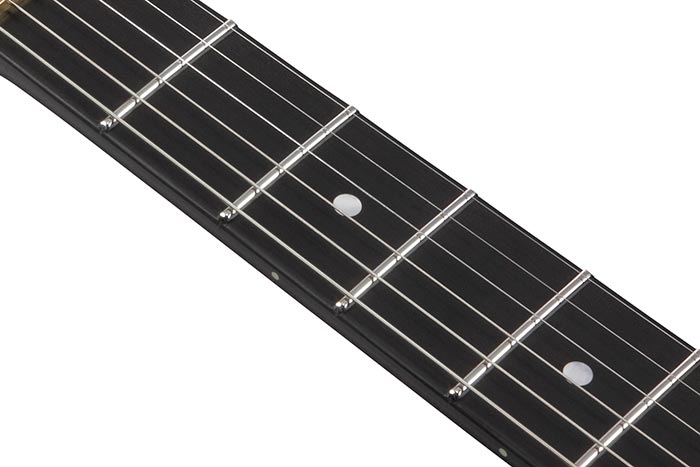

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

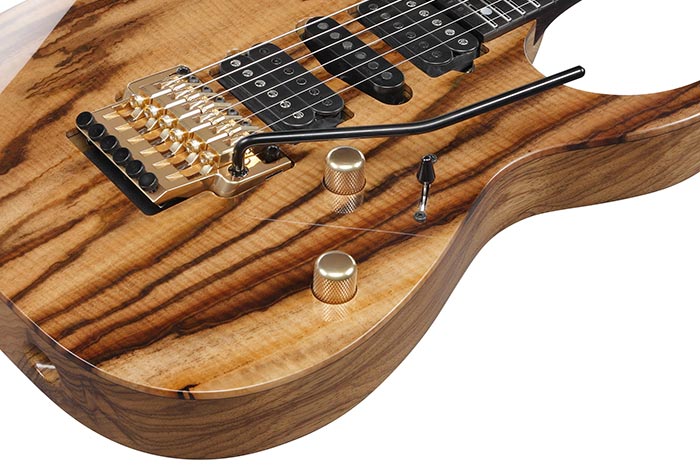

Figured Japanese Persimmon top / Black Limba body
The extremely rare Figured Japanese Persimmon top which offers a stunning wood grain and provides a quick response and bright attack and Black Limba body combined adds a rich mid-range.

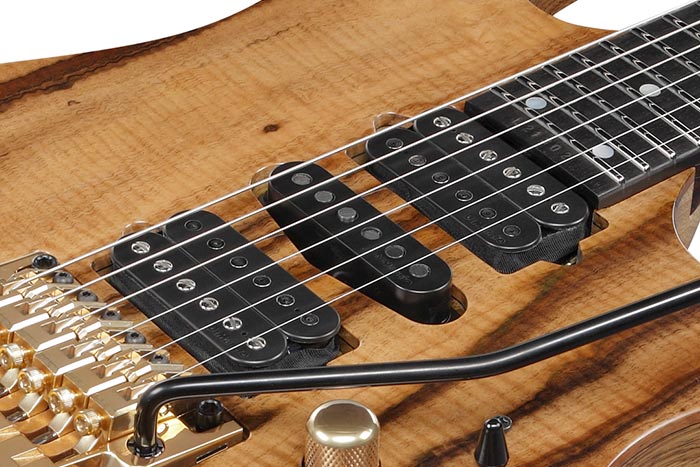

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

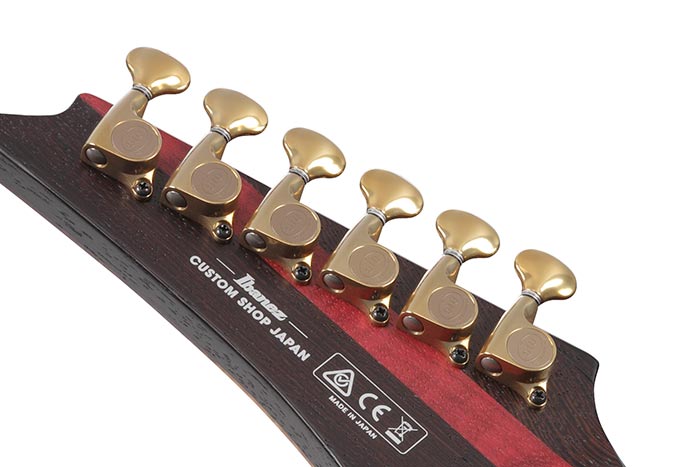

Gotoh® machine heads
Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

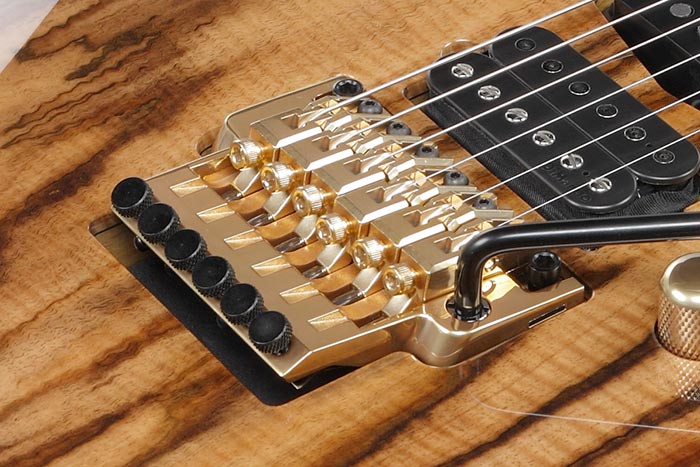

Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

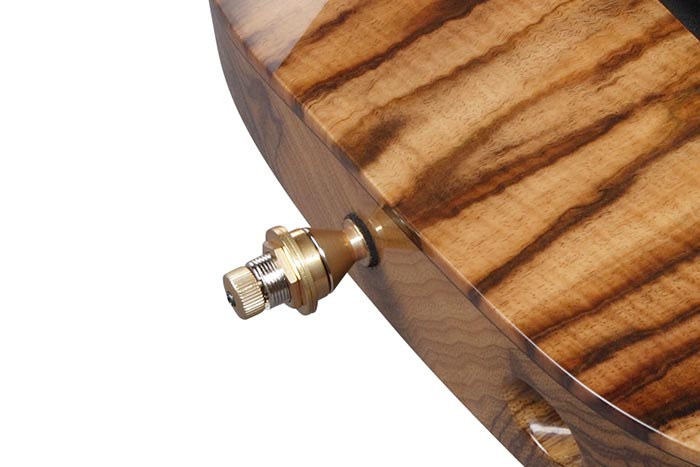

Gotoh® Strap lock pins
Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.

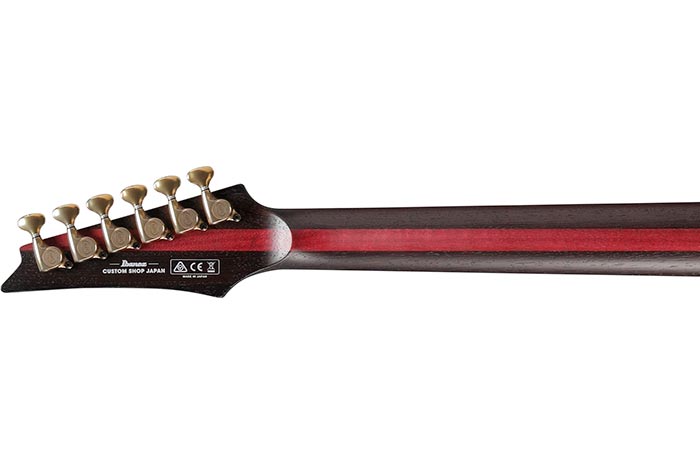

Special j.custom Neck
j.custom Super Wizard neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The "Velvetouch" finish on the back of the neck ensures a "just right" feel and easy playability.

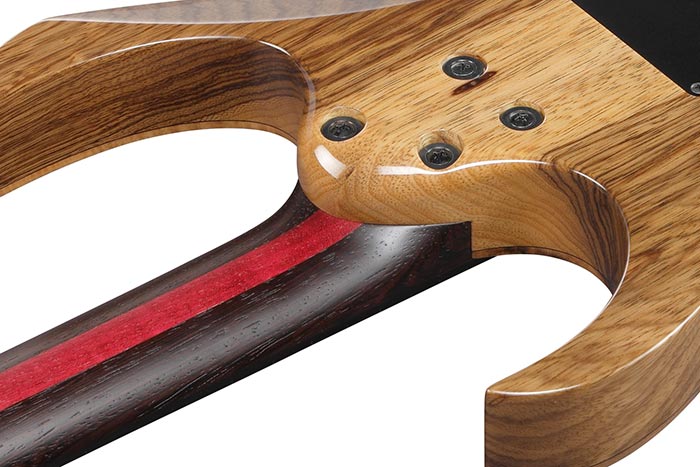

All Access Neck Joint
All Access Neck Joint offers superior playability at the high frets.
