JCRG2101
SHARE:
RG

SPEC

  • SPECS

    • neck type
    • RG j.custom Wizard3pc Wenge/Maple neck
    • top/back/body
    • Burl Maple & Blue Resin topSwamp Ash body
    • fretboard
    • Ebony fretboardOff-set Luminlay dot inlay
    • fret
    • Jumbo Stainless Steel fretsj.custom fret edge treatment
    • number of frets
    • 24
    • bridge
    • Lo-Pro Edge bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
    • middle pickup
    • DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
    • bridge pickup
    • DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL120
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • nut
    • Locking nut
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 18mm at 1F
      • d : Thickness
      • 20mm at 12F
      • Radius :
      • 430mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    JCRG2101's Switching system diagram

    DESCRIPTION

    When coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is in between neck and center position, the neck side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge position, the center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected. When coil tap is on and the pickup selector switch is in neck position, the neck side of the neck humbucker is selected. When the switch is in between neck and center position, the neck side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge pickup, the center pickup and bridge side of the bridge humbucker are selected.

  • CONTROLS

    JCRG2101's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. On the lower edge of the body, towards the neck, is the five-way selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is a coil tap switch. When the switch is in neck position, coil tap is on. When the switch is in bridge position, coil tap is off.

  • OTHER FEATURES

    • Gotoh® machine heads
    • Gotoh® Strap lock pins
    • Hardshell case included
    • Luminlay side dots
    • Coil-tap switch

Features

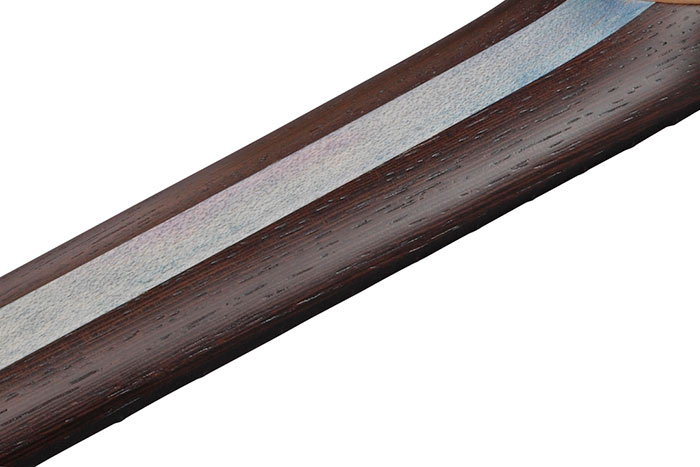

Wizard 3pc Wenge/Maple neck

Wizard 3pc Wenge/Maple neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

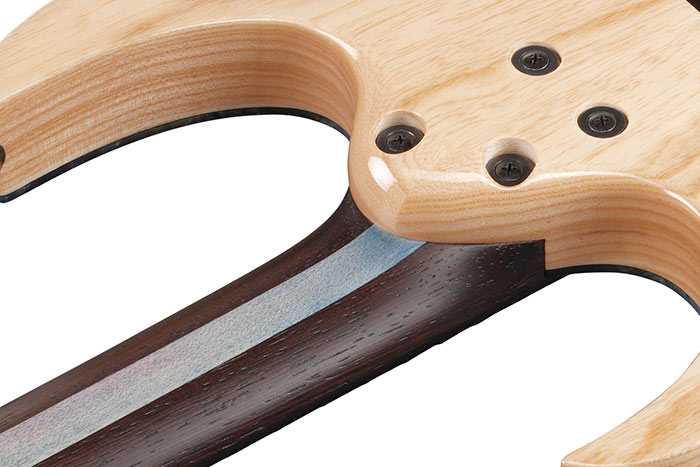

All Access Neck Joint

All Access Neck Joint

All Access Neck Joint offers superior playability at the high frets.

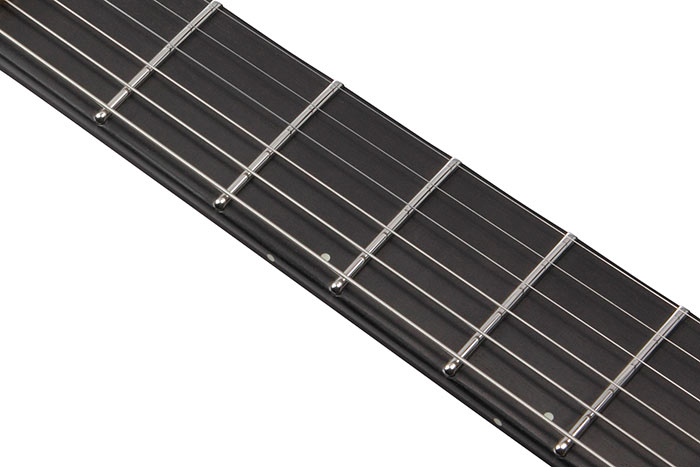

Ebony fretboard

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

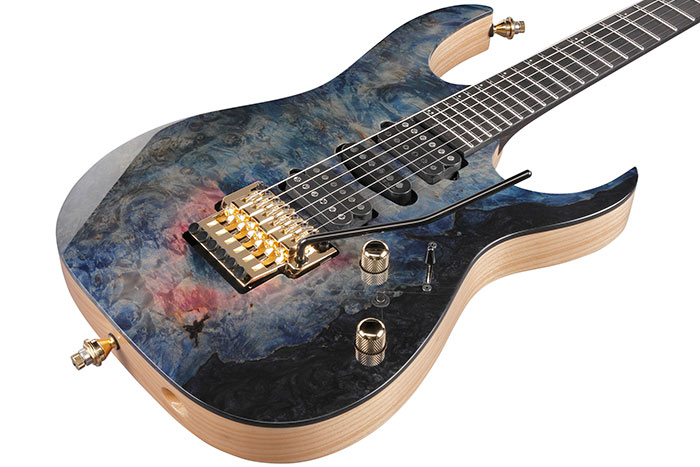

Burl Maple & Blue Resin top / Swamp Ash body

Burl Maple & Blue Resin top / Swamp Ash body

A stunning Maple Burl/Blue Resin top on a Swamp Ash body produces sparkling highs and rich harmonics.

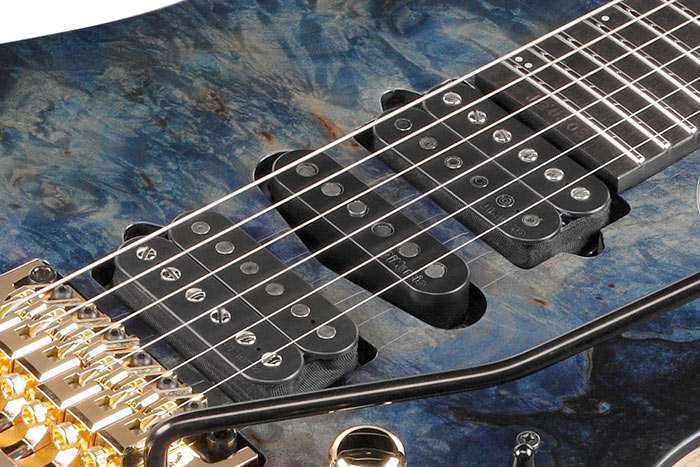

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

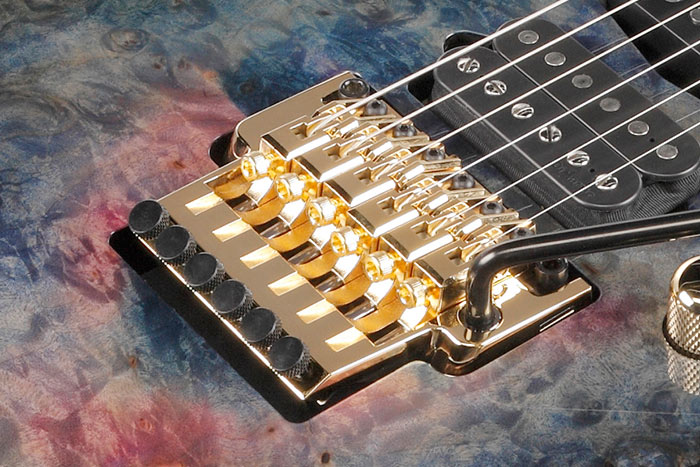

Lo-Pro Edge tremolo

Lo-Pro Edge tremolo

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

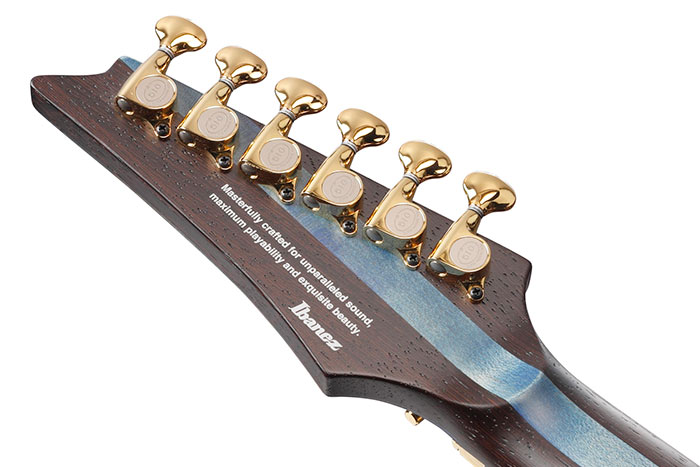

Gotoh® machine heads

Gotoh® machine heads

Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

Luminlay side dot inlays

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
