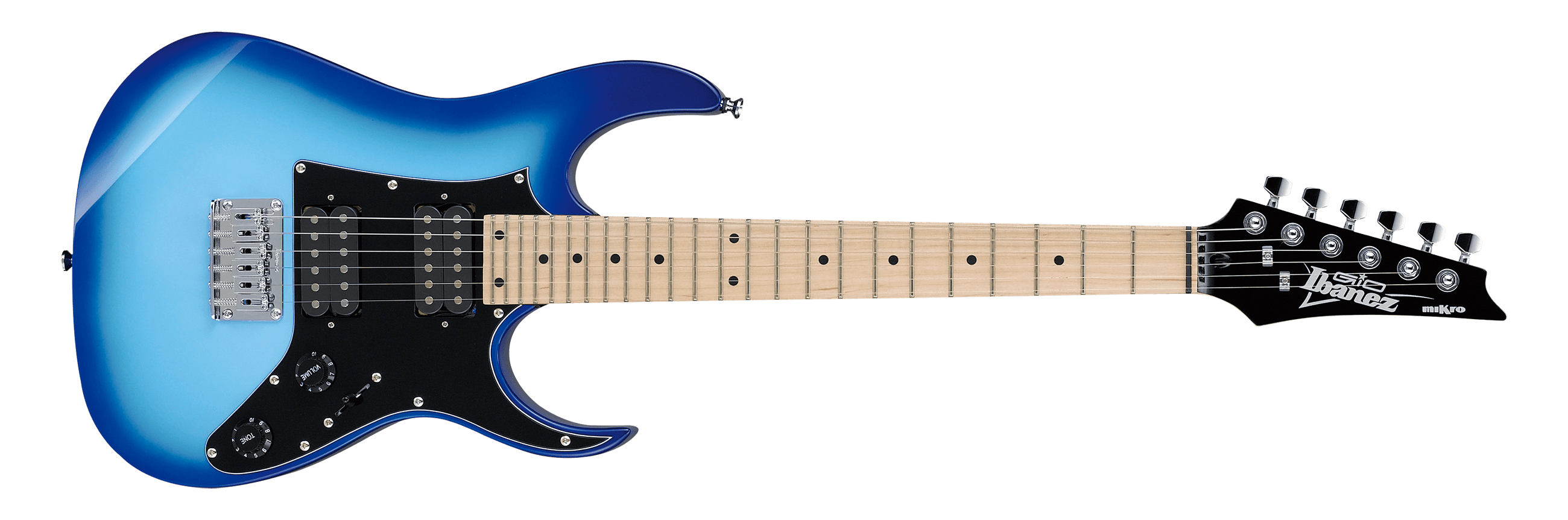

GRGM21M-WNS
GRGM21M-BLT
  • WNS : Walnut Sunburst
  • BLT : Blue Burst
  • COLOR VARIATION:
SHARE:
miKro

SPEC

  • SPECS

    • neck type
    • GRGM Maple neck
    • top/back/body
    • Poplar body
    • fretboard
    • Maple fretboardBlack dot inlay
    • fret
    • Medium frets
    • number of frets
    • 24
    • bridge
    • Ibanez F106 bridge
    • string space
    • 10.5mm
    • neck pickup
    • Infinity R (H) neck pickupPassive/Ceramic
    • bridge pickup
    • Infinity R (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • -
    • string gauge
    • .010/.013/.017/.026/.036/.046
    • nut
    • Plastic
    • hardware color
    • Chrome
  • NECK DIMENSIONS

      • Scale :
      • 564mm/22.2"
      • a : Width
      • 41mm at NUT
      • b : Width
      • 56mm at 24F
      • c : Thickness
      • 19.5mm at 1F
      • d : Thickness
      • 21.5mm at 12F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    GRGM21M's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

  • CONTROLS

    GRGM21M's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

Features

Maple neck

Maple neck

The Maple neck provides stability and bright tonal character.

Maple fretboard

Maple fretboard

The Maple fretboard provide crisp, bright highs and strong upper mids.

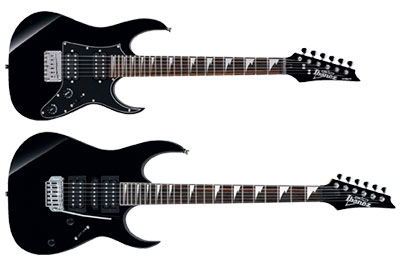

Size Comparison

Size Comparison
