EKM100-WRD
  • WRD : Wine Red
  • COLOR VARIATION:
SHARE:
EKM

SPEC

  • SPECS

    • neck type
    • EKM African Mahoganyset-in neck
    • top/back/side
    • Figured Anigre top Figured Anigre backFigured Anigre sides
    • fretboard
    • Bound EbonyAcrylic & Abalone block inlay
    • fret
    • Jumbo fretsPrestige fret edge treatment
    • number of frets
    • 22
    • bridge
    • Gotoh® 510BN bridge
    • string space
    • 10.4mm
    • tailpiece
    • Gotoh® GE101A tailpiece
    • neck pickup
    • DiMarzio® PAF® 36th Anniversary (H) neck pickupPassive/Alnico
    • bridge pickup
    • DiMarzio® PAF® 36th Anniversary (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E, 2B, 3G, 4D, 5A, 6E
    • string gauge
    • .011/.014/.018/.030/.042/.052
    • nut
    • Bone nut
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 628mm/24.7"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 57mm at 22F
      • c : Thickness
      • 23mm at 1F
      • d : Thickness
      • 26mm at 12F
      • Radius :
      • 305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
      • 18 1/4"
      • b : Width
      • 15 3/4"
      • c : Max Depth
      • 2 5/8"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • SWITCHING SYSTEM

    EKM100's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    EKM100's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.

  • OTHER FEATURES

    • Gotoh® MAGNUM LOCK locking machine heads
    • Hardshell case included

Features

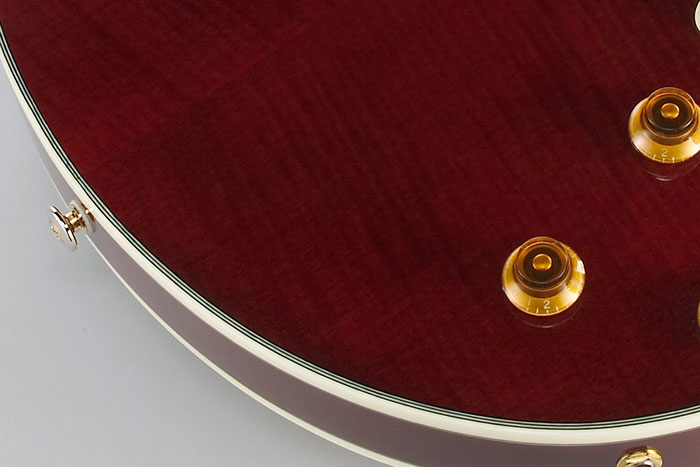

Figured Anigre top/back/sides

Figured Anigre top/back/sides

Figured Anigre features a beautiful wood grain which produces a rich mid range and smooth attack on high end.

Gotoh MAGNUM LOCK locking machine heads

Gotoh® MAGNUM LOCK locking machine heads

The MAGNUM LOCK locking machine heads offer incredible tuning stability.

DiMarzio PAF 36th Anniversary Pickups

DiMarzio® PAF® 36th Anniversary Pickups

The DiMarzio® PAF® 36th Anniversay pickups delivers sweet tone, perfect balance between warmth and clarity, the ability to go from clean to distorted by pick attack alone.

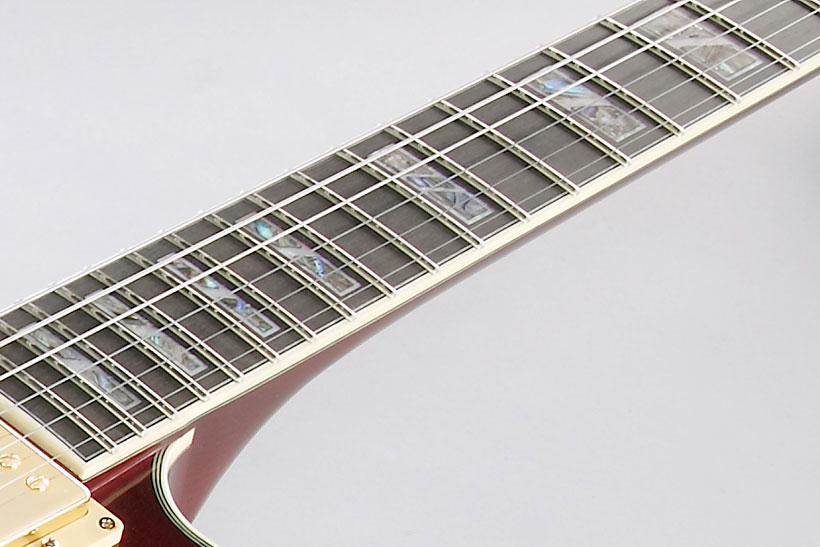

Ebony Fretboard

Ebony fretboard

Ebony produces a tight low end and mid-range with a defined high end attack. It also delivers quick response and rich sustain.

EKM100 neck

EKM100 neck

The thicker profiled EKM neck is an exact copy of his own custom guitar's, delivering fatter tone.

Hardshell case included

Hardshell case included
