ATZ100-SBT
  • SBT : Sunburst Flat
  • COLOR VARIATION:
SHARE:
AT

SPEC

  • SPECS

    • neck type
    • ATZ S-TECH WOOD 1pc Roasted Maple neck
    • top/back/body
    • Alder body
    • fretboard
    • S-TECH WOOD Roasted Maple fretboardBlack dot inlay
    • fret
    • Jumbo Stainless Steel fretsPrestige fret edge treatment
    • number of frets
    • 22
    • bridge
    • Wilkinson®-Gotoh® VSVG tremolo bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® The Cruiser® (H) neck pickupPassive/Ceramic
    • middle pickup
    • DiMarzio® The Cruiser® (H) middle pickupPassive/Ceramic
    • bridge pickup
    • DiMarzio® The Cruiser® (H) bridge pickup
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL110
    • string gauge
    • .010/.013/.017/.026/.036/.046
    • nut
    • Bone
    • hardware color
    • Chrome
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 40.5mm at NUT
      • b : Width
      • 56mm at 21F
      • c : Thickness
      • 21mm at 1F
      • d : Thickness
      • 23mm at 12F
      • Radius :
      • 305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    ATZ100's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. when the switch is in between neck and center position, the neck and center pickups are selected. When the switch is in center position, the center pickup is selected. When the switch is in between center and bridge position, the center and bridge pickups are selected. When the switch is in bridge position, the bridge pickup is selected.

  • CONTROLS

    ATZ100's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is a five-way pickup selector switch close to the lower edge of the body. Additionally, there are three knobs arranged diagonally near the end of the body. From the end of the body towards the neck they are; bridge tone, neck and middle tone, and the volume knob.

  • OTHER FEATURES

    • Gotoh ® Magnum Lock machine heads w/H.A.P.
    • Hardshell case included

Features

Wilkinson-Gotoh VSVG tremolo bridge

Wilkinson®-Gotoh® VSVG tremolo bridge

The Wilkinson®-Gotoh® VSVG tremolo unit features smooth arm action and the unique design of its elongated baseplate screw holes help promote accurate pitch return by eliminating binding. Its locking bent-steel saddles provide a vintage tone and feel.

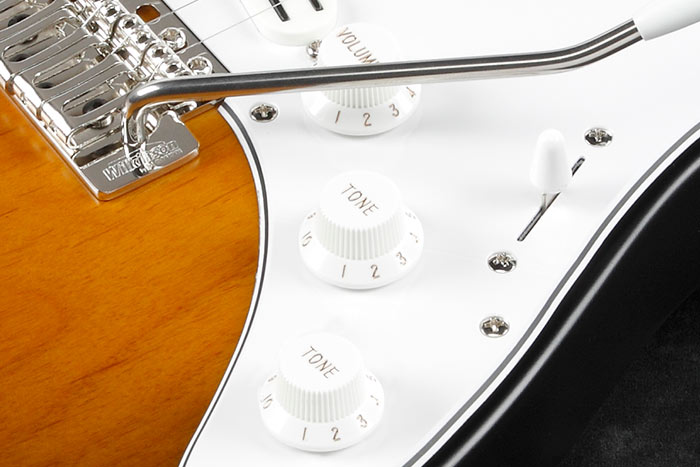

Smooth taper volume filter

Smooth taper volume filter

A smooth taper volume filter maintains the guitar’s high frequencies at low volumes and provides more uniform tone from 1 to 10.

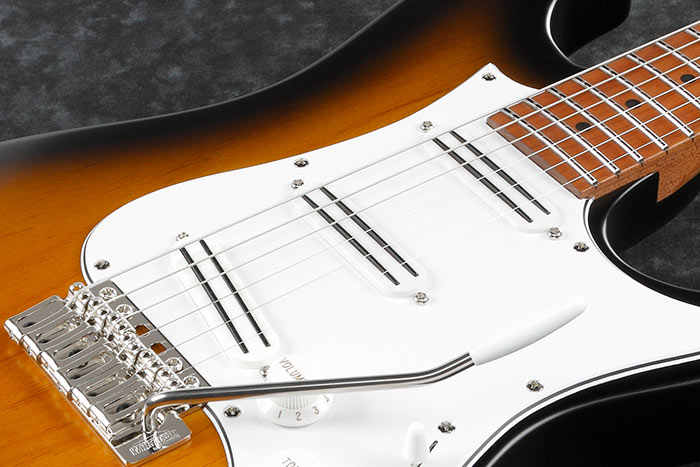

DiMarzio The Cruiser Pickups

DiMarzio® The Cruiser® Pickups

The combination of DiMarzio® The Cruiser® pickups deliver single-coil tone, open vocal-sounding mids and a bit of added strength to the bass. These pickups also relieve players of string drop-outs and sustain-killing magnet pull.

Oil-impregnated Bone nut /Stainless Steel Frets

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

S-TECH WOOD Roasted Maple fretboard w/Black dot inlay

S-TECH WOOD Roasted Maple fretboard w/Black dot inlay

S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

Gotoh Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

The AZ comes with GOTOH® MAGNUM LOCK® machine heads, which have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Hardshell case included

Hardshell case included
