- neck type
- Nitro Wizard 5pc Panga Panga/Walnut neck
- Flamed Maple topNyatoh body
- Macassar Ebony fretboardWhite Step off-set dot inlay
- Jumbo Sub Zero treated frets
- number of frets
- Gibraltar Standard II bridge
- string space
- neck pickup
- Bare Knuckle Aftermath (H) neck pickupPassive/Alnico
- bridge pickup
- Bare Knuckle Aftermath (H) bridge pickupPassive/Ceramic
- factory tuning
- D'Addario® EXL110
- string gauge
- hardware color
- Cosmo black
- Scale :
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
With the guitar held in the playing position, there are two switches along the lower edge of the guitar. The switch closest to the direction of the neck is a three-way pickup selector switch, the other switch, closer to the input jack is a coil tap switch. When the coil tap switch is in neck position, the coil tap is on, and when the switch is in bridge position, the coil tap is off. The knob right above the three-way pickup selector switch is the volume knob.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Gibraltar Standard II bridge
The Gibraltar Standard II is a simple fixed bridge designed provide optimal transfer of each string's vibration and its smooth surface maximizes playing comfort.
The coil tap switch adds sound and tonal variations for both pickups.

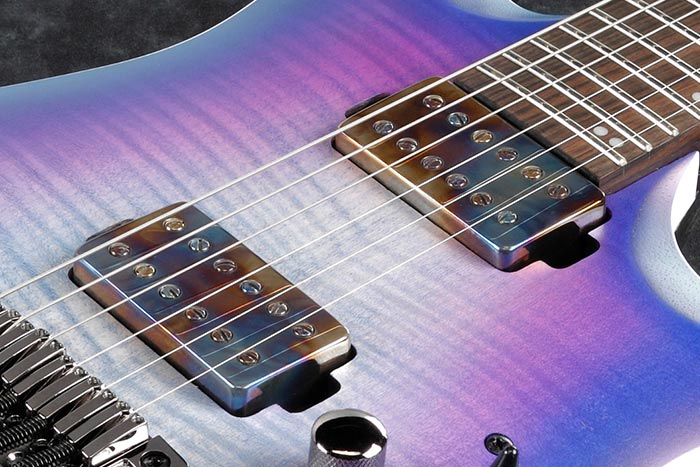

Bare Knuckle Aftermath pickups
Bare Knuckle Aftermath pickups deliver a bright and wickedly expressive tone, transmitting a quick bottom-end response for picking and fast riffing along with a dynamic midrange and precise high-end articulation.
Sub Zero Treated Frets
The Sub Zero treated frets can stand up against the hardest riffing and string-bending.
Luminescent side dot inlays
The luminescent side dot inlays make it easy for players to perform on dark stages, matching the dazzling luminescent Ibanez headstock logo.
Schaller S-Lock strap lock pins
Indestructible Schaller S-Locks don't fail, even under the toughest conditions on stage.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
