- neck type
- RG j.custom Super Wizard 5pc Maple/Wenge neck
- AAA Flamed Maple (4mm) topAfrican Mahogany body
- Bound Macassar Ebony fretboardTree of Life inlay
- Jumbo fretsj.custom fret edge treatment
- number of frets
- Edge-Zero tremolo bridge w/ZPS3
- string space
- neck pickup
- DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
- middle pickup
- DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- D'Addario® EXL120
- string gauge
- hardware color
- Cosmo Black
- Scale :
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
- Recommended Bag
- Gotoh® machine heads
- Gotoh® Strap lock pins
- Hardshell case included

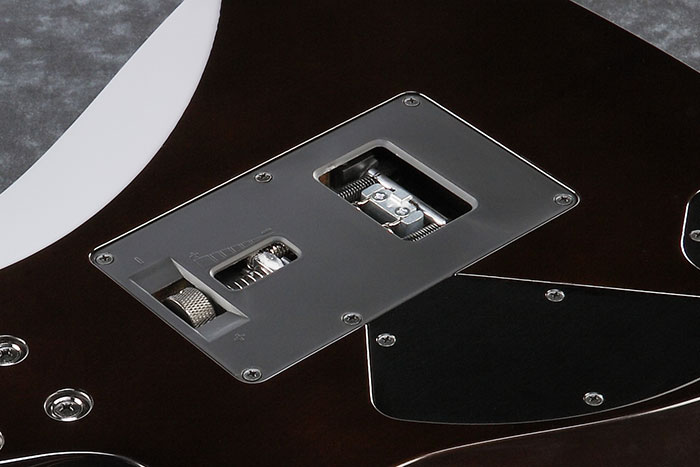

The Edge-Zero has a sharp knife-edge for extremely accurate tremolo playing. This tremolo also uses Ibanez innovations to keep string action constant and the bridge surface smooth. The specially designed arm socket prevents unnecessary wobble from the arm while providing full control over the arm's torque.
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

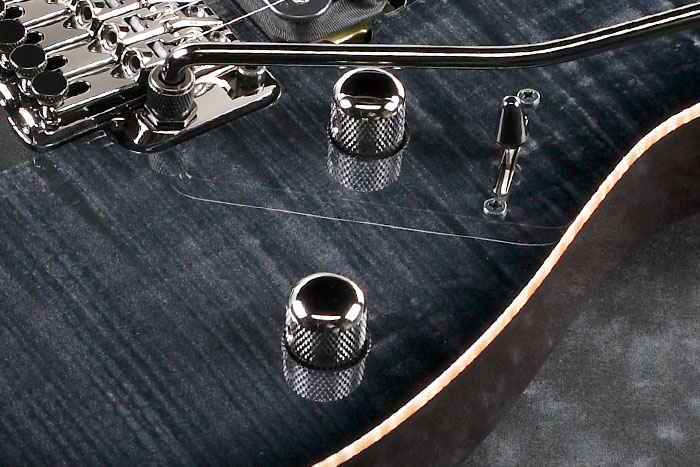

Easy Access Control Knobs
Recessed control knobs for better playability.
All Access Neck Joint
j.custom special neck joint offers superior playability at the high frets.
Flamed Maple Top
AAA Flamed Maple top with beautiful natural body binding.
Selected Macassar Ebony fretboard with Flamed Maple binding and Tree of life inlay.
Hardshell case included
