PIA/JEM/UV

SPEC

  • SPEC

    • neck type
    • PIA5pc Maple/Walnut
    • top/back/body
    • Alder body
    • fretboard
    • Rosewood fretboardPIA Blossom inlay
    • fret
    • Jumbo Stainless Steel fretsPrestige fret edge treatment
    • number of frets
    • 24
    • bridge
    • Edge tremolo bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® UtoPIA™ (H) neck pickupPassive/Ceramic
    • middle pickup
    • DiMarzio® UtoPIA™ (S) middle pickupPassive/Alnico
    • bridge pickup
    • DiMarzio® UtoPIA™ (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL120
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • nut
    • Locking nut
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 18mm at 1F
      • d : Thickness
      • 20mm at 12F
      • Radius :
      • 430mmR
  • SWITCHING SYSTEM

  • CONTROLS

  • OTHERS

    • Hardshell case included
    • Gotoh® machine heads
    • Luminlay side dots
    • Scalloped Fingerboard on 21-24 Frets
    • Ultralite Tremolo Arm™ included

Features

PIA Blossom inlay

PIA Blossom inlay

The newly designed PIA Blossom inlay is gorgeous, prominent, and elegantly imparts Steve Vai’s trademark style and artistic vision.

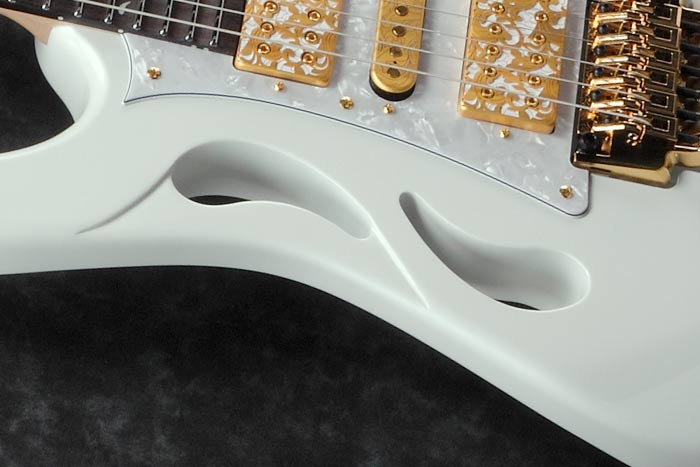

Petal grip

Petal Grip

Exclusively designed for the PIA, the new Petal Grip offers a balanced, contemporary design aesthetic. It’s also meant to symbolize unity, companionship, and interpersonal bonds.

DiMarzio® UtoPIA™ pickups

DiMarzio® UtoPIA™ pickups

Based on Steve's latest tonal preferences, DiMarzio® UtoPIA™ pickups are voiced for smoother highs, more scooped mids, and more pronounced low-end. The pickups incorporate beautiful aesthetics and design elements meant to complement the cosmetic features of the guitar.

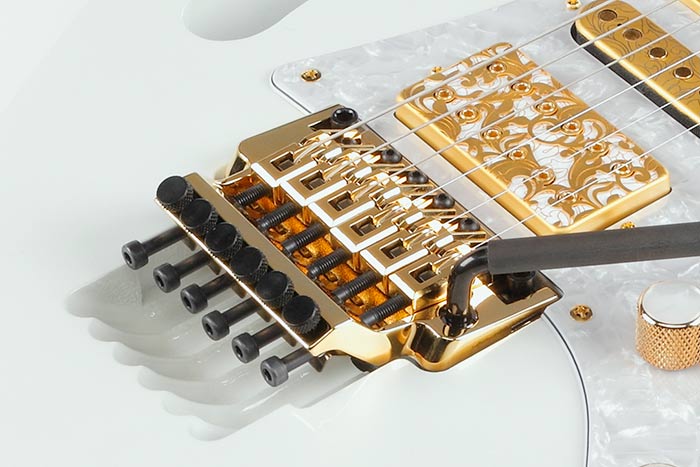

Edge Tremolo

Edge Tremolo

The Edge tremolo bridge and groundbreaking Lion's Claw tremolo cavity allow for rapidly increasing and lowering pitch with dramatic range and an intense voice.

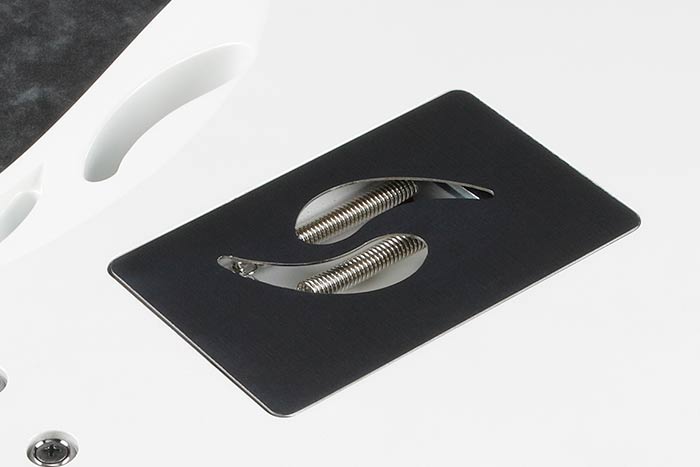

Magnetic Tremolo Cavity Plate

Magnetic Tremolo Cavity Plate

The tremolo cavity plate is held in place magnetically, allowing for quick removal and reinstallation when changing strings or adjusting the tremolo system.
