PGM1000T
SPEC
-
SPECS
- neck type
- PGM3pc Mapleneck-through
- top/back/body
- Ash wing body
- fretboard
- Ebony fretboardMother of Pearl dot inlay
- fret
- Jumbo fretsj.custom fret edge treatment
- number of frets
- 22
- bridge
- Gotoh® GTC101 bridge
- string space
- 10.5mm
- neck pickup
- DiMarzio® Air Classic™ (H) neck pickupAlnico/Passive
- bridge pickup
- DiMarzio® Air Classic™ (H) bridge pickupAlnico/Passive
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL130
- string gauge
- .008/.010/.015/.021/.030/.038
- nut
- DURACON® nut
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 18.5mm at 1F
- d : Thickness
- 20.5mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is active. When the switch is between neck and center position, the neck and center pickups are active. When the switch is in center position, the center pickup is active. When the switch is between the center and bridge position, the center pickup and bridge pickup are active. When the switch is in bridge position, the bridge pickup is active.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way pickup selector switch close to the edge of the body. The volume knob is located near the end of the body.
-
OTHER FEATURES
Features

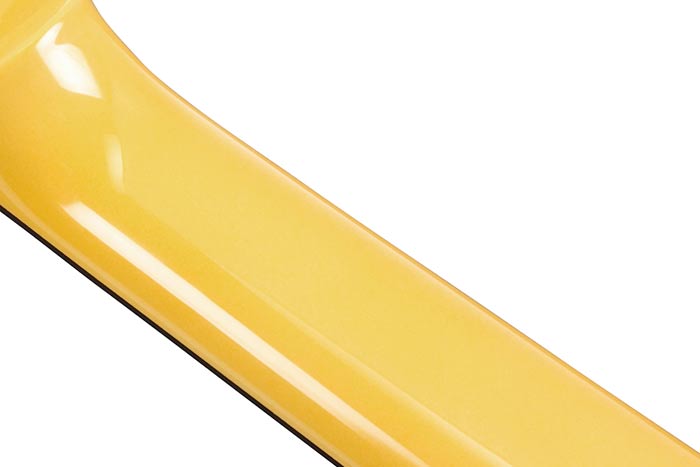

3pc Maple neck
A strong 3pc Maple neck provides an enriched resonance.

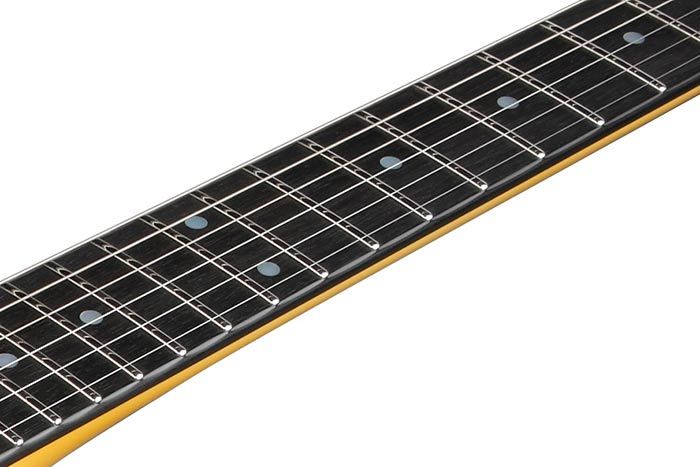

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

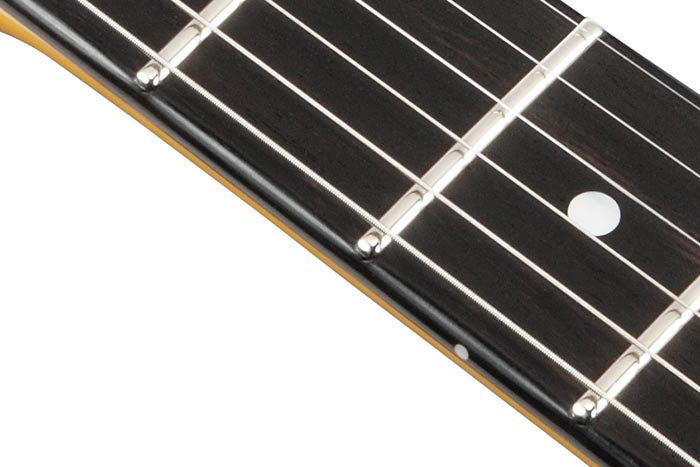

Jumbo frets with j.custom fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The j.custom fret edge treatment provides the ultimate smooth touch around every single fet.

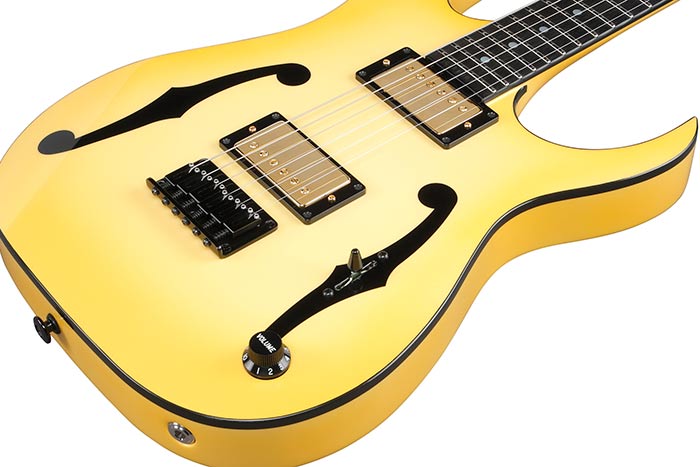

Ash wing body
The Ash body delivers a pleasant brightness and rich sustain.

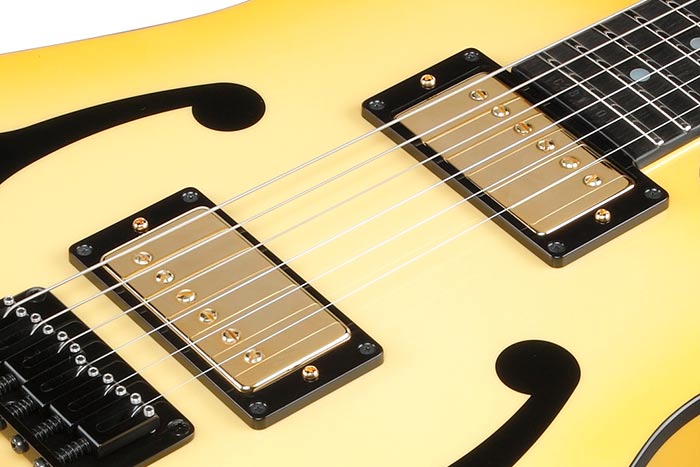

DiMarzio® Air Classic™ pickups
DiMarzio® Air Classic™ pickup combining vintage voicing with modern technology delivers an incredible touch-sensitive sound.

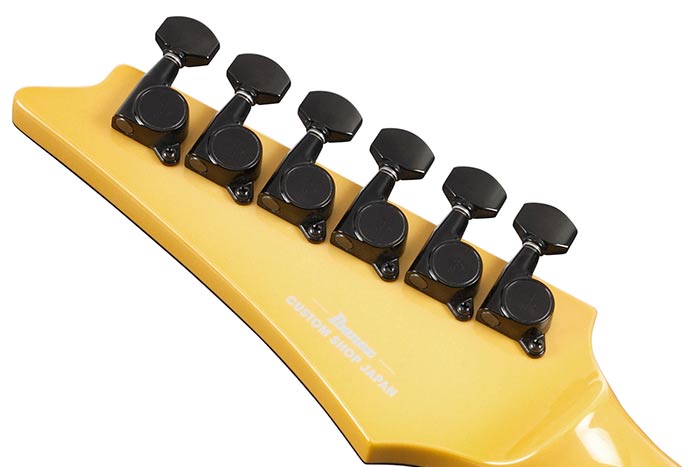

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

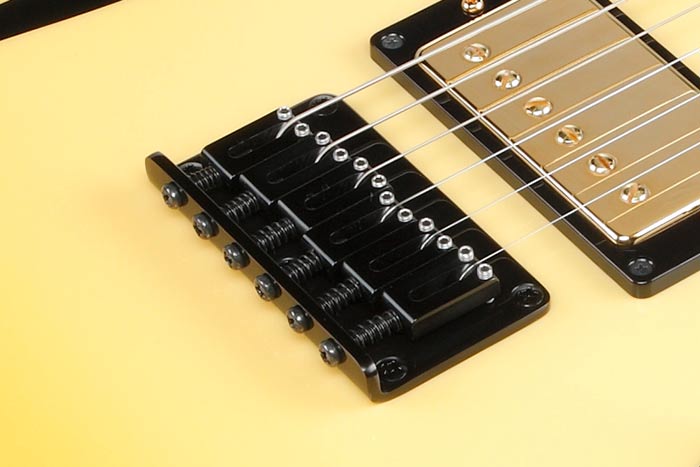

Gotoh® GTC101 bridge
The Gotoh® GTC101 bridge equipped with six individual string saddles has superior intonation.

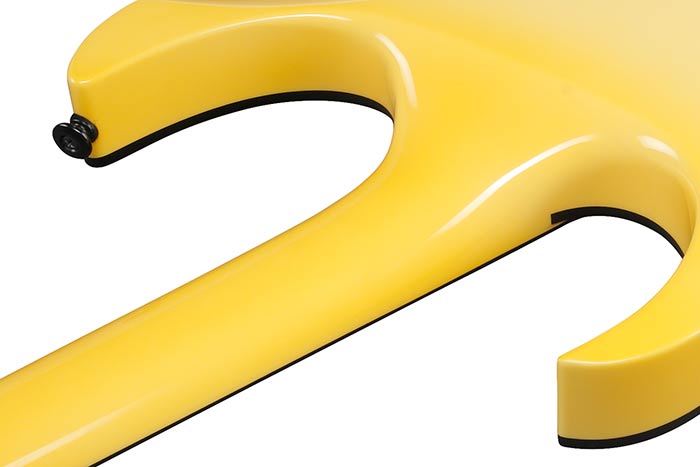

Neck-through construction
The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.
