JSM100
SPEC
-
SPECS
- neck type
- JSM African Mahoganyset-in neck
- top/back/side
- Figured Anigre top Figured Anigre backFigured Anigre sides
- fretboard
- Bound EbonyAcrylic & Abalone block inlay
- fret
- Jumbo fretsPrestige fret edge treatment
- number of frets
- 22
- bridge
- Gotoh® 510BN bridge
- string space
- 10.4mm
- tailpiece
- Gotoh® GE101A tailpiece
- neck pickup
- Super 58 (H) neck pickupPassive/Alnico
- bridge pickup
- Super 58 (H) bridge pickupPassive/Alnico
- factory tuning
- 1E, 2B, 3G, 4D, 5A, 6E
- string gauge
- .013/.016/.022/.032/.042/.052
- nut
- Half-Bone/Half-Brass nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.7"
- a : Width
- 43.5mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 20.2mm at 1F
- d : Thickness
- 23.3mm at 12F
- Radius :
- 184mm to 250mm COMPOUND
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 18 1/4"
- b : Width
- 15 3/4"
- c : Max Depth
- 2 5/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
-
OTHER FEATURES
- Recommended Bag
-
ISHB724-BK

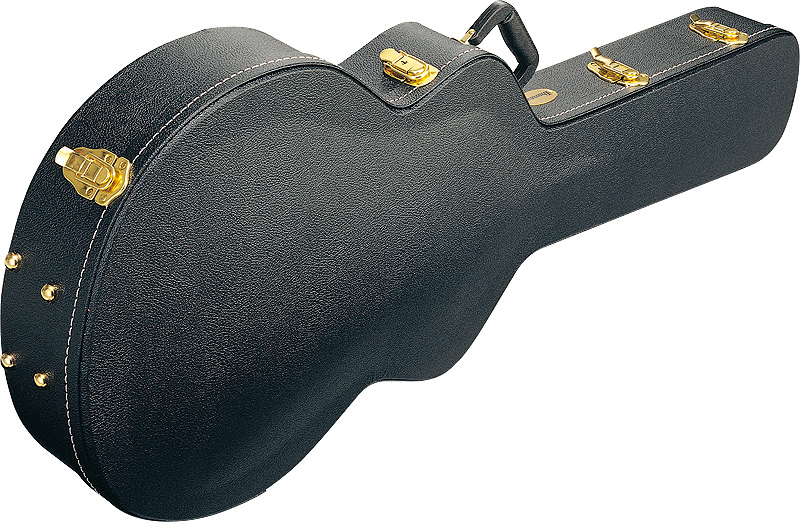

- Hardshell case included
Features
Figured Anigre top/back/sides
Figured Anigre features a beautiful wood grain which produces a rich mid range and smooth attack on high end.
Half-Bone/Half-Brass Nut
Classic Ibanez half-bone, half brass nut on the magical John Scofield Signature JSM100 provides a balance of highs and lows.
Gotoh® machine heads
Super 58 pickups
Super 58 pickups on John Scofield's Signature JSM100 produce classic, warm and versatile tones.
Compound Radius Neck
Best of both worlds: JSM100's digitized compound radius neck is built to enhance both smooth chording and upper fret lead work.
