- COLOR VARIATION：
- neck type
- JS3pc Maple/Bubinga neck
- Alder body
- Rosewood fretboardMother of Pearl dot inlay
- Medium fretsPrestige fret edge treatment
- number of frets
- Edge bridge
- string space
- neck pickup
- SUSTAINIAC® Driver neck pickup
- bridge pickup
- DiMarzio® Satchur8™ (H) bridge pickupPassive/Alnico
- factory tuning
- D'Addario® EXL120
- string gauge
- Locking nut
- hardware color
- Scale :
- a : Width
- 42.8mm at NUT
- b : Width
- 56.4mm at 21F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22.3mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
When the tone knob is pulled up, the Susutainiac is on. When the tone knob is down, the Susutainiac is off. When the Sustainiac is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in center position, both the neck pickup and the bridge pickups are selected. When the switch is in bridge position, the bridge pickup is selected. When the Sustainiac is activated, whichever position the switch is in, the neck and bridge pickups are selected and the Sustainiac is affecting the sound of the neck pickup.
With the guitar held in the playing position, there are two switches along the lower edge of the body. The switch closest to the knee cutout is the three-way pickup selector switch, and the switch closest to the end of the body is the three way sustainicac switch. When the sustainiac switch is in neck position, the sustainiac is in normal mode, when the switch is in center position, the susutainiac is in mix mode, and when the switch is in bridge position, the sustainiac is in harmonic mode. There are two knobs towards the center of the guitar. The knob closest to the end of the body is the tone knob, and the knob closer to the neck is the volume knob. The tone knob also functions as a sustainiac on/off switch, while the volume knob also works as a high pass filter switch. They are both engaged by pulling up on the knob.
- Recommended Bag
- Gotoh® machine heads
- Hi-pass filter on volume control (push/pull)
- Sustainiac switch on tone control (push/pull)
- 3-way mini switch for Sustainiac mode select
- Hardshell case included
- Ultralite Tremolo Arm™ included

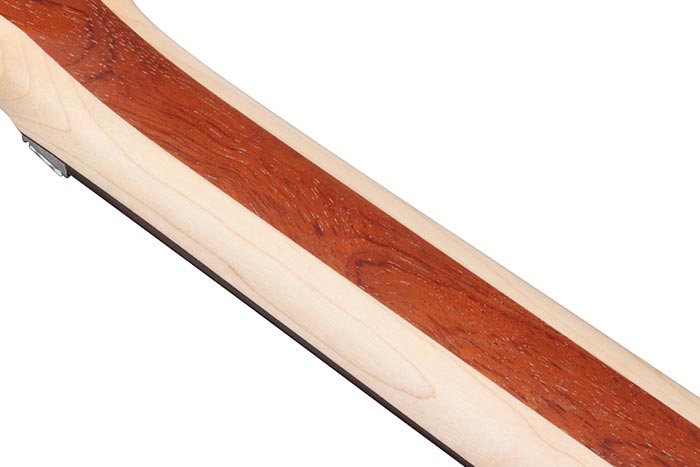

3pc Maple/Bubinga neck
The Bubinga stripe provides stability and longer sustain.

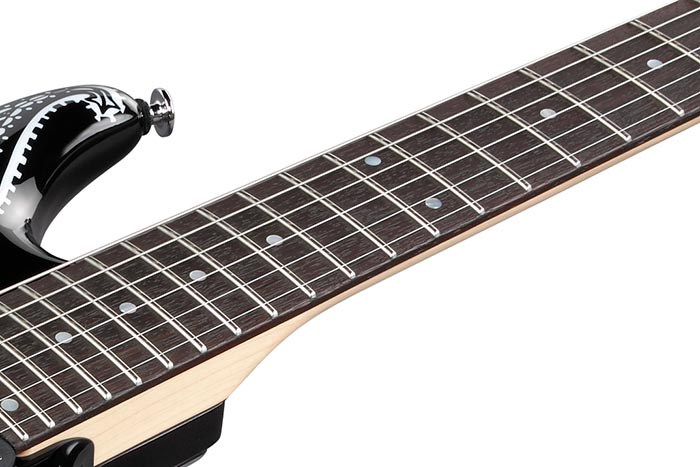

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

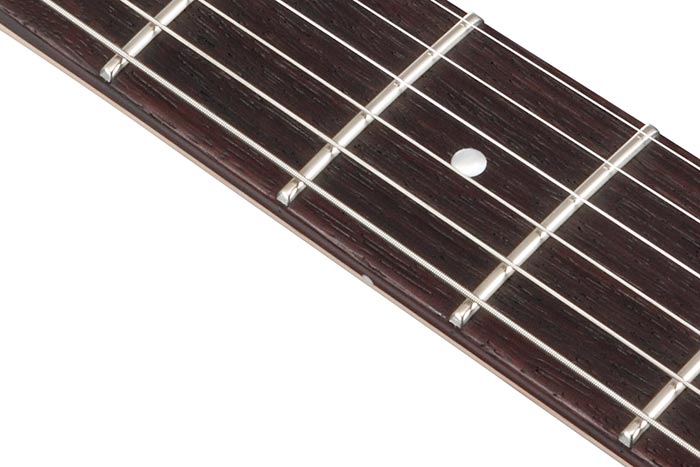

Medium frets with Prestige fret edge treatment
Medium sized frets enhance the accuracy of your notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

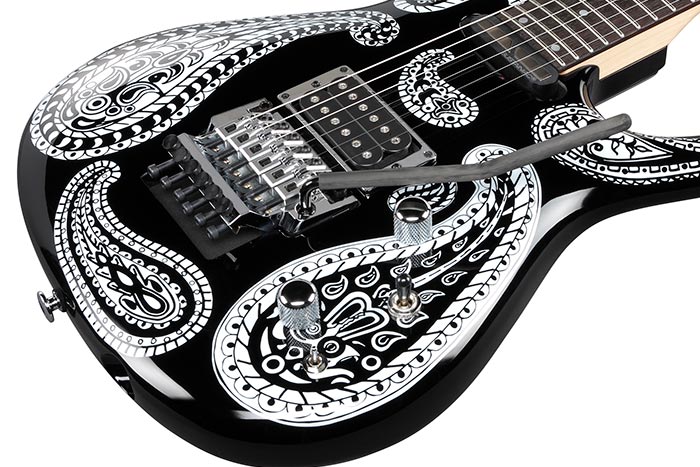

The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

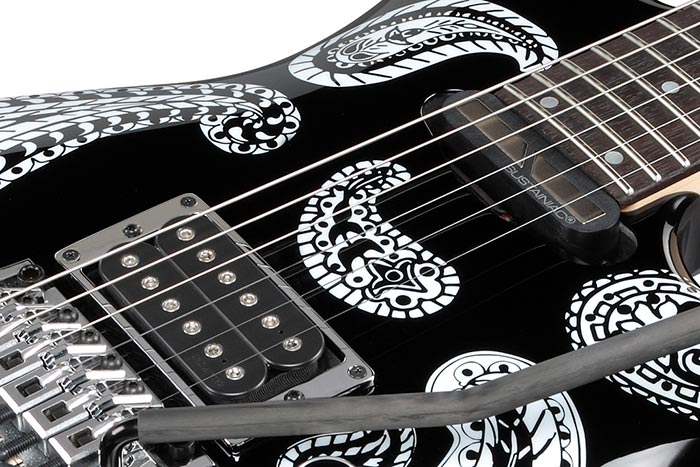

SUSTAINIAC® Driver / DiMarzio® Satchur8™ pickups
The SUSTAINIAC® Driver in the neck position is wired to "Stealth PRO" preamp specially customized for Joe. It allows endless sustain and expands the range of expression dramatically with a 3-way Sustainiac mode selector. DiMarzio® Satchur8™ pickup fully supports Joe's versatile playing style and massive sound.

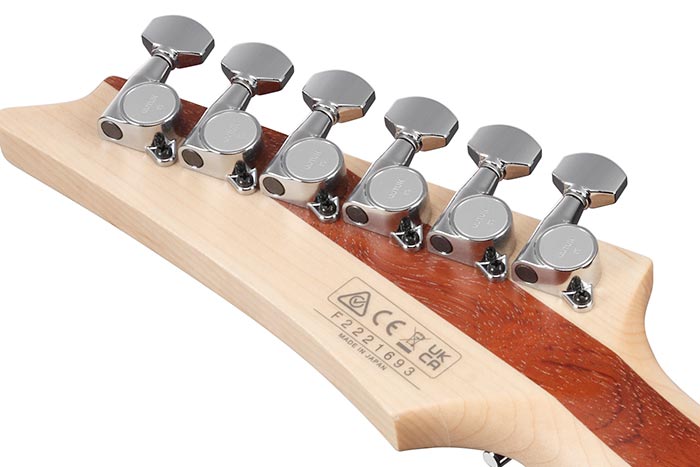

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

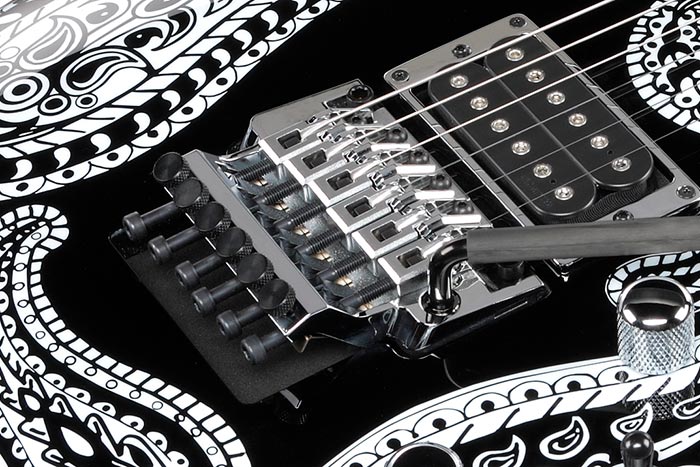

The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.
3-way mini switch for Sustainiac mode select
Normal: Sustains the fundamental tone. Mix: Sustains the fundamental and overtone. Harmonic: Sustains the overtone.
High-Pass filter on volume control
A high pass filter on the volume pot maintains highs at low volumes.
Sustainiac switch on tone control (push/pull)
Activate the Sustainiac switch and get an endless ringing note.
