- BSN : Black Satin Top, Natural High Gloss Back and Sides
- COLOR VARIATION：
- body shape
- Asymmetrical Jumbo body
- Thermo Aged™ Spruce Modified X-M Bracing
- Thermo Aged™ Solid Sitka Spruce top
- back & sides
- Solid Pau Ferro back & Solid Pau Ferro sides
- JGMAfrican Mahogany/Pau Ferro 5pc neck
- Macassar Ebony fretboard
- Macassar Ebony top loading bridge
- body binding
- Macassar Ebony body binding with rounded body edge
- top board purfling
- soundhole rosette
- Specially Designed Wooden
- tuning machine
- Chrome Die-cast tuners(18:1 gear ratio)
- nut material
- number of frets
- saddle material
- Compensated Bone
- D'Addario® XTAPB1256
- string gauge
- string space
- factory tuning
- Fishman® Rare Earth Mic Blend Active Soundhole, Tap
- Fishman® PowerTap Earth Blend preamp
- output jack
- Dual Outputs (2 endpin jacks - 1 stereo/mono output capability built in (with strap button) - 1 mono flush mount)
- Scale :
- a : Width
- 45mm at NUT
- b : Width
- 60mm at 14F
- c : Thickness
- 20.5mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
- a : Length
- 20 7/8"
- b : Width
- 17 "
- c : Max Depth
- 4 7/8"
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
With the guitar held in the playing position, there is a knob affixed to the pickup assembly, which controls the output balance between the microphone and magnetic pickup. When turned fully counterclockwise, the output is coming the pickup only, in the middle position, the output is an equal blend of the pickup and microphone. When turned clockwise, the output is coming from the microphone only. Slightly below the pickup is a switch that controls the low frequencies of the microphone. When the switch is the up position, the low frequency range of the microphone is cut. When the switch is the down position, the low frequency range of the microphone output is neutral.
- Recommended Bag
- Fiberglass case included
- Luminlay side dots

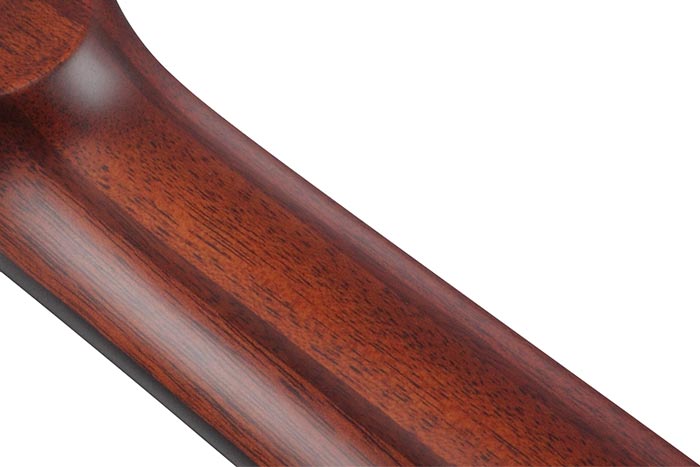

5pc African Mahogany/Pau Ferro neck
The African Mahogany and Pau Ferro 5pc neck has enhanced durability.

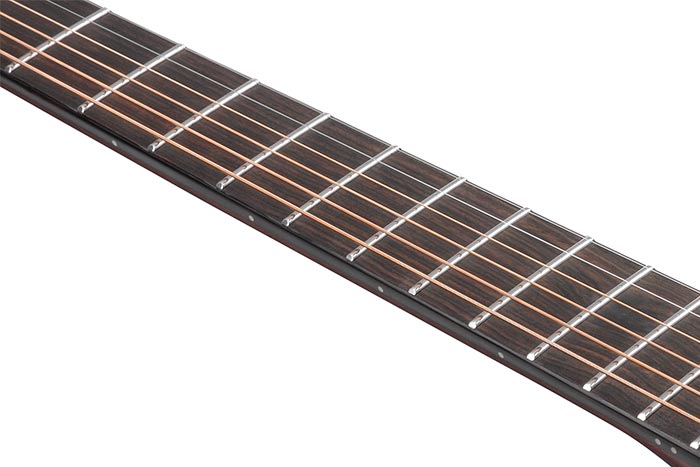

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

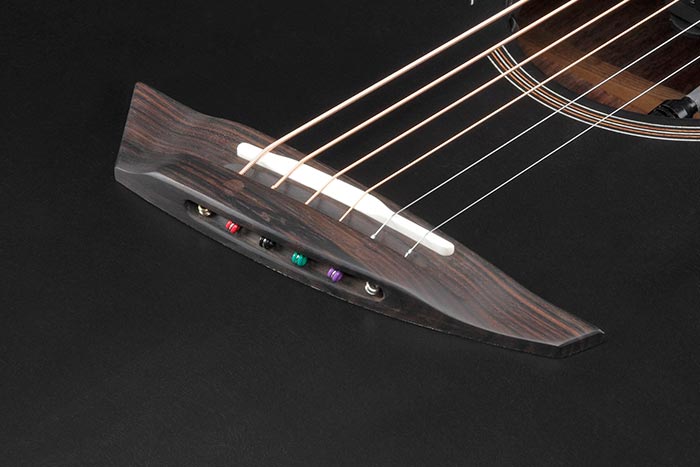

Macassar Ebony top loading bridge
For a better percussive sound, the Macassar Ebony bridge features a top loading system without a bridgepin. It also offers a fast and easy method for string changes.

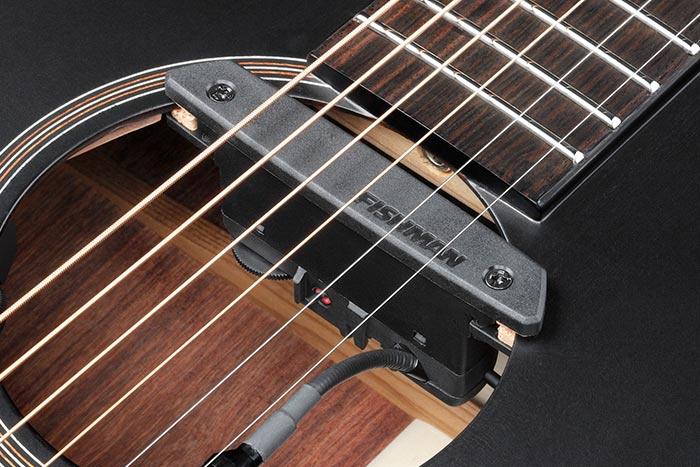

Rare Earth Mic Blend Active Soundhole pickup, Tap pickup
The combination of Fishman Rare Earth Mic Blend Active Soundhole pickup and Tap pickup offers a warmer, more natural acoustic tone with clarity of sounds.

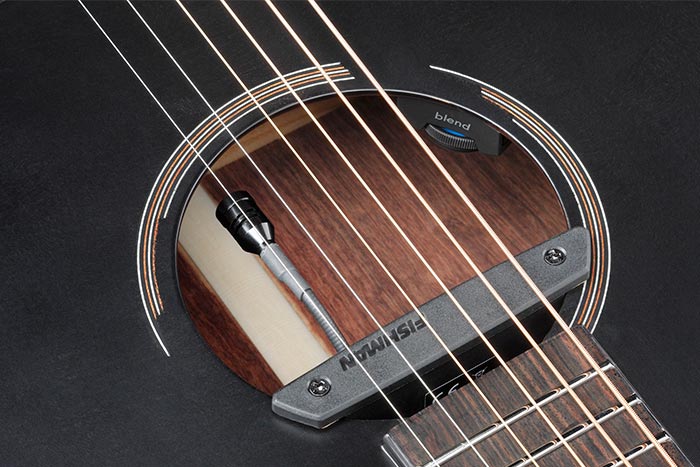

PowerTap Earth Blend
Blending the Rare Earth Mic Blend Active Soundhole pickup with Tap pickup, Fishman PowerTap Earth Blend system allows the guitar to capture the string vibration through the whole body and neck, which provides a rich acoustic tone and a dynamic percussive sound from the body and neck.

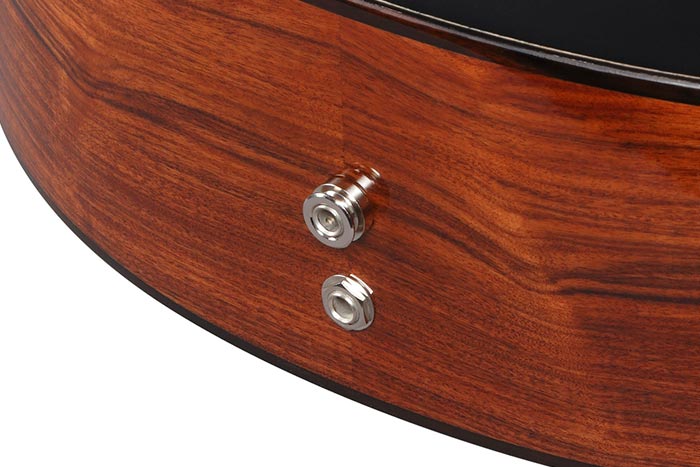

Dual Outputs (Magnetic pickup/Contact pickup/Microphone outputs)
Plugged into the endpin jack only: Magnetic pickup + Contact pickup + Microphone with mixed output
Plugged into both the endpin jack and the mono flush mount endpin jack: Magnetic pickup, Contact pickup and Microphone running independently. (a TRS to TRS cable or a TRS to stereo ”Y” cable should be used). Endpin Jack = Magnetic pickup, Microphone output, Mono flush mount endpin jack = Contact pickup output

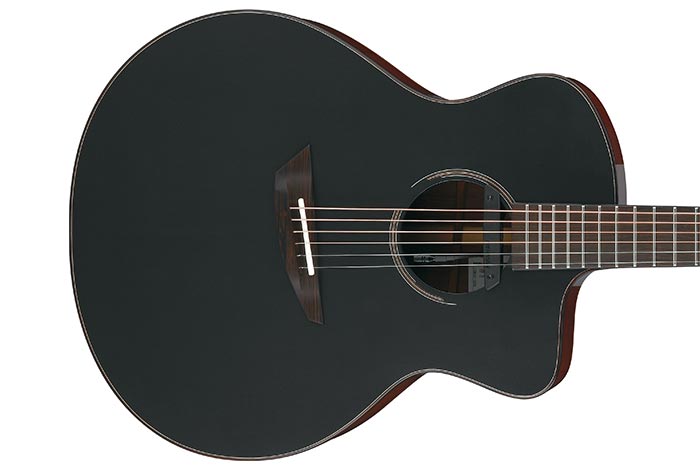

Asymmetric jumbo body
Developed for modern fingerstyle players, the asymmetric jumbo body features a low-end focused sound and tapping friendly shape

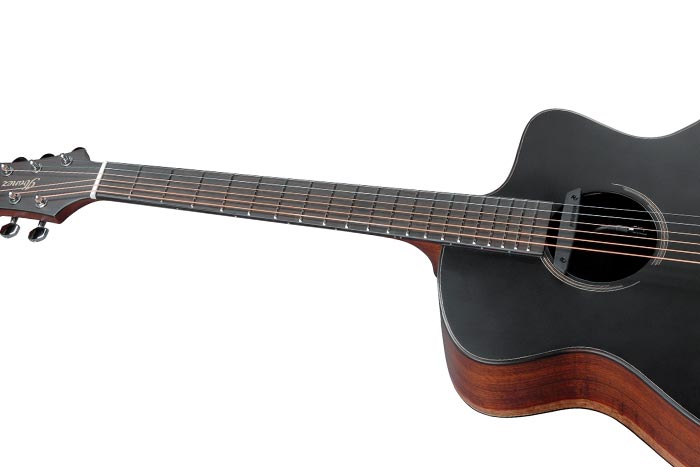

25 3/4 inch scale
A 25 3/4 inch scale helps to maintain proper tension and pitch even while down tuning, a technique modern finger players often utilize. This scale-length also delivers improved sustain.

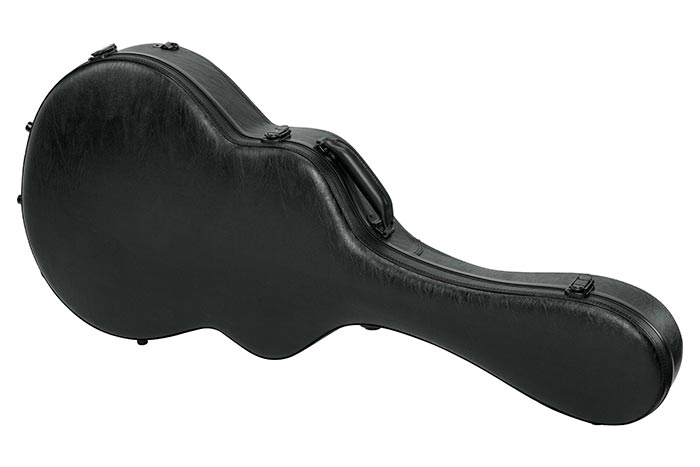

Fiberglass case included
The Ibanez fiberglass case offers extreme protection for your instrument.

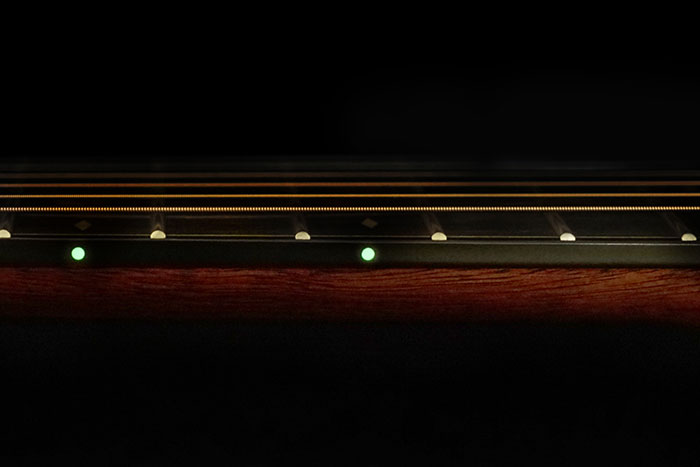

Luminescent Side Dot Inlays
Luminescent side dot inlays line the side of the neck for more easily navigating the fretboard in low light environments.
