- VWM : Vintage White Matte
- COLOR VARIATION：
- neck type
- Wizard C3pc Roasted Maple/Bubinga neck
- Nyatoh body
- Roasted Birdseye Maple fretboardMother of Pearl Step off-set dot inlay
- Jumbo Jescar EVOgold™ frets
- number of frets
- Ibanez Mono-Tune bridge
- string space
- neck pickup
- R1 (S) neck pickupPassive/Ceramic
- middle pickup
- R1 (S) middle pickupPassive/Ceramic
- bridge pickup
- R1 (S) bridge pickupPassive/Ceramic
- factory tuning
- D'Addario® EXL110
- string gauge
- hardware color
- Satin Chrome
- Scale :
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
When the alter switch is in neck position, two-hum tap mode is engaged. When the alter switch is in bridge position, two-hum tap mode is disengaged. Pickup selection when two-hum tap mode is disengaged: The pickup selector switch in neck position engages the neck pickup. When the pickup selector switch is between the neck and center positions, the neck pickup and the center pickup are engaged. When the pickup selector is in center position, the center pickup is engaged. When the pickup selector is between the center and bridge positions, the center pickup and the bridge pickup are engaged. When the pickup selector is in bridge position, the bridge pickup is engaged. Pickup selection when two-hum tap mode is engaged: The pickup selector in the neck position engages the neck and center pickups in series. When the pickup selector is between the neck and center positions, the neck and center pickup are engaged. When the pickup selector is in the center position, the neck and bridge pickups are engaged. When the pickup selector is between the center and bridge positions, the center and bridge pickups are engaged. When the pickup selector is in the bridge position, the center and bridge pickups are engaged in series.
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.
- Recommended Case
- Gig bag included
- dyna-MIX8 switching system w/Alter Switch
- Ibanez Custom String Lock
- Luminescent side dot inlay
Wizard C 3pc Roasted Maple/Bubinga neck
To meet the demand of various playing styles, this Wizard C neck has a very neutral shape – it’s not too thick, too thin, or too flat. The 3pc Roasted Maple/Bubinga construction also offers great stability and long-term durability.

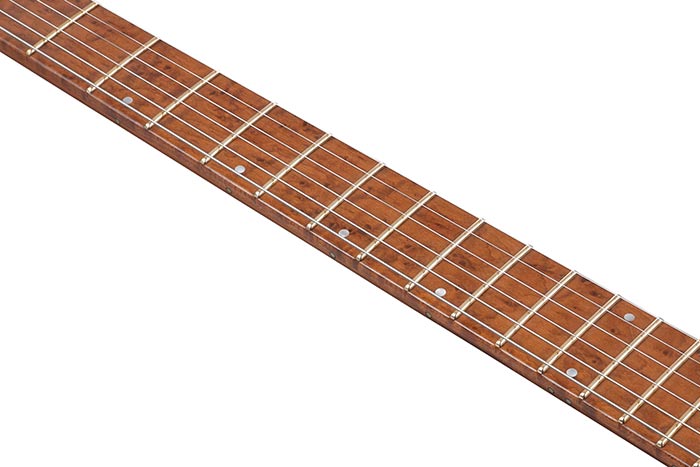

Roasted Birdseye Maple fretboard
The beautiful Birdseye Maple fretboard imbues this model with an exotic appearance. The fretboard is heat-treated for a balanced attack and rich sustain.

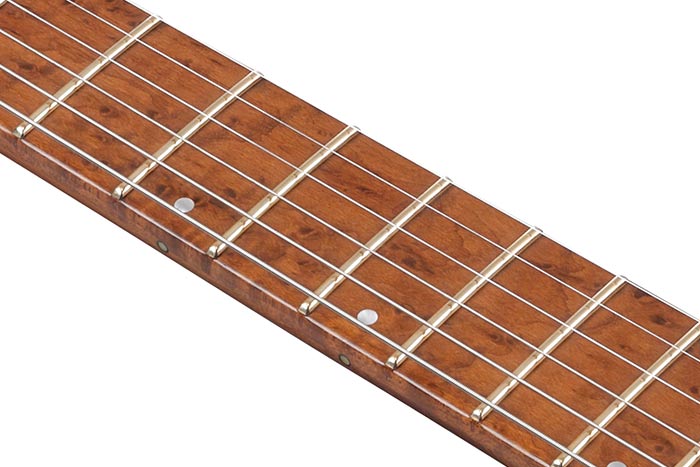

Jescar EVOgold™ frets
Jescar EVOgold™ frets are known for their bright tone, gorgeous appearance, and excellent features such as long-lasting durability and smooth note bending.
Nyatoh used as the body wood provides a rich mid-low end.

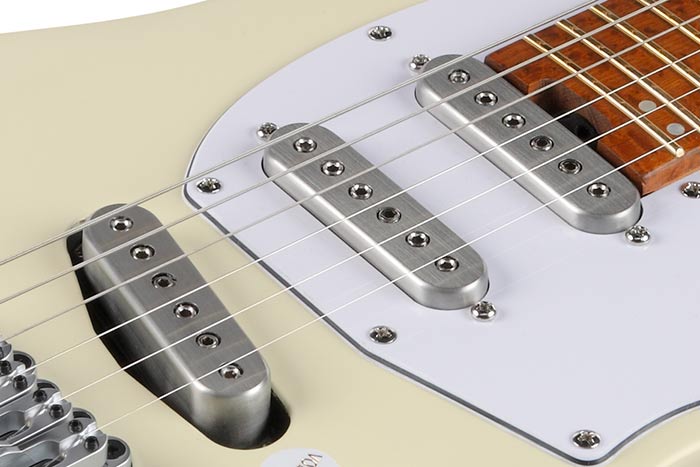

R1 S-S-S pickups
Our new R1 pickups are designed specifically for use in headless guitars. They provide a clearly defined sound, facilitating excellent tonal balance through all frequencies. The lows are powerful without being muddy, and the highs are bright and clear, but never harsh. As a result, every single note within the chord structure is well defined, and clearly audible. These pickups, with their tonal balance, and extremely low noise performance, work extremely well with both digital and analog effects.

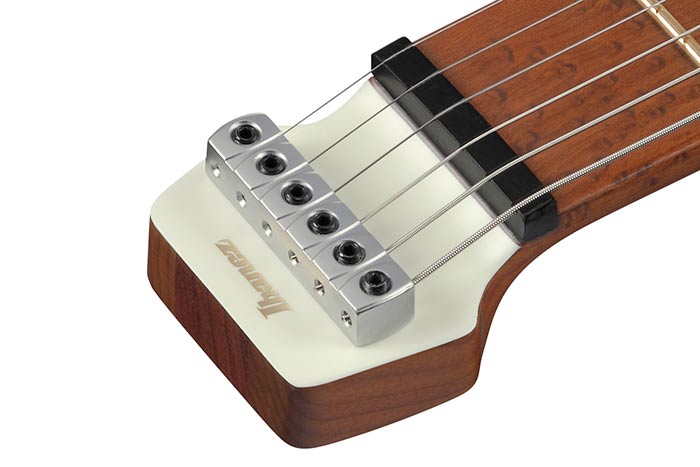

Custom string lock
This custom string lock is one-piece unit that features very simple construction. This means the hardware requires less maintenance, is highly durable, and allows for very easy string changes. Additionally, no proprietary string is required, so you can continue to use your favorite gauge and brand.
The Mono-Tune bridges offer a wide intonation range so that you can easily set the instrument up for tuning down a whole step or even further. The string height is also easily adjustable, and each saddle generally has less material, which leads to more natural and organic tone.
dyna-MIX8 switching system with Alter Switch
The dyna-MIX 8 offers eight sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. It even simulates a humbucking sound from the combination of two single coil pickups.

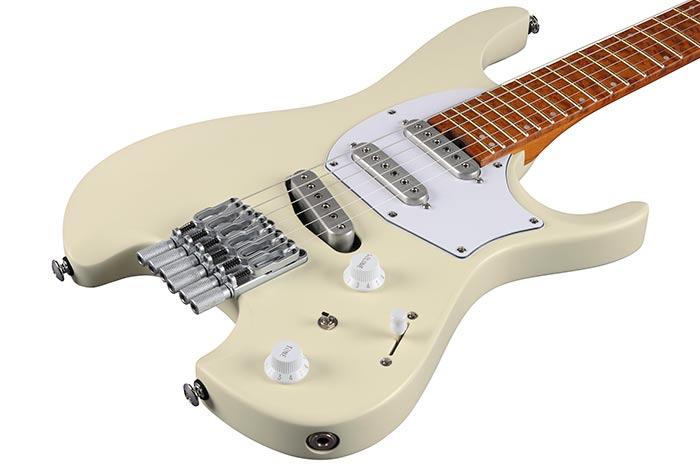

Ergonomic body design
The body features a number of strategically placed curves on both the top and back of the instrument. This complex, yet sophisticated design provides maximum playing comfort.
Compact and light-weight, yet resonant body
While it is really compact and light-weight, its non-chambered, solid body provides great sound with rich woody tones.
