APEX30-MGM
  • MGM : Metallic Gray Matte
  • COLOR VARIATION:
APEX

SPEC

  • SPECS

    • neck type
    • Wizard II-73pc Maple neck
    • top/back/body
    • Maple topNyatoh body
    • fretboard
    • Ebony fretboard
    • fret
    • Jumbo frets
    • number of frets
    • 24
    • bridge
    • Evertune bridge
    • string space
    • 10.3mm
    • neck pickup
    • DiMarzio® Blaze™ (H) neck pickupPassive/Ceramic
    • bridge pickup
    • DiMarzio® Blaze™ (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1D,2A,3F,4C,5G,6D,7A
    • strings
    • D'Addario® EXL110+.054
    • string gauge
    • .010/.013/.017/.026/.036/.046/.054
    • hardware color
    • Black
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 48mm at NUT
      • b : Width
      • 68mm at 24F
      • c : Thickness
      • 19mm at 1F
      • d : Thickness
      • 21mm at 12F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    APEX30's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    APEX30's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the three-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Gotoh® machine heads
    • Luminescent side dot inlay

Features

Ebony fretboard

Ebony fretboard

Ebony produces a tight low and mid range with an iconic attack on the high end. It also features a quick response and rich sustain.

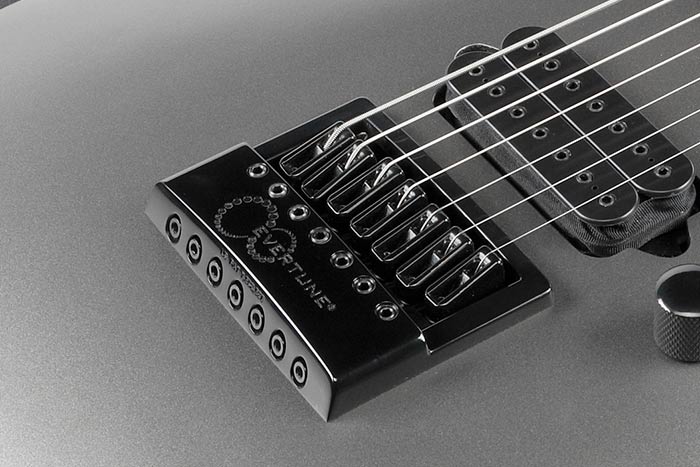

EverTune bridge

EverTune bridge

EverTune bridge system keeps the guitar in tune under any conditions.

Luminescent side dot inlays

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
